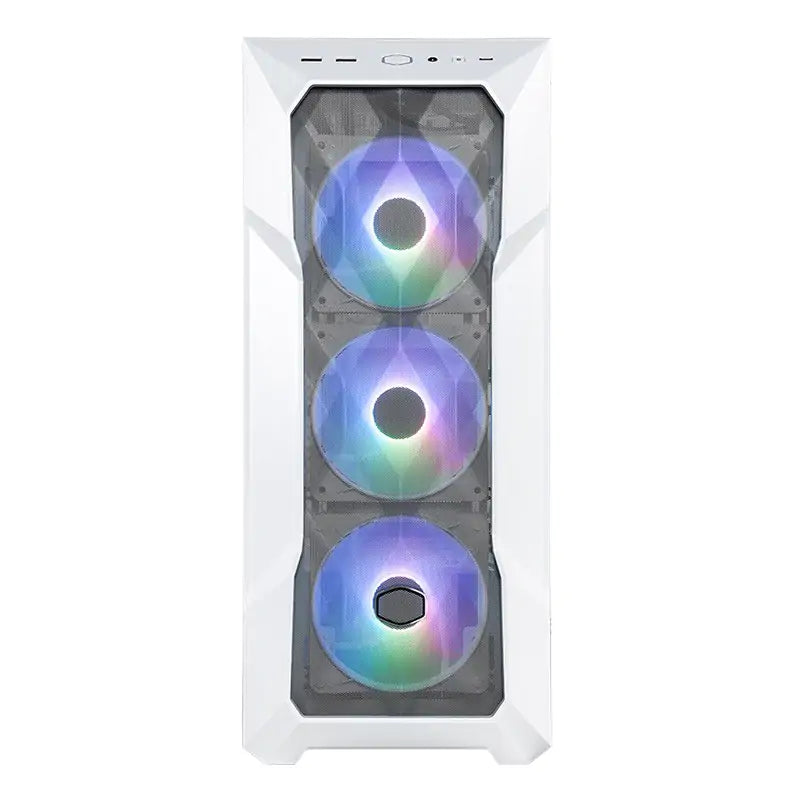

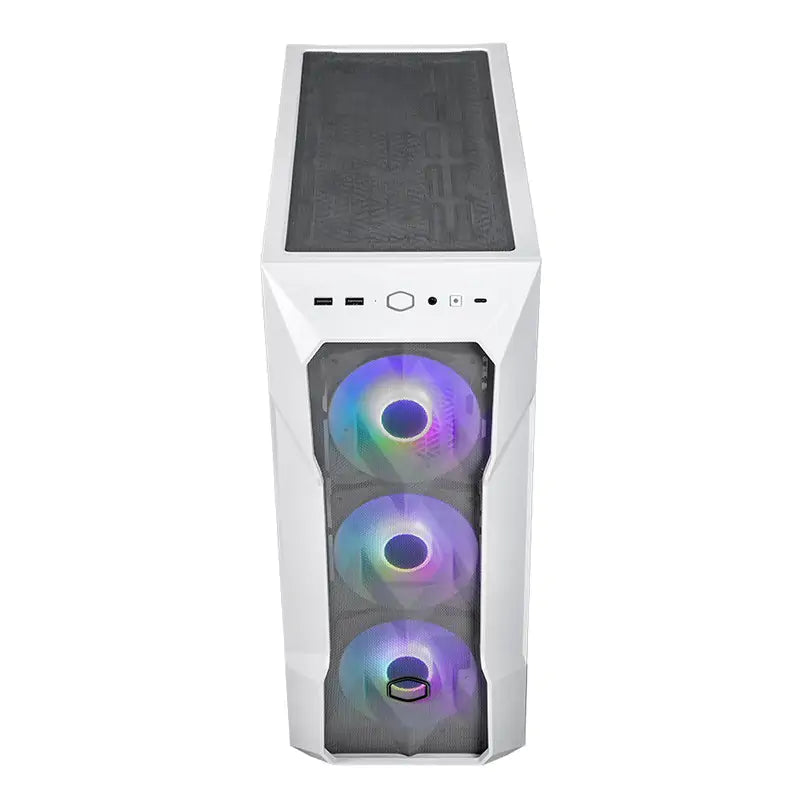

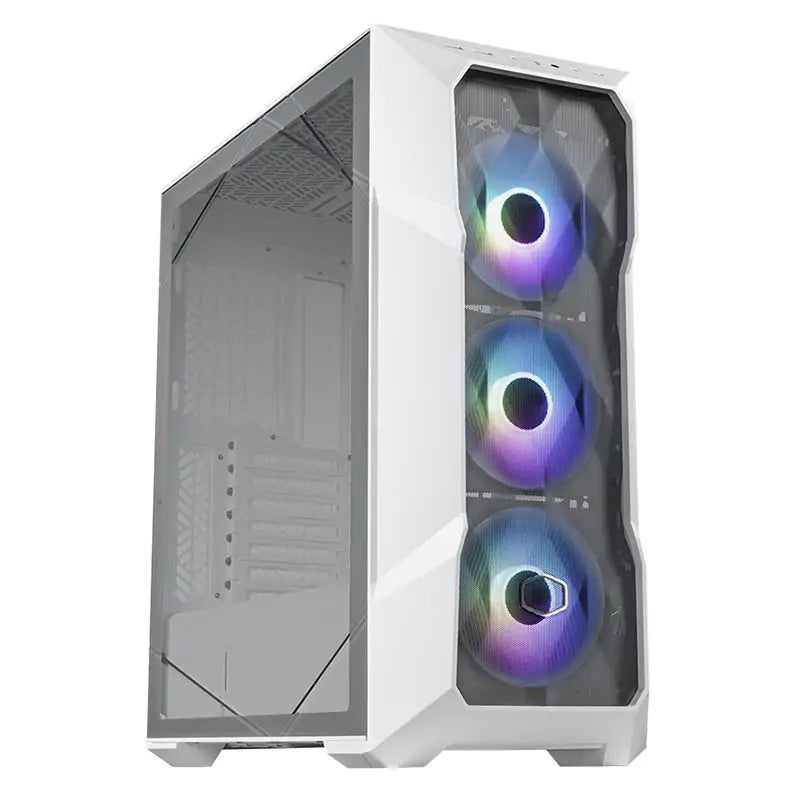

FINEMESH PERFORMANCE FRONT PANEL
Polygonal FineMesh features a 3D contour and is also capable of simultaneously providing high airflow and dust filtration.
USB 3.2 GEN 2 TYPE C SUPPORT
USB 3.2 Gen 2 Type C port built into the I/O panel allows multi-purpose, streamlined data transmission.
THREE CF120 ARGB FANS INCLUDED
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.
ARGB/FAN HUB INCLUDED
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

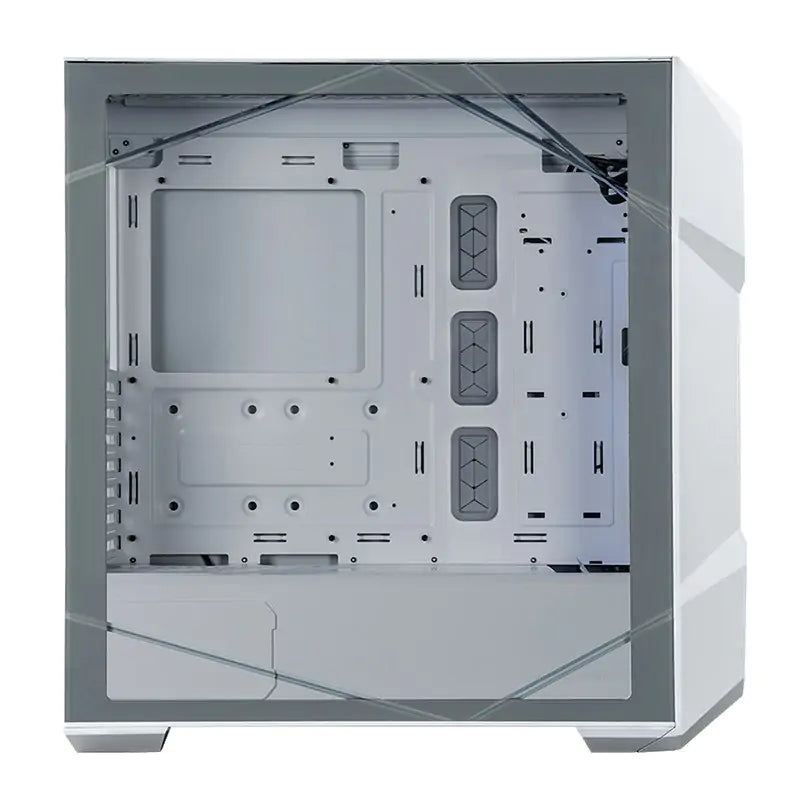

TOOL-FREE CRYSTALLINE TG SIDE PANEL
Featuring a crystalline tempered glass side panel, completely toolless for quick access to the internals.
REMOVABLE TOP PANEL
The top panel is entirely removable for improved access during assembly and ease of mounting of cooling solutions.
PSU SHROUD WITH REMOVABLE COVER
MasterBox TD500 Mesh V2’s removable PSU cover allows users to freely decide whether to showcase or keep their PSUs hidden.

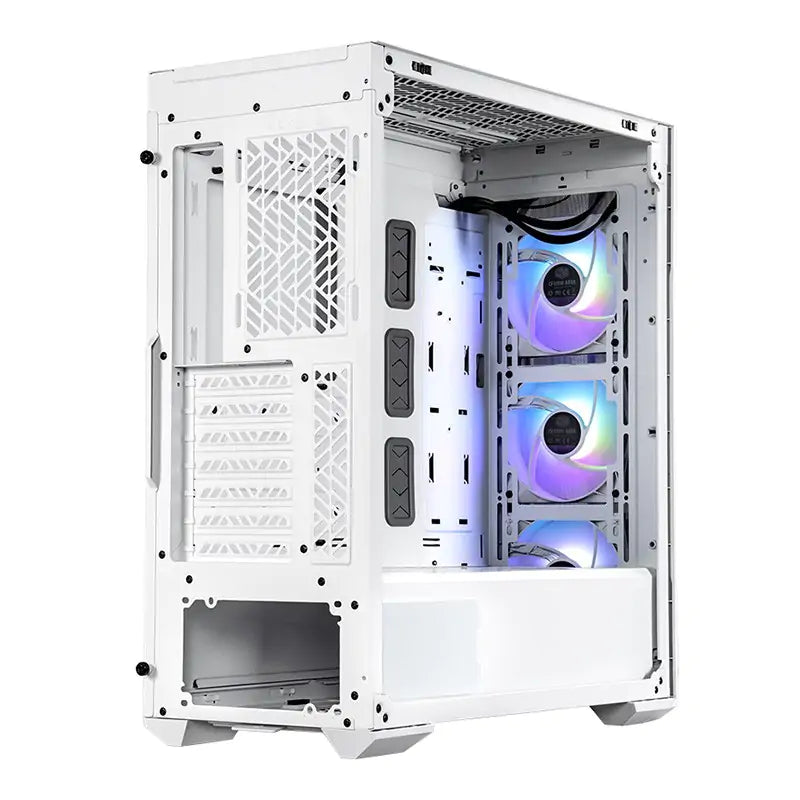

VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and 360mm front and top radiator support ensure that performance is not compromised.
HARDWARE COMPATIBILITY
MasterBox TD500 Mesh V2 is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12" x 10.7".
TD500V2-WGNN-S00
White
Steel, Mesh, Plastic
Tempered Glass
499 x 210 x 500mm (incl. Protrusions)
430 x 210 x 477mm (excl. Protrusions)
50L (excl. Protrusions)
Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature)
7
2
3
2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 Type C
1x Audio Jack
1x ARGB Fan Hub
3x 120mm CF120 ARGB
3x 120mm, 2x 140mm
3x 120mm, 2x 140mm
1x 120mm
120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
120mm, 140mm, 240mm, 280mm, 360mm
120mm
165mm
200mm, (Recommended up to 170mm)
410mm
19mm
Front, Top, Bottom
Bottom Mount, ATX
2 years
MasterBox Series
Mid Tower
