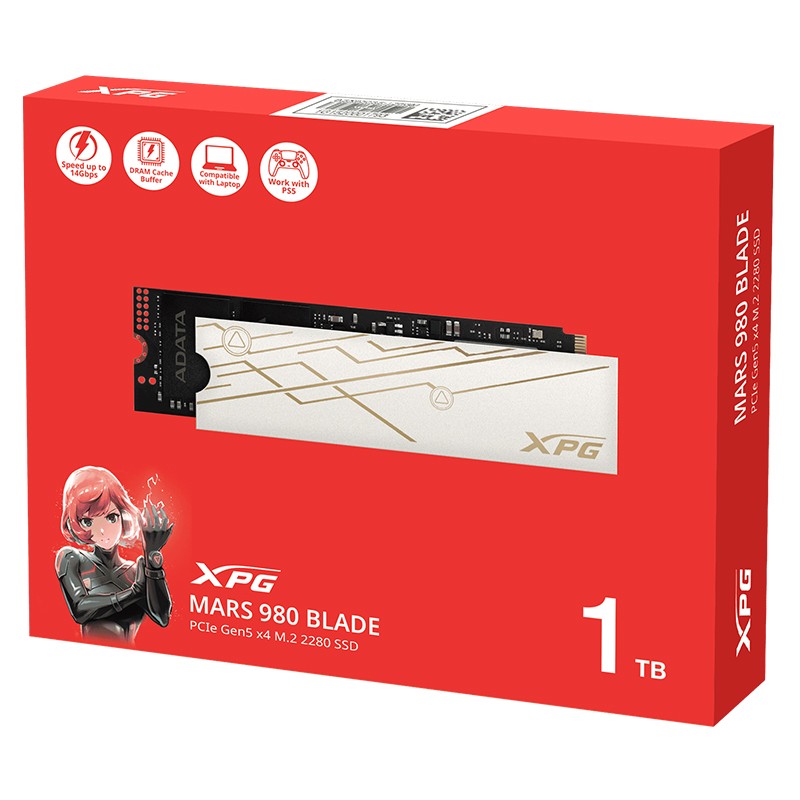

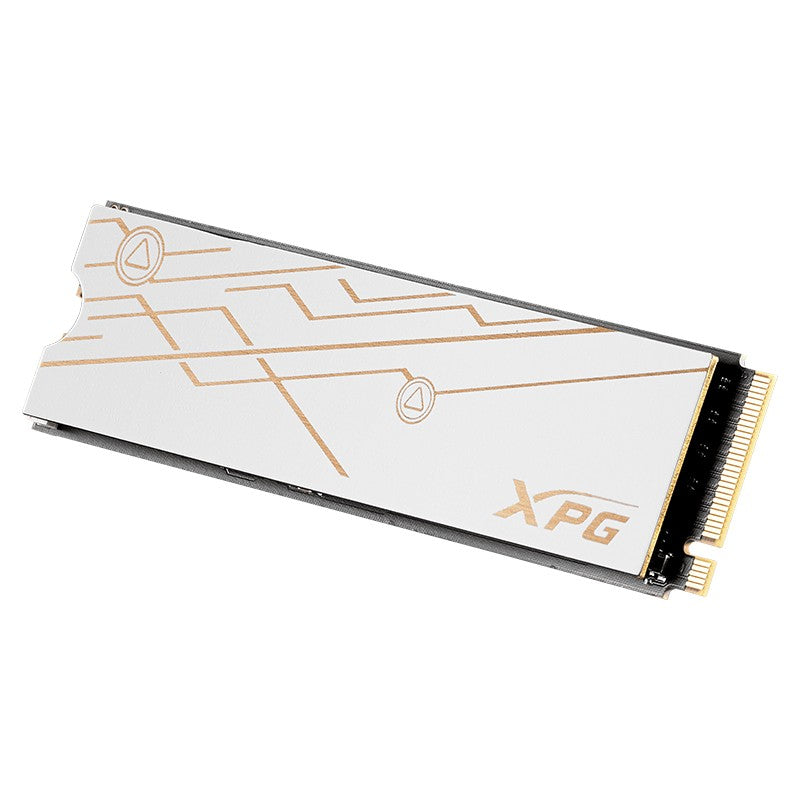

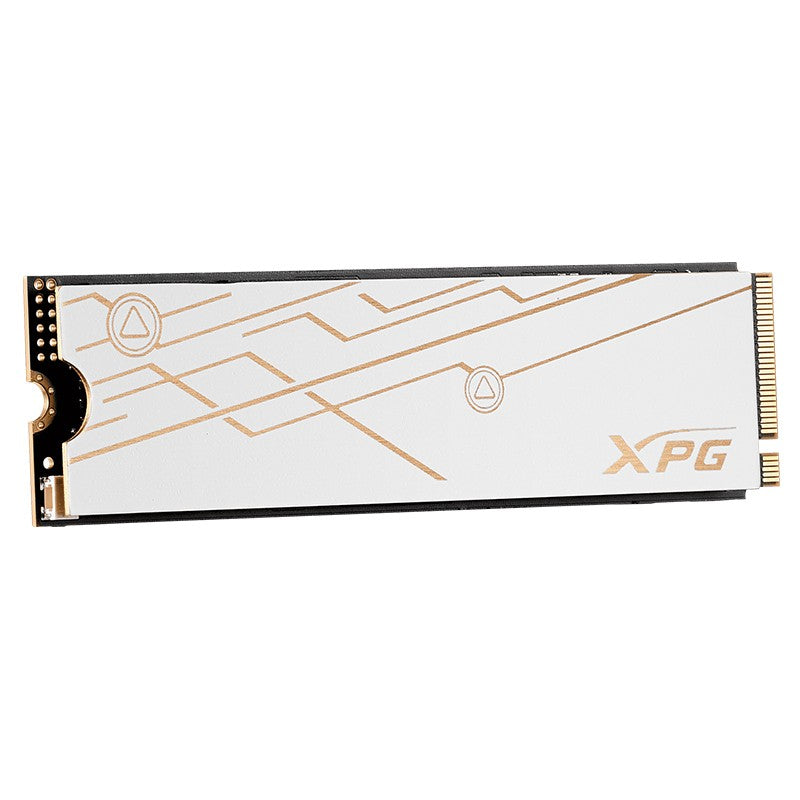

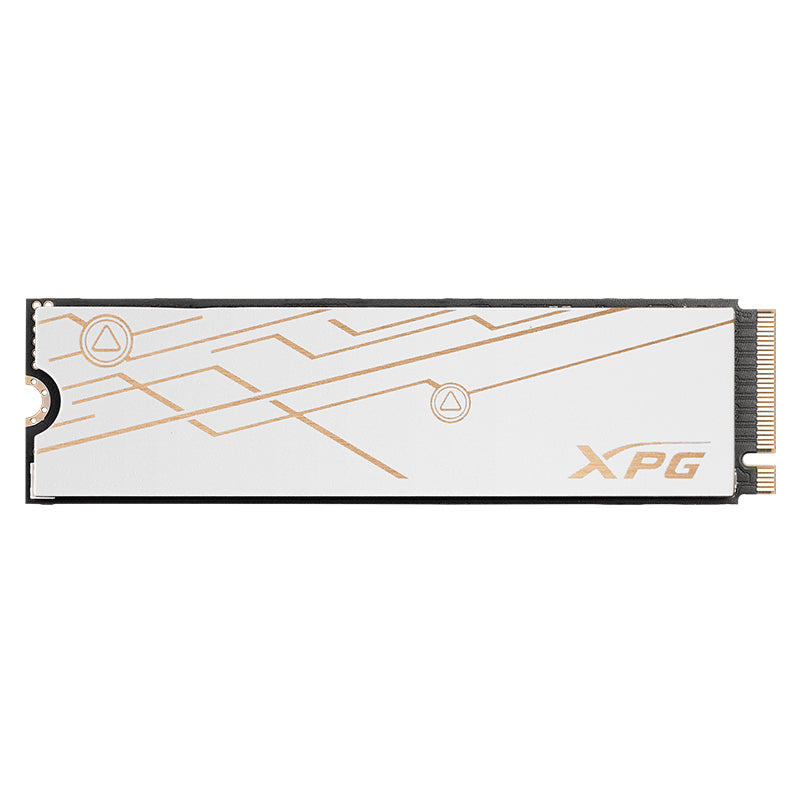

ADATA 1TB SMAR-980B-1TCS Mars 980 Blade PCIe 5.0 NVMe M.2 2280 SSD

Form Factor

M.2 2280

NAND Flash

3D NAND

Controller

SM2508

Dimensions (L x W x H)

80 x 22 x 4.5mm / 3.15 x 0.87 x 0.18 inch (w/ heatsink)

80 x 22 x 3.2mm / 3.15 x 0.87 x 0.13 inch (w/o heatsink)

Weight

12g / 0.42oz (w/ heatsink)

8g / 0.28oz (w/o heatsink)

Interface

PCIe Gen5 x4

Sequential Read

Up to 14,000MB/s (PC/Laptop)* Up to 6,500MB/s (PS5)*

Sequential Write

Up to 13,000MB/s*

4KB Random Read IOPS

2,000K

4KB Random Write IOPS

1,650K

Operating Temperature

0°C - 70°C

Storage Temperature

-40°C - 85°C

Shock Resistance

1,500G/0.5ms

MTBF

2,000,000 hours

Terabytes Written (TBW)

2,960TB**

Remark

* This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 5.0 to achieve optimal performance. Actual performance may vary depending on the hardware and software configurations.

* This product is backward compatible with   PCIe 4.0 and 3.0.

* Platform Information: M/B: ASUS ROG CROSSHAIR X670E HERO, CPU: AMD Ryzen 9 7950X3D 16-Core Processor 4.2GHz, BIOS Ver: 2604 x64, DRAM: DDR5 16GB*2 4800MHz, OS Ver: Windows 11 / 24H2

** The value is the minimum amount of terabyte written that could be reached.
