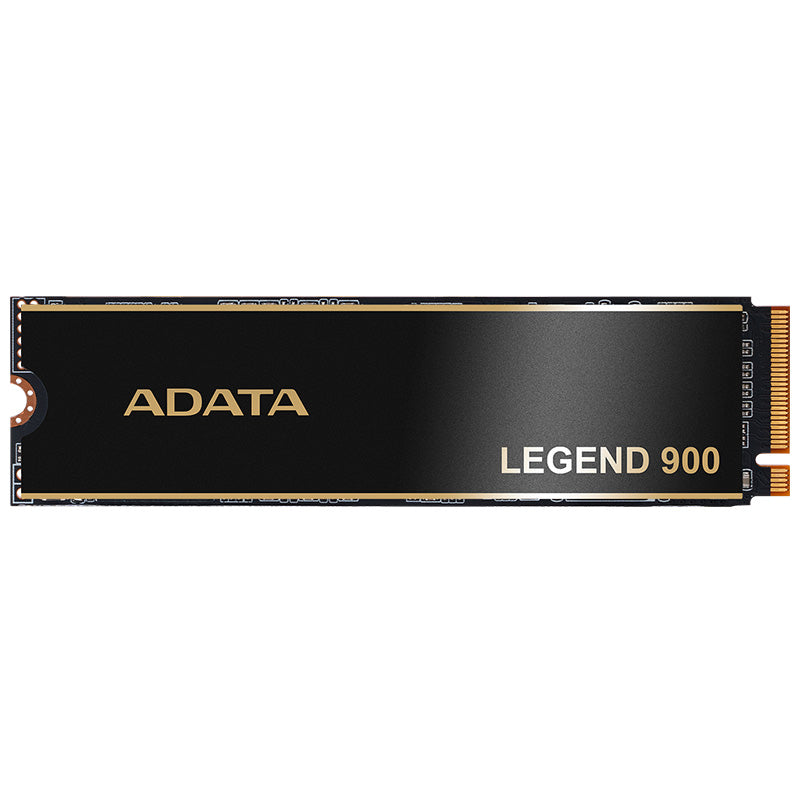

ADATA Legend 900 2TB PCIe Gen4x4 M.2 2280 SSD

Form factor

M.2 2280

NAND Flash

3D NAND

Dimensions (L x W x H)

80 x 22 x 3.35mm / 3.15 x 0.86 x 0.13inch (with heat sink)
80 x 22 x 2.05mm / 3.15 x 0.86 x 0.08inch (without heat sink)

Weight

10.6g / 0.37oz (with heat sink)
6.5g / 0.23oz (without heat sink)

Interface

PCIe Gen4 x4

Sequential Read (Max)

Up to 7,000MB/s (PC/Laptop)*, up to 6,200MB/s (PS5)

Sequential Write (Max)

Up to 5,400MB/s*

Operating temperature

0°C - 70°C

Storage temperature

-40°C-85°C

Shock resistance

1,500G/0.5ms

MTBF

1,500,000 hours

Terabytes Written (TBW)

1,200TB**

Notes

* Learn more about PS5 compatibility here.

* Download SSD Toolbox to obtain the latest Firmware version to optimize performance and obtain other value-added functions.

* This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 4.0 to achieve optimal performance. Actual performance may vary   depending on the hardware and software configurations.

* This product is backward compatible with PCIe   3.0. If a third-generation PCIe motherboard is used, this product will be   able to achieve sequential read/write speeds of 3400/3000MB per second.

* Test system configuration : M/B: MSI X570   Gaming Plus Max , CPU: AMD Ryzen 7 3700X 8-Core Processor 3.6GHz, RAM: ADATA   8G DDR4-2666MHz

** The value is the minimum amount of terabyte written that could be reached.

*** The SSD is based on the TBW or Warranty period. Visit https://www.adata.com/us/support/warranty/ for more details.
