ADATA XPG 850W Core Reactor II VE 80+ Gold Fully Modular ATX 3.1 Power Supply

Cybenetics Rating

GOLD

80 Plus Rating

GOLD

ATX Version

Intel ATX 12V v3.1

Protections

OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP

Certification

CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV /   TUV S-Mark / cTUVus

PFC

0.99

Input Voltage

100-240V

Input Current

12A

Input Frequency

47Hz-63Hz

DC Output Voltage

+5V | +3.3V | +12V | -12V | +5Vsb

Total Output

+5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A

Power Excursion

1997W (*up to 235% of the PSU's rated power for 100μs)

Operating Temperature

40°C

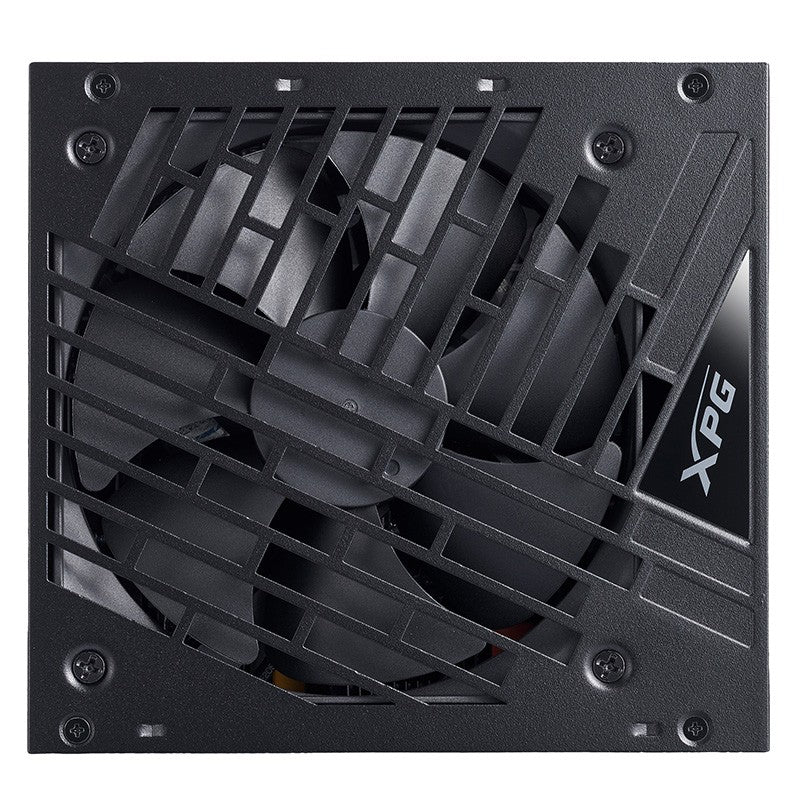

Fan Size

120mm FDB Fan

Fan Bearing

FDB (Fluid Dynamic Bearing)

Fan Speed

2400 RPM

MTBF

100K hours at full load

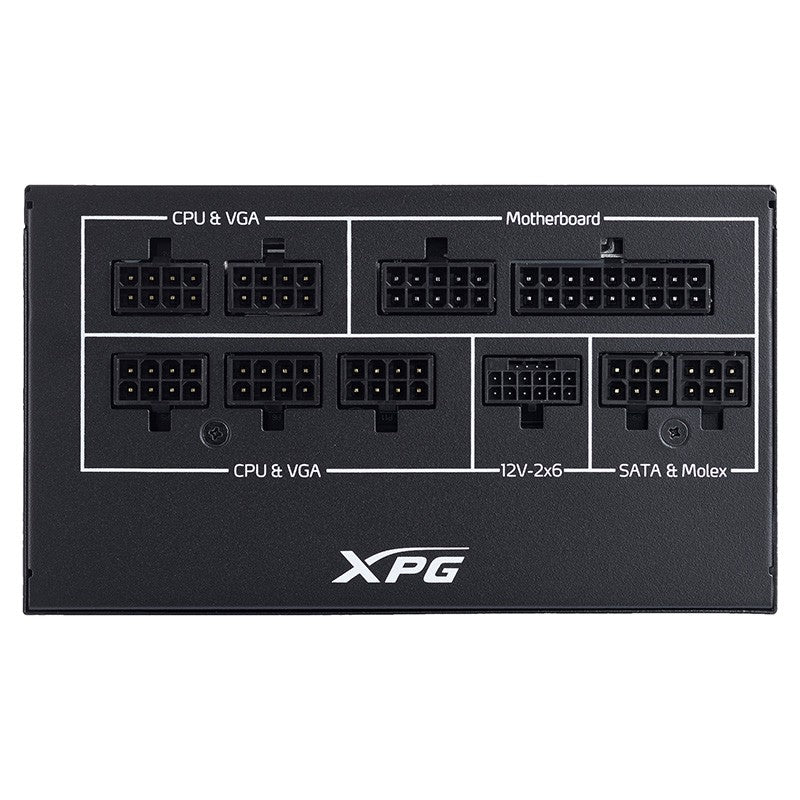

ATX 24 Pin Connector

1

EPS 8 Pin Connector

2

PCI-E 6+2 Pin Connector

3

Molex 4 Pin Connector

2

12V-2x6 (12+4) Connector (600W)

1

SATA Connector

6

Weight

Product + Cables: 1450g+1350g

with Package: 3.03kg
