Description
SPECIFICATIONS:

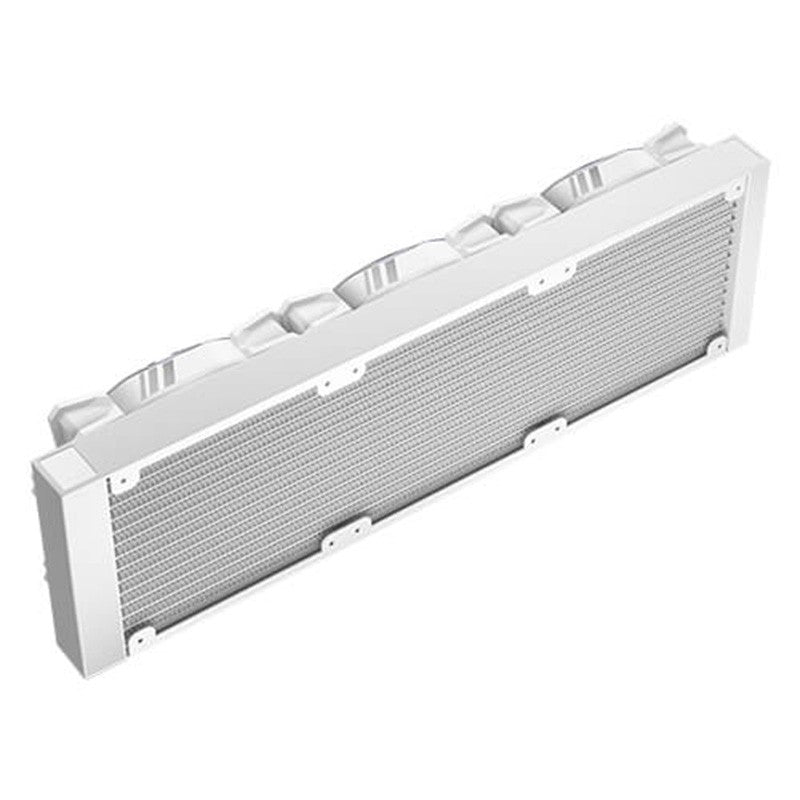

RADIATOR |
|
Radiator Dimensions |
397 x 120 x 27 mm |
Radiator Material |
Aluminum |

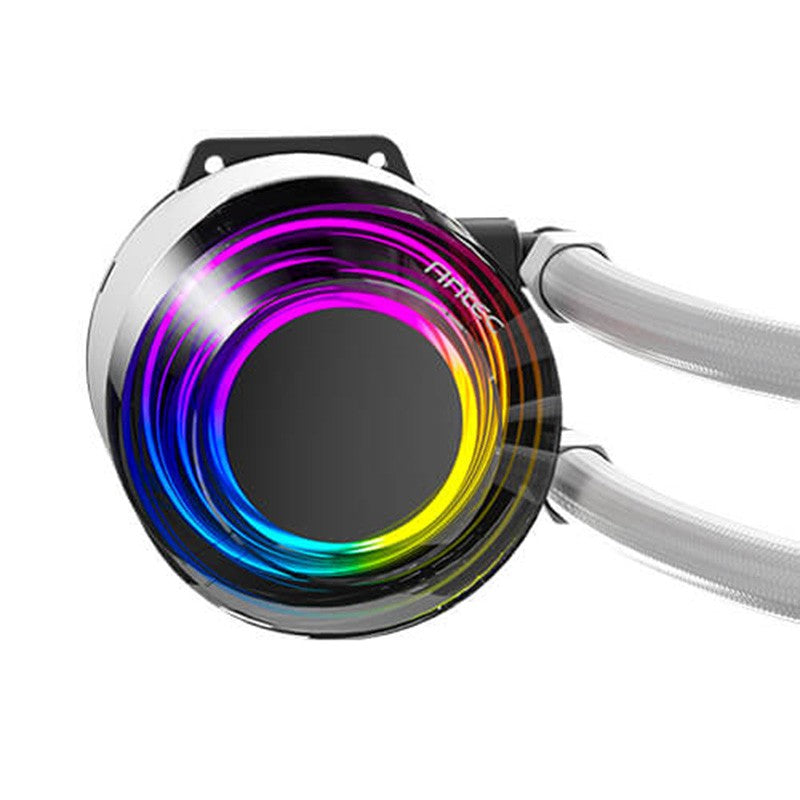

PUMP |
|
Dimensions |
￠67 x 48.5 mm |
Rating Voltage |
DC 12 V |
Minimum Startup Voltage |
≥5.0 V |
Fan Speed |
2800 ± 10% RPM |
Rated Current |
0.25 ± 20% A |
Consumed Power |
3.0 W |
Flow rate |
≥1300 mL/min |
Water Pressure |
1.4M |
Operation Temperature |
-10°C ~ +60°C |
Noise Level |
≤28 dB(A) |
Lifespan |
40,000 hours |
Connector |
PUMP: 3-pin | LED: 3-pin |
FAN |
|
Model Name |
Fusion 120 ARGB White |
Fan Type |
PWM Fan |
Dimensions |
120 x 120 x 25 mm |
Bearing Type |
Hydraulic Bearing |
LED Type |
Addressable RGB |
Fan Speed |
600 ± 200~2000 ± 10% RPM |
Airflow |
57.93 CFM (max.) |
Air Pressure |
2.11 mmH₂O (max.) |
Fan Noise Level |
31.24 dB(A) |
Lifespan |
40,000 hours |
Connector |
FAN: 4-pin PWM | LED: 3-pin |
Rated Voltage |
FAN: DC 12 V | LED: DC 5 V |
Operation Voltage |
FAN: DC 6.0-13.8 V | LED: DC 4.5-5.5 V Rated Current FAN : ≤ 0.21 A | LED : ≤ 0.58 A |
Socket Compatibility CPU |
Intel : LGA 115X / 1200 / 1700 / 20XX AMD : AM3 / AM4 / AM5 / TR4 |
