Description

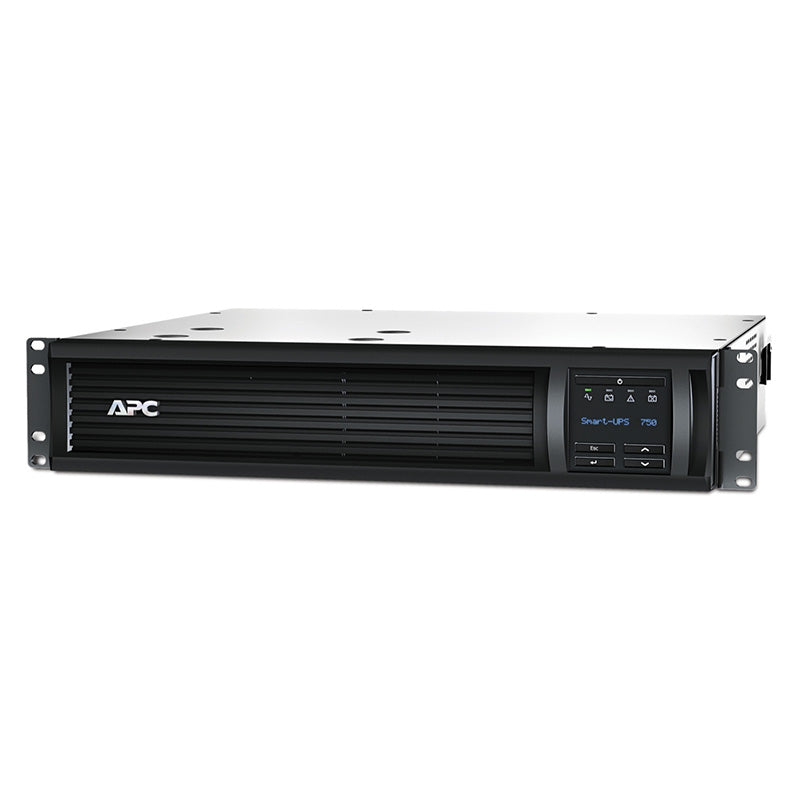

APC 2U RackMount 750VA 500W Smart UPS with LCD
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges.
Replacement battery (1) is available
750VA/500W line interactive pure sine wave 2U rackmount UPS
Ideal for servers, storage, network closets, business VoIP and retail POS
Automatic Voltage Regulation helps correct utility voltage
Cloud-based remote power monitoring via SmartConnect Ethernet Port
Graceful shutdown using serial or USB cables via PowerChute Business Edition
SPECIFICATIONS:
MAIN |
|
Main Input Voltage |
230 V |
Other Input Voltage |
220 V 240 V |
Main Output Voltage |
230 V |
Other Output Voltage |
220 V 240 V |
Rated power in W |
500 W |
Rated power in VA |
750 VA |
Input Connection Type |
IEC 320 C14 |
Output connection type |
4 IEC 320 C13 2 IEC Jumpers |
Number of rack unit |
2U |
Number of cables |
1 |
Battery type |
Lead-acid battery |
Provided equipment |
Documentation CD Installation guide Rack mounting support rails USB cable |
COMPLEMENTARY |
|
Software package |
SmartConnect software for remote power monitoring feature availability varies by terms of use |
BATTERIES & RUNTIME |
|
Additional information |
Configurable for 220 : 230 or 240 nominal output voltage |
Extended runtime |
0 |
Number of battery filled slots |
0 |
Number of battery free slots |
0 |
Battery recharge time |
3 h |
Number of battery replacement quantity |
1 |
Battery life |
4…6 year(s) |
Replacement battery |
APCRBC123 |
Battery power in VAH |
168 VAh runtime |
Battery charger power |
56 W rated |
GENERAL |
|
Number of power module filled slots |
0 |
Number of power module free slots |
0 |
Redundant |
No |
PHYSICAL |
|
Colour |
Black |
Height |
8.6 cm |
Width |
43.2 cm |
Depth |
40.9 cm |
Net weight |
16.6 kg |
Mounting location |
Front |
Mounting preference |
Lower |
Mounting mode |
Rack-mounted |
Two post mountable |
0 |
USB compatible |
Yes |
INPUT |
|
Input voltage limits |
151...302 V adjustable 160...286 V |
Network frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output |
|
Harmonic distortion |
Less than 5 % |
Maximum configurable power in VA |
750 VA |
Maximum configurable power in W |
500 W |
Transfer time |
6 ms typical : 10 ms maximum |
UPS type |
Line interactive |
Wave type |
Sine wave |
Output frequency |
50/60 Hz +/- 3 Hz sync to mains |
CONFORMANCE |
|
Product certifications |
CE EAC RCM TÜV VDE |
Standards |
EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
ENVIRONMENTAL |
|
Acoustic level |
42 dBA |
Heat dissipation |
46 Btu/h |
Operating altitude |
0...10000 ft |
Ambient air temperature for operation |
0…40 °C |
Ambient air temperature for storage |
-15…45 °C |
Storage altitude |
0.00…15240.00 m |
Relative humidity |
0…95 % |
Storage Relative Humidity |
0…95 % |
COMMUNICATIONS & MANAGEMENT |
|
Control panel |
Multifunction LCD status and control console |
Free slots |
1 |
Communication port support |
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
SURGE PROTECTION AND FILTERING |
|
Surge energy rate |
459 J |
Noise suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
PACKING UNITS |
|
Unit Type of Package |
1 PCE |
Number of Units in Package 1 |
1 |
Package 1 Height |
24.1 cm |
Package 1 Width |
58.4 cm |
Package 1 Length |
54.6 cm |
Package 1 Weight |
21.23 kg |
OFFER SUSTAINABILITY |
|
Sustainable offer status |
Green Premium product |
REACh Regulation |
REACh Declaration |
EU RoHS Directive |
Compliant EU RoHS Declaration |
Mercury free |
Yes |
RoHS exemption information |
Yes |
Environmental Disclosure |
Product Environmental Profile |
Circularity Profile |
End of Life Information |
Optimized Energy Efficiency |
Energy efficient product |
Take-back |
Take-back program available |
