Description
*UPS requires a 15A power socket

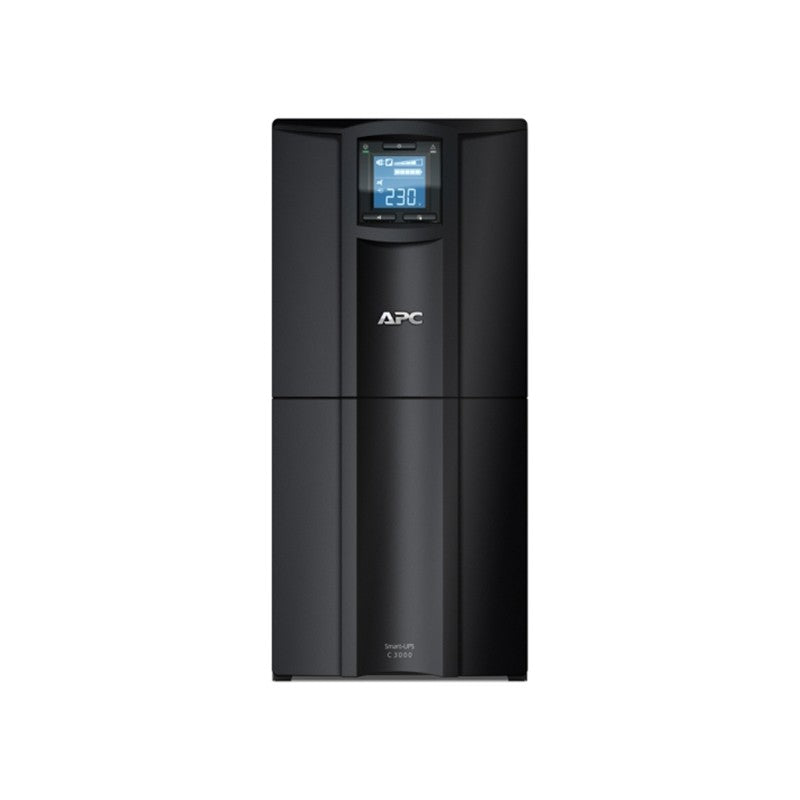

APC Smart UPS C 3000VA 230V LCD Tower UPS
This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 3000VA/2100W line-interactive UPS provides pure sinewave power to support critical electronics during power disruptions.
SPECIFICATIONS:
MAIN |
|
Main Input Voltage |
230 V |
Other Input Voltage |
220 V 240 V |
Main Output Voltage |
230 V |
Rated power in W |
2100 W |
Rated power in VA |
3000 VA |
Product or component type |
Uninterruptible power supply (UPS) |
Input Connection Type |
IEC 320 C20 |
Output connection type |
8 IEC 320 C13 1 IEC 320 C19 |
Number of rack unit |
0U |
Battery type |
Lead-acid battery |
Provided equipment |
CD with software Documentation CD USB cable |
BATTERIES & RUNTIME |
|
Extended runtime |
0 |
Number of battery filled slots |
0 |
Number of battery free slots |
0 |
Battery recharge time |
3 h |
Number of battery replacement quantity |
1 |
Battery life |
3…5 year(s) |
Replacement battery |
APCRBC150 |
Battery charger power |
183 W rated |
GENERAL |
|
Number of power module filled slots |
0 |
Number of power module free slots |
0 |
Product web sub-family |
Entry level |
Redundant |
No |
PHYSICAL |
|
Colour |
Black |
Height |
43.5 cm |
Width |
19.7 cm |
Depth |
54.4 cm |
Net weight |
43 kg |
Mounting location |
Front |
Mounting preference |
No preference |
Mounting mode |
Not rack-mountable |
Two post mountable |
0 |
USB compatible |
Yes |
INPUT |
|
Input voltage limits |
170...300 V adjustable 180...287 V |
Network frequency |
47...63 Hz |
OUTPUT |
|
Harmonic distortion |
Less than 5 % at full load |
Maximum configurable power in VA |
3000 VA |
Maximum configurable power in W |
2100 W |
UPS type |
Line interactive |
Wave type |
Sine wave |
Output frequency |
50 Hz sync to mains |
CONFORMANCE |
|
Product certifications |
C-Tick CE EAC GOST SABS VDE |
Standards |
EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
ENVIRONMENTAL |
|
Acoustic level |
45 dBA |
Heat dissipation |
135 Btu/h |
Operating altitude |
0...10000 ft |
Ambient air temperature for operation |
0…40 °C |
Ambient air temperature for storage |
-15…45 °C |
Storage altitude |
0.00…15240.00 m |
Relative humidity |
0…95 % |
Storage Relative Humidity |
0…95 % |
COMMUNICATIONS & MANAGEMENT |
|
Control panel |
Multifunction LCD status and control console |
Free slots |
0 |
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
SURGE PROTECTION & FILTERING |
|
Surge energy rate |
300 J |
Noise suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
