Description
SPECIFICATIONS:
Intel Specification |
ATX12V |
PFC Type |
Active PFC |
ATX Standard |
ATX 3.1 |
Dimensions |
190 x 150 x 86 mm |
Efficiency |
80Plus Platinum |
MTBF |
>120,000 hrs @ 25°C |
Protection Features |
OPP/OVP/UVP/SCP/OCP/OTP |
Hazardous Materials |
ROHS |
AC Input Range |
100-240Vac |
DC Output Voltage |
+3.3V +5V +12V -12V +5Vsb |
Maximum Load |
30A 25A 100A 0.3A 3A |
Combined Load |
125W 125W 1200W 3.6W 15W |
Total Output |
1200W |

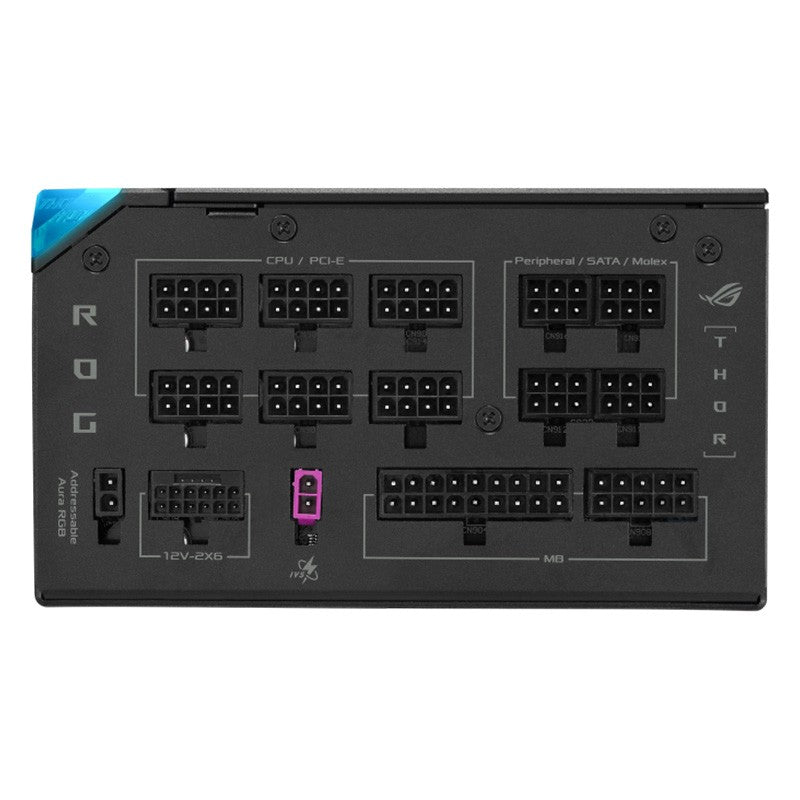

Cable Connectors |
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 6+2-pin x 4 SATA x 7 PERIPHERAL x 6 |
Package Contents |
Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5.1 16-pin Cable x 1 (750mm) PCI-E Cable 1-to-1 x 4 (750mm) SATA Cable 1-to-4 x 1 (400+120+120+120mm) SATA Cable 1-to-3 x 1 (400+120+120mm) Peripheral 1-to-3 x 2 (400+150+150mm) Addressable RGB Cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
Weight |
2.37 KG (single PSU) |
AURA SYNC |
ARGB |
Cybenetics Noise Level Certification |
TBD |
0dB Technology |
Supported. The fan shuts off entirely when the PSU is under certain load |
0dB Fan Button |
Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
