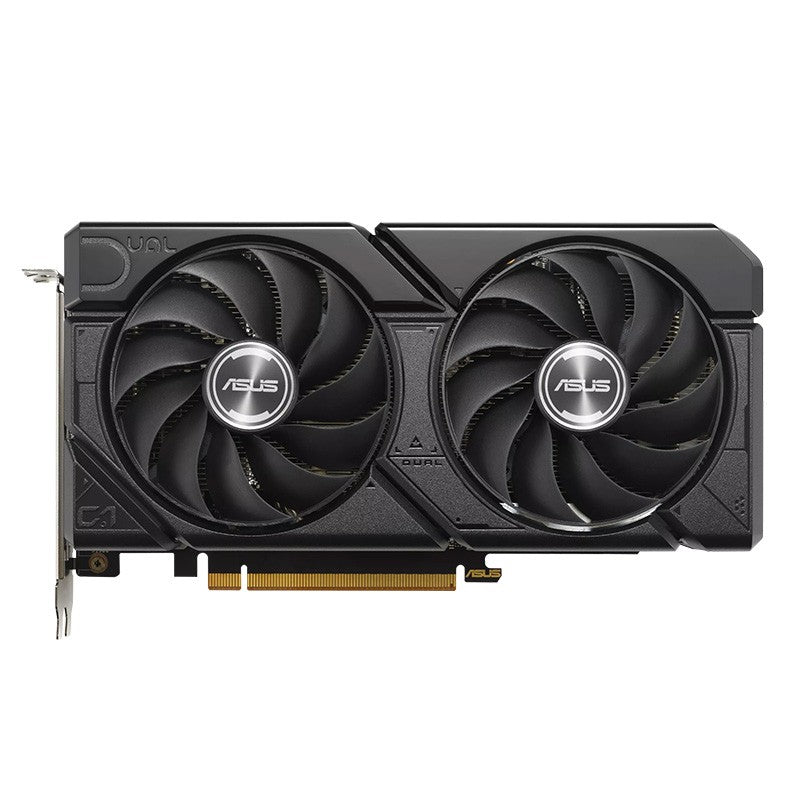

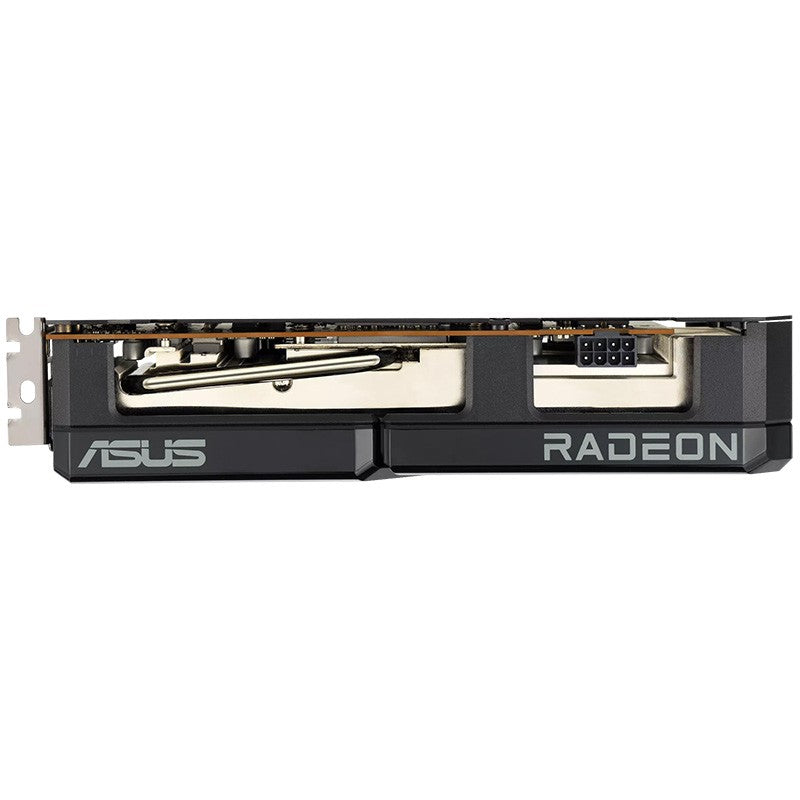

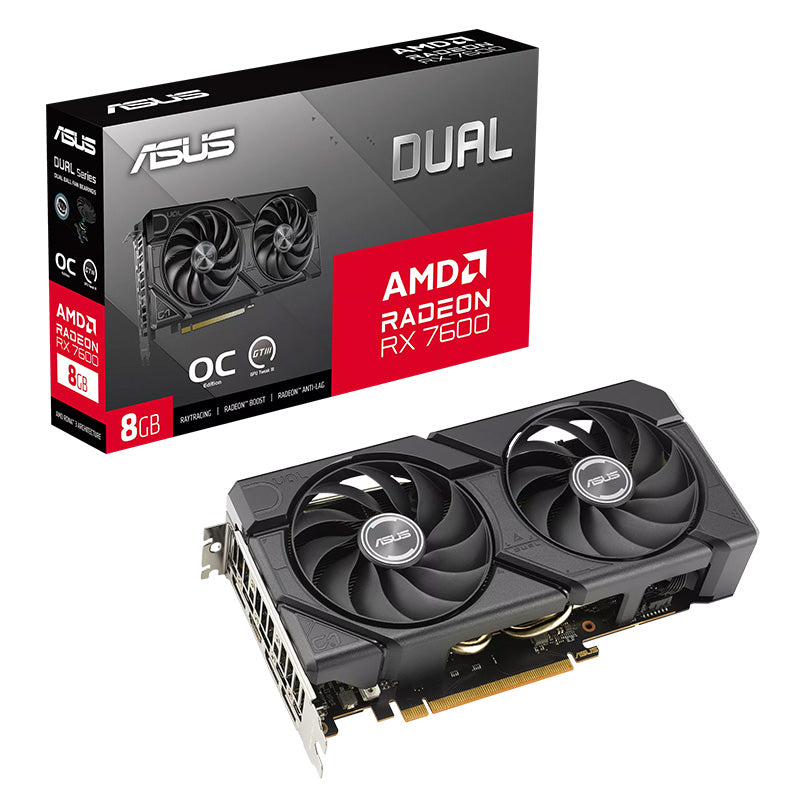

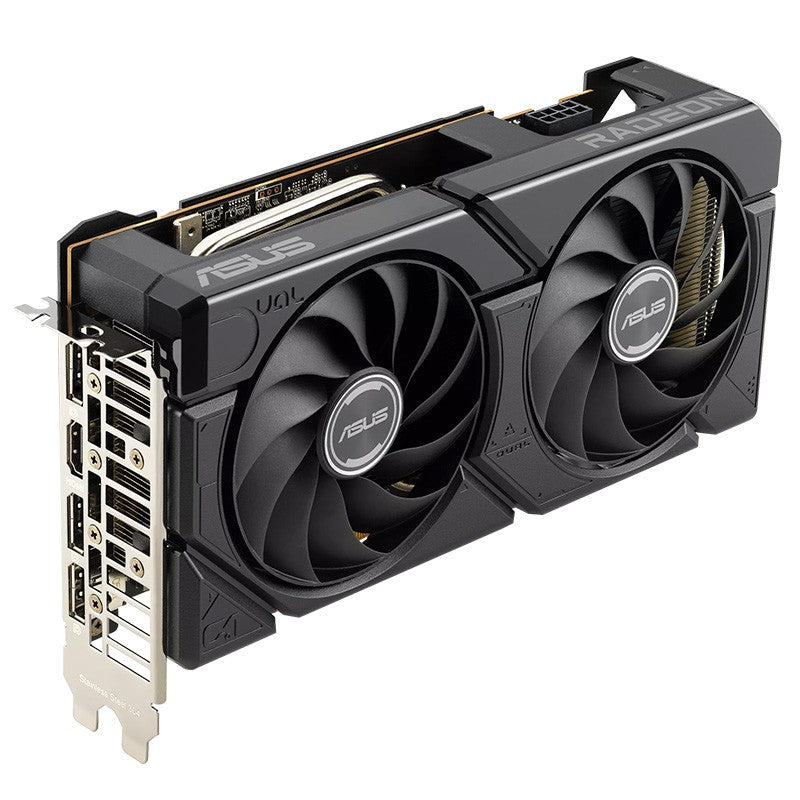

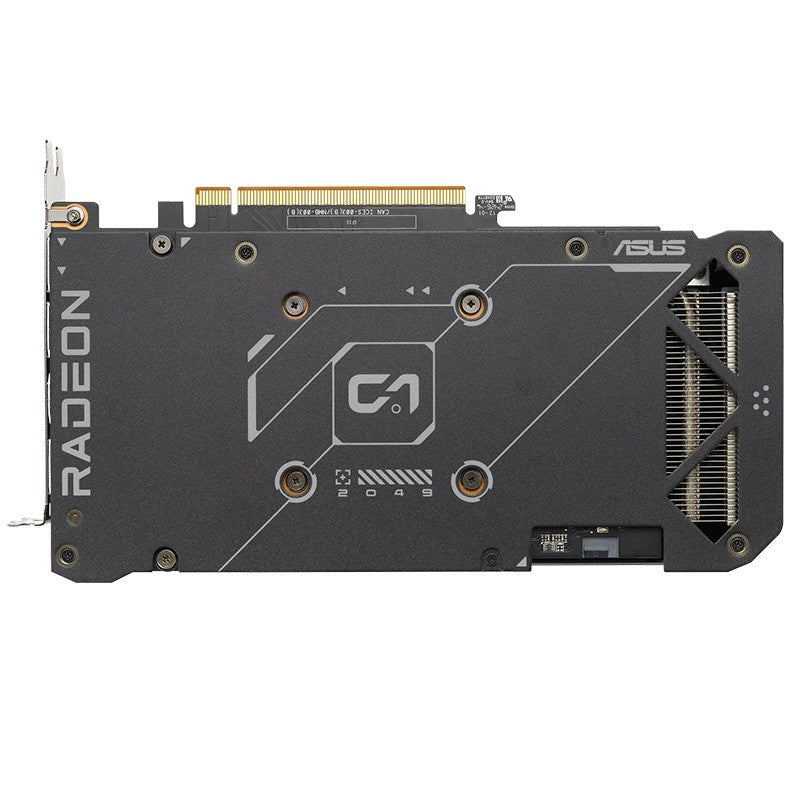

Asus Dual Radeon RX 7600 EVO OC 8G Graphics Card

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

8GB GDDR6

Engine Clock

OC mode: up to 2715 MHz (Boost Clock)/up to 2300 MHz (Game Clock)

Default mode: up to 2695 MHz (Boost Clock)/up to 2280 MHz (Game Clock)

Stream Processors

2048

Memory Speed

18 Gbps

Memory Interface

128-bit

Resolution

Digital Max Resolution 7680 x 4320

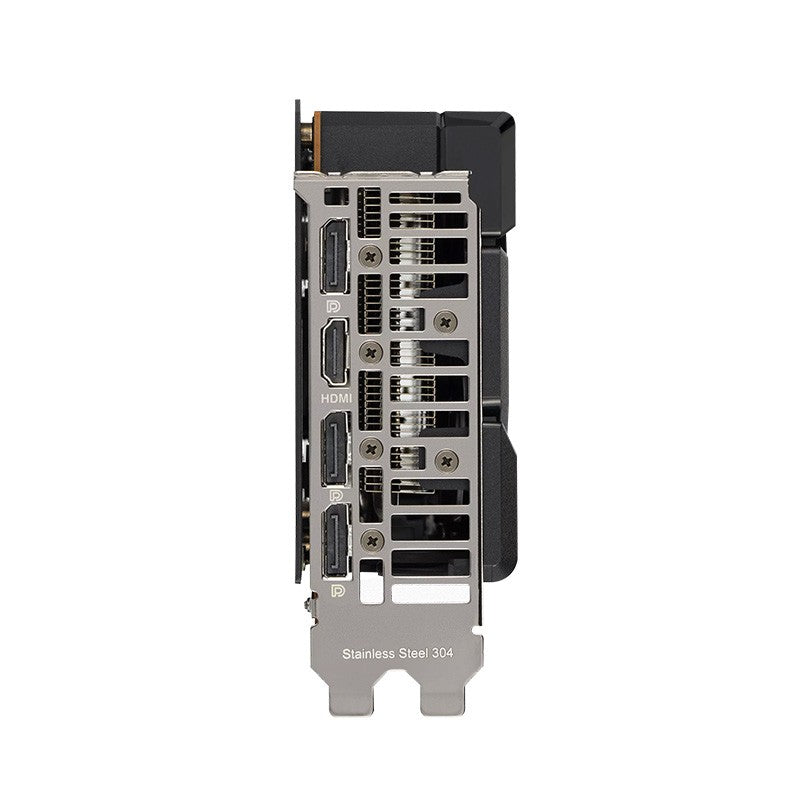

Interface

Yes x 3 (Native DisplayPort 1.4a)

Yes x 1 (Native HDMI 2.1)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions

22.9 x 12.3 x 4.9 cm

9.02 x 4.85 x 1.96 inch

Recommended PSU

550W

Power Connectors

1 x 8-pin

Slot

2.5 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html

* Crossfire Support for DirecX® 12 and Vulkan®

* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
