Description
SPECIFICATIONS:
Network Standard |
IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
Product Segment |
AX7800 ultimate AX performance : 574+2402+4804Mbps |
Data Rate |
802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps WiFi 5 (802.11ac) (1024QAM): up to 4333Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz-1) : up to 2402Mbps WiFi 6 (802.11ax) (5GHz-2) : up to 4804Mbps |
Antenna |
Internal antenna x 6 |
Transmit/Receive |
2.4GHz 2x2 5GHz-1 2x2 5GHz-2 4x4 |
Processor |
1.7 GHz quad-core processor |
Memory |
256 MB Flash 1 GB RAM |
Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions. |
Operating Frequency |
2.4 GHz 5 GHz-1 5 GHz-2 |
Operating Mode |
Wireless Router Mode AiMesh Node Mode Access Point Mode |

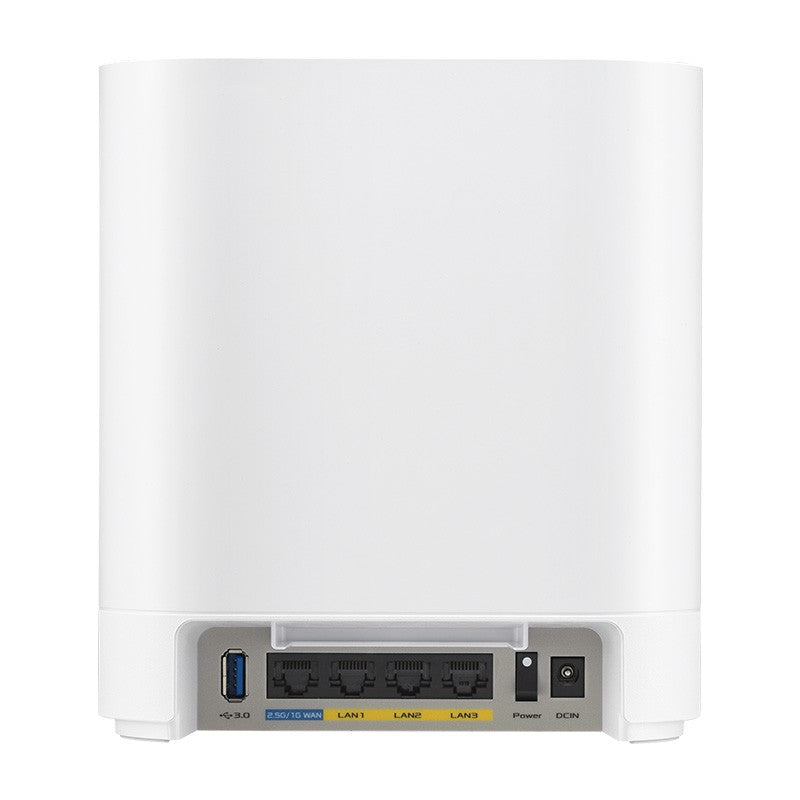

I/O Ports |
RJ45 for 2.5G BaseT for WAN x 1 RJ45 for Gigabits BaseT for LAN x 3 USB 3.2 Gen 1 x 1 |
Buttons |
WPS Button Reset Button Power Switch LED Indicator Power x 1 |
Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 3 A current |
Mounting |
Wall Mount |
Package Content |
1 x ExpertWiFi EBM68 RJ-45 cable Power adapter Warranty card Quick start guide Wall-mount kit * Content may vary in different regions and packages. |
Product Weight |
808g |
AiMesh |
AiMesh • Primary AiMesh Router • AiMesh Node |
Device Access Control |
"Allow you to block access to unwanted websites and apps." ------------------------------------------------------ Web & Apps Filters Time Scheduling Reward Safe Browsing Customized Internet Schedule • Maximum Device Access Control Profile :12 • Maximum Device Access Control Content Filter Rule :12 |
Dashboard |
Dashboard |
Self-Defined Network |
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings." ------------------------------------------------------------------------ Self-Defined Network Type • Employee • Guest Portal • Guest Network • Scheduled Network • IoT Network • VPN Network • Maximum Self-Defined Network Rule :16 VLAN Captive Portal for Free WiFi VPN WiFi WiFi Scheduling: One Time Access WiFi Scheduling: Weekly Schedule WiFi share: QR code, PDF file Bandwidth Limiter AP isolate DNS Server Connection |
Security |
AiProtection VPN WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS Let's Encrypt DNS-over-TLS SSH Firewall • Maximum Firewall Keyword Filter :64 • Maximum Firewall Network Service Filter :32 • Maximum Firewall URL Filter : 64 |
AiProtection |
AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
VPN |
VPN Client L2PT VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark |
Traffic Control |
Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter Traffic Monitor • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Website History |
WAN |
Internet Connection Type • PPPoE • PPTP • L2TP • Automatic IP • Static IP • IPSec Dual WAN 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering Port Forwarding Port Triggering DMZ DDNS NAT Passthrough • PPTP Pass-Through • L2TP Pass-Through • IPSec Pass-Through |
LAN |
DHCP Server IGMP Snooping IPTV LAN Link Aggregation VLAN |
Wireless |
UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler |
USB application |
4G / 5G Auto Mobile Tethering Media Server Samba Server FTP Server Shared Folder Privileges |
User Interface |
WEB: ASUSWRT APP: ASUS ExpertWiFi APP |
Management |
Multiple Site Management Administration Configuration Backup and Restore Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
