Description
SPECIFICATIONS:
Network Standard |
IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
Product Segment |
AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps |
Data Rate |
802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps WiFi 5 (802.11ac) : up to 1734 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps |
Antenna |
4 External Antenna |
Transmit/Receive |
2.4GHz 2x2 5GHz 2x2 |
Processor |
1.7GHz quad-core processor |
Memory |
256MB FLASH 512MB RAM |
Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
Operating Frequency |
2.4 GHz 5 GHz |
Operating Mode |
Wireless Router Mode AiMesh Node Mode Access Point Mode |

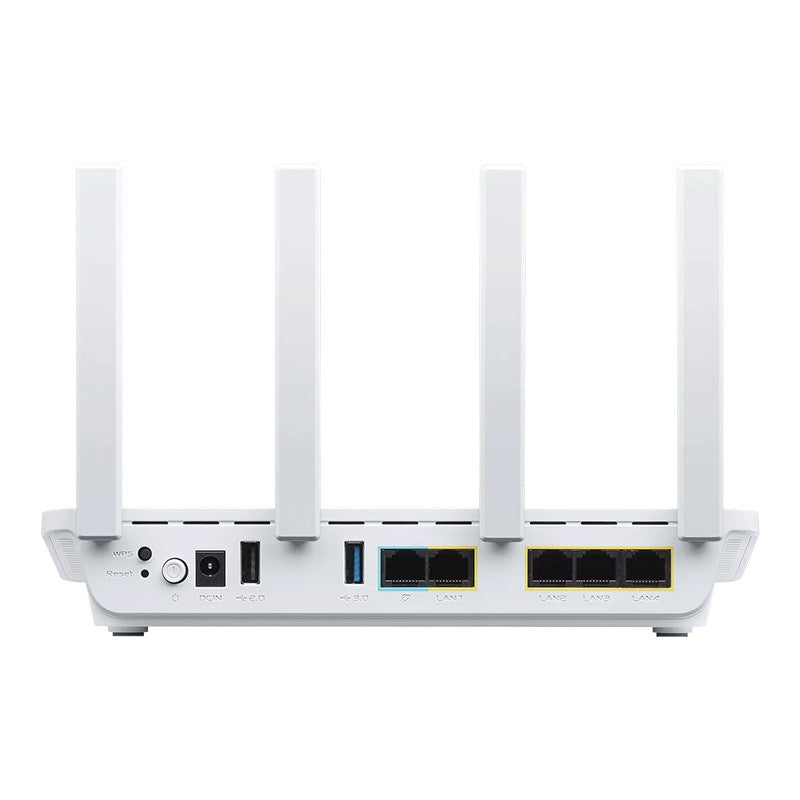

I/O Ports |
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, USB2.0 |
Buttons |
WPS Button, Reset Button, Power Switch |
LED Indicator |
POWER, WAN, LAN, 5G, 2.4G |
Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 12V with max. 2A current |

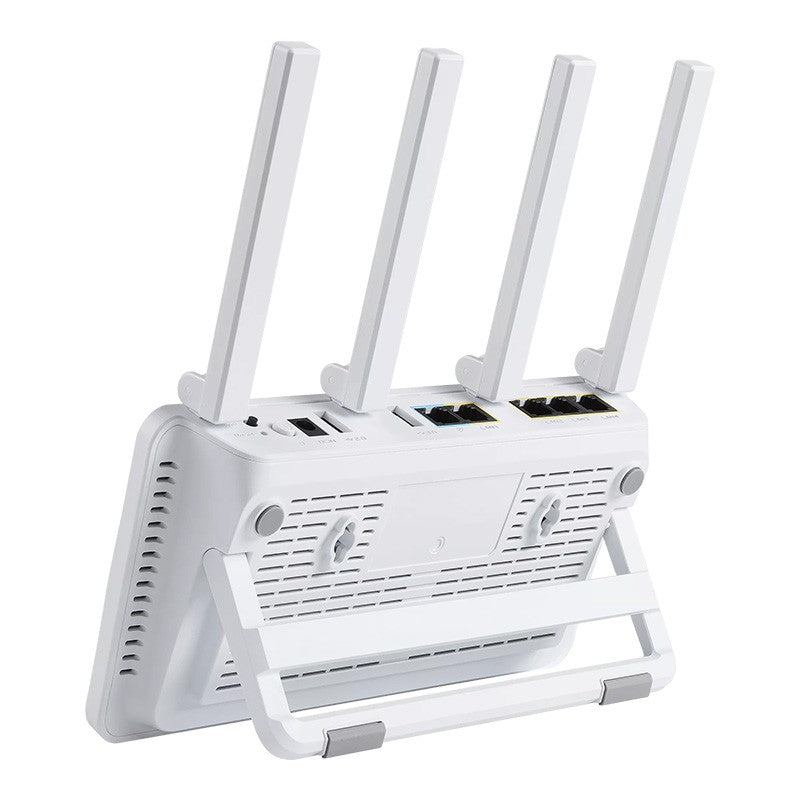

Mounting |
Wall Mount Ceiling Mount |
Package Content |
ExpertWiFi EBR63 RJ45 Ethernet Cable Power Adapter Quick Start Guide Warranty Card ExpertWiFi EBR63 RJ45 Ethernet Cable Power Adapter Quick Start Guide Warranty Card |
Product Weight |
436g |
AiMesh |
AiMesh Primary AiMesh Router AiMesh Node |
Device Access Control |
"Allow you to block access to unwanted websites and apps." ------------------------------------------------------ Web & Apps Filters Time Scheduling Safe Browsing Customized Internet Schedule • Maximum Device Access Control Profile :12 • Maximum Device Access Control Content Filter Rule :12 |
Dashboard |
Dashboard |
Self-Defined Network |
"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings." ------------------------------------------------------------------------ Self-Defined Network Type • Employee • Guest Portal • Guest Network • Scheduled Network • IoT Network • VPN Network • Maximum Self-Defined Network Rule :16 Multiple Network VLAN Captive Portal for Free WiFi VPN WiFi WiFi Scheduling: One Time Access WiFi Scheduling: Weekly Schedule WiFi share: QR code, PDF file Bandwidth Limiter AP isolate DNS Server Connection |
Security |
AiProtection VPN WPS Let's Encrypt DNS-over-TLS SSH Firewall • Maximum Firewall Keyword Filter :64 • Maximum Firewall Network Service Filter :32 • Maximum Firewall URL Filter : 64 |
AiProtection |
AiProtection Pro • Router Security Assessment • Malicious Site Blocking • Two-Way IPS • Infected Device Prevention and Blocking |
VPN |
VPN Client L2PT VPN Client Open VPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server Open VPN VPN Server PPTP VPN Server WireGuard VPN Fusion Support Surfshark |
Traffic Control |
Adaptive QoS • Bandwidth Monitor • Bandwidth Limiter • Real-time Traffic Monitor • Wired Traffic Monitor • Wireless Traffic Monitor Traffic Analyzer • Website History |
WAN |
• PPPoE • PPTP • L2TP • IPSec Dual WAN 3G / 4G LTE Dongle 4G / 5G Auto Mobile Tethering Port Forwarding Port Triggering DMZ DDNS NAT Passthrough • PPTP Pass-Through • L2TP Pass-Through • IPSec Pass-Through |
LAN |
DHCP Server IGMP Snooping IPTV VLAN |
Wireless |
MU-MIMO UTF-8 SSID WiFi MAC Address Filter • Maximum MAC Filters : 64 Wireless Scheduler |
USB application |
4G / 5G Auto Mobile Tethering Media Server Samba Server FTP Server Shared Folder Privileges |
User Interface |
WEB: ASUSWRT APP: ASUS ExpertWiFi APP |
Administration |
Configuration Backup and Restore Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update |
