Asus Prime Radeon RX 9070 OC 16G Graphics Card

Engine Clock

OC mode(GPU Tweak III): up to 2610 MHz (Boost Clock)/up to 2140 MHz (Game Clock)

Default mode: up to 2590 MHz (Boost Clock)/up to 2120MHz (Game Clock)

Memory Speed

20 Gbps

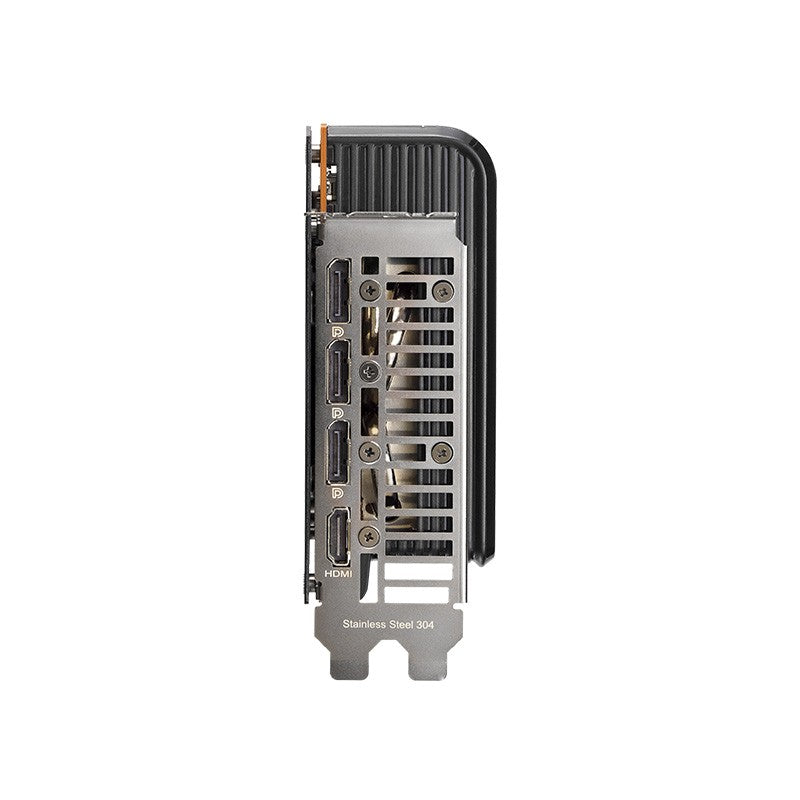

Interface

Yes x 1 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1a)

HDCP Support Yes (2.3)

Bus Standard

PCI Express 5.0

OpenGL

OpenGL®4.6

Video Memory

16GB GDDR6

Stream Processors

3584

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Maximum Display Support

4

NVlink/ Crossfire Support

No

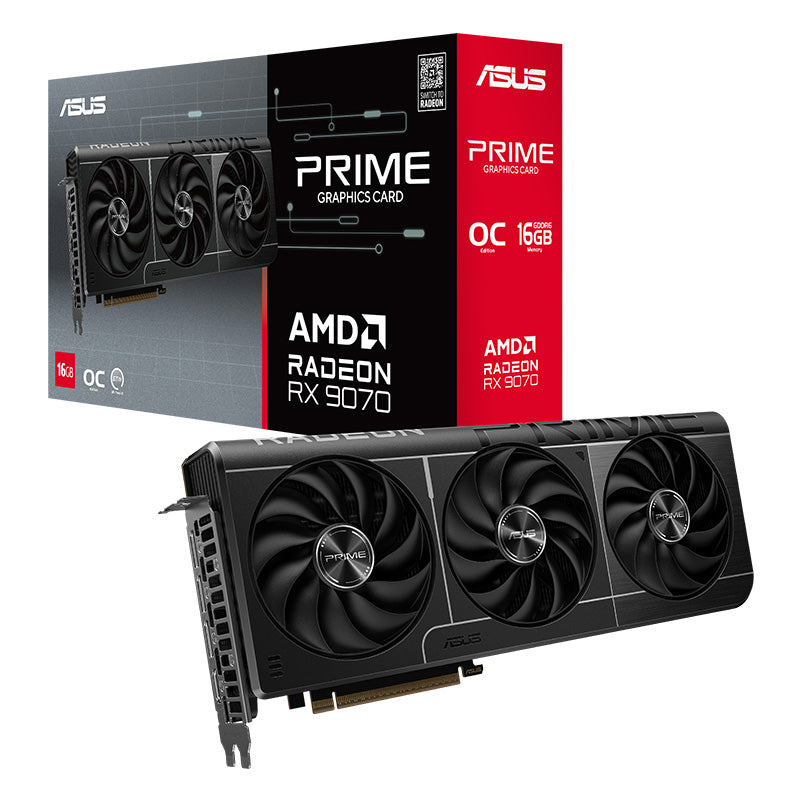

Accessories

1 x Thank you card

1 x Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions

312 x 130 x 50 mm

12.3 x 5.1 x 2.0 inch

Recommended PSU

650W

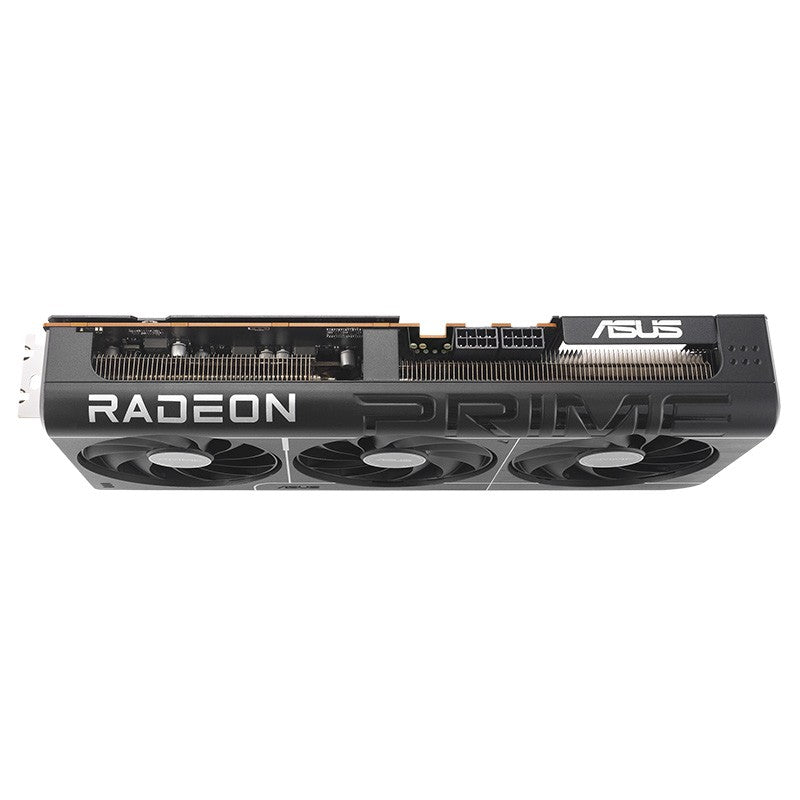

Power Connectors

2 x 8-pin

Slot

2.5 Slot

AURA SYNC

RGB

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html

* ‘Game Clock’ is the expected GPU clock when running typical gaming   applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
