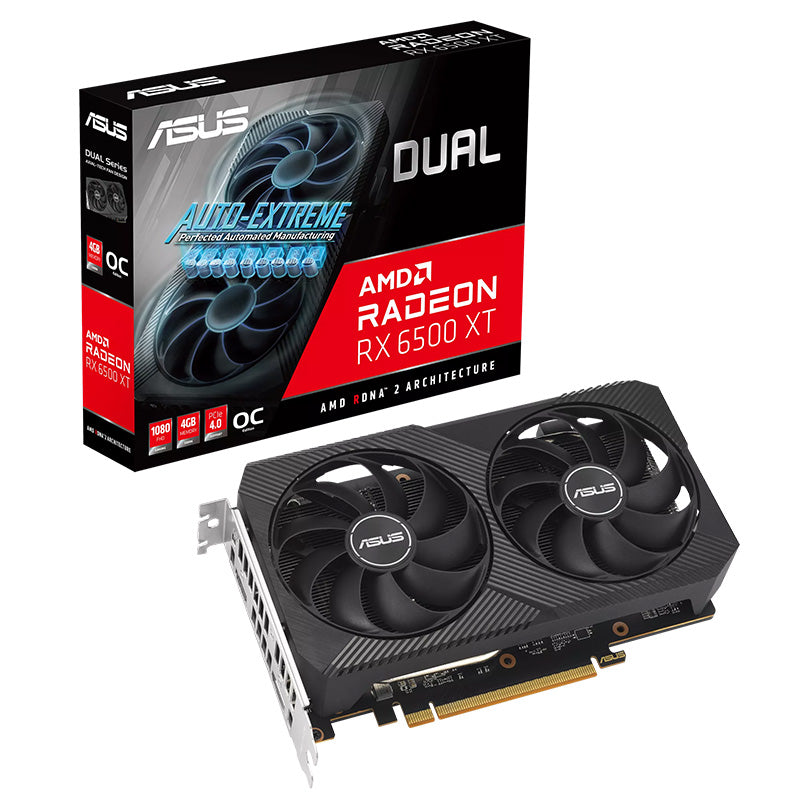

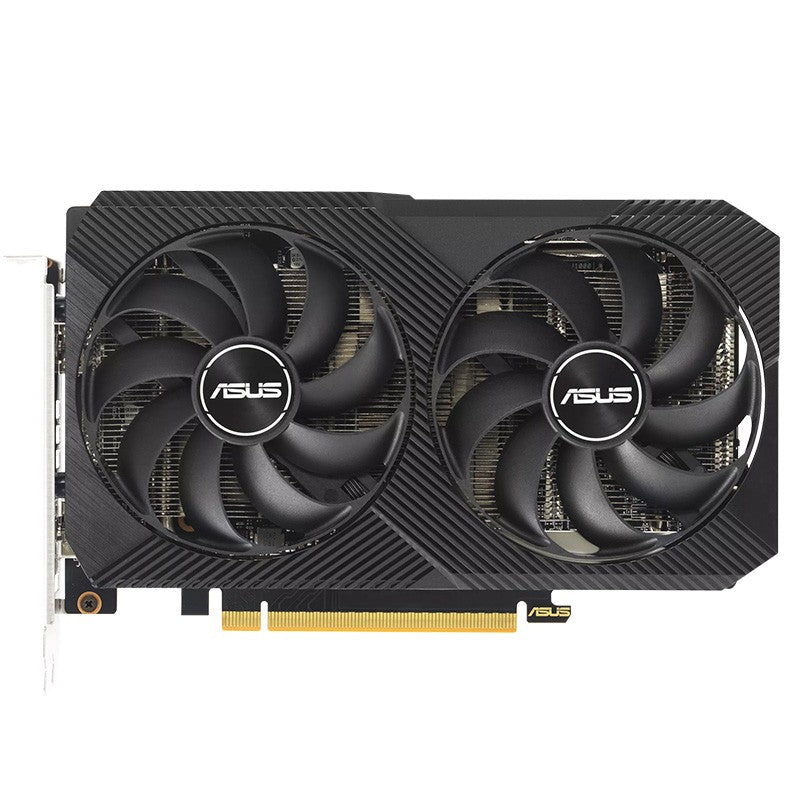

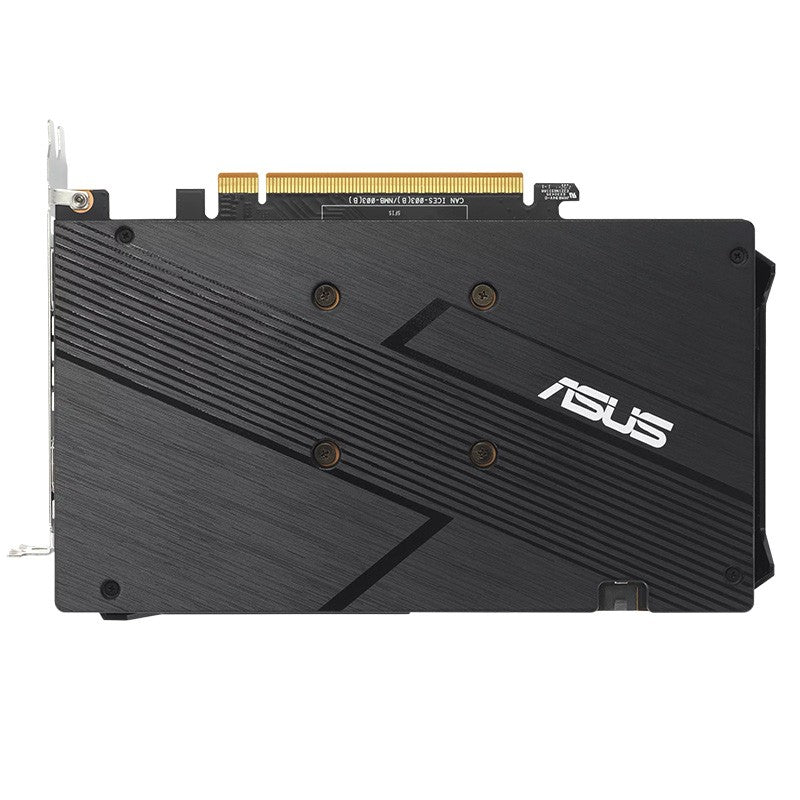

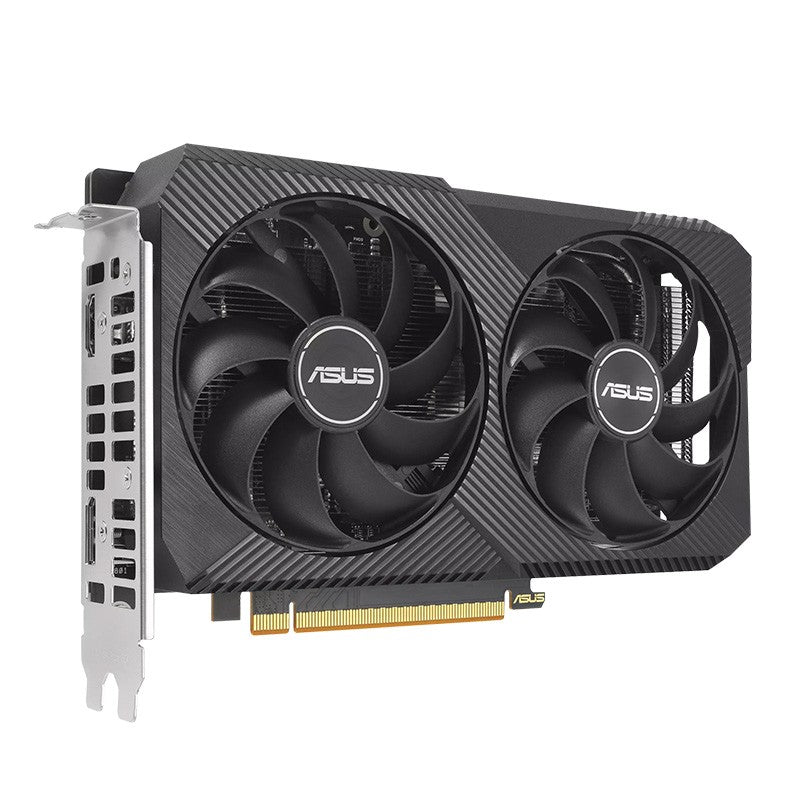

Asus Radeon RX 6500 XT Dual OC 4G V2 Graphics Card

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

4GB GDDR6

Engine Clock

OC mode: up to 2820 MHz(Boost Clock)/ up to 2670 MHz(Game Clock)

Gaming mode: up to 2820 MHz(Boost Clock)/ up to 2650 MHz(Game Clock)

Stream Processors

1024

Memory Speed

18 Gbps

Memory Interface

64-bit

Resolution

Digital Max Resolution 7680 x 4320

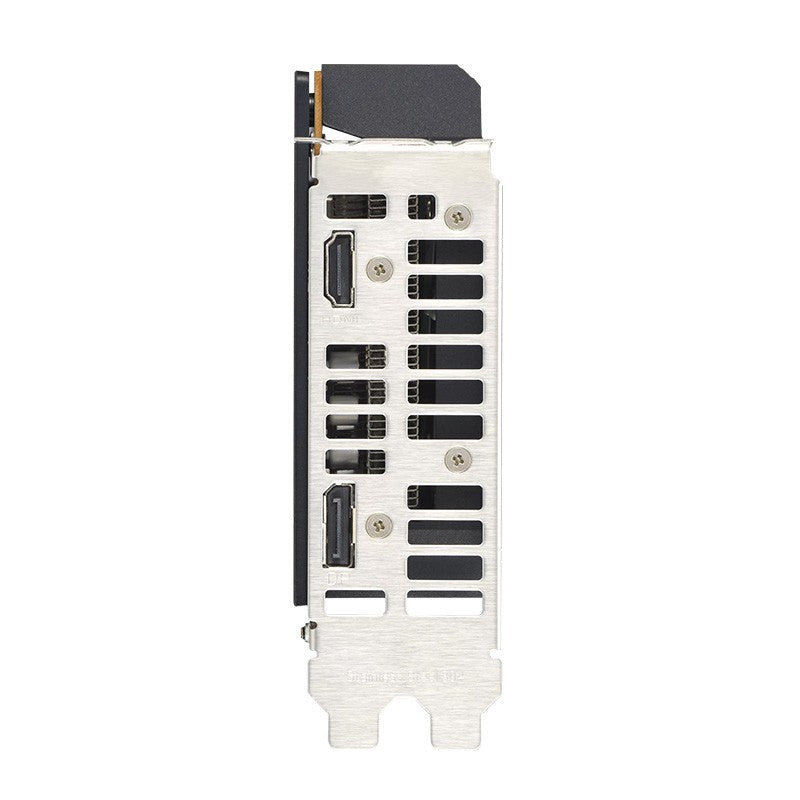

Interface

Yes x 1 (Native HDMI 2.1)

Yes x 1 (Native DisplayPort 1.4a)

HDCP Support Yes (2.3)

Maximum Display Support

2

NVlink/ Crossfire Support

No

Accessories

1 x Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions

201 x 128 x 40 mm

7.9 x 5.03 x 1.57 inch

Recommended PSU

500W

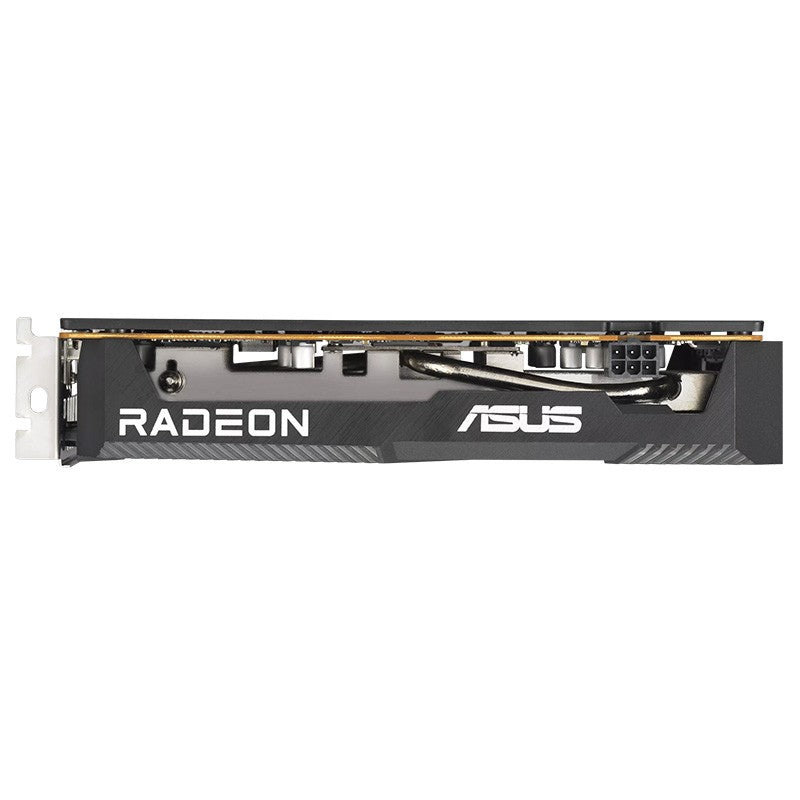

Power Connectors

1 x 6-pin

Slot

2 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html

* Crossfire Support for DirecX® 12 and Vulkan®

* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
