Description
SPECIFICATIONS:
CPU |
|
CPU Model |
AMD Ryzen V3C14 |
CPU Architecture |
x64 64-bit |
CPU Frequency |
Quad-Core 2.3GHz (burst up 3.80 GHz) |
MEMORY |
|
Memory |
8GB DDR5-4800 SO-DIMM |
Memory Module Pre-installed |
8GB (1x 8GB) |
Total Memory Slots |
2 |
Memory Expandable up to |
64GB Support mixed capacity Supports ECC memory ECC functionality will be disabled if non-ECC memory is installed or mixed with ECC memory |
Flash Memory |
8GB eMMC |
M.2 Drive Slots |
6 |
Compatible Drive Type |
M.2 2280 NVMe |
M.2 PCIe Interface |
1x PCIe 4.0 x4 3x PCIe 4.0 x2 2x PCIe 4.0 x1 |
Maximum Drive Bays with Expansion Unit |
12 |

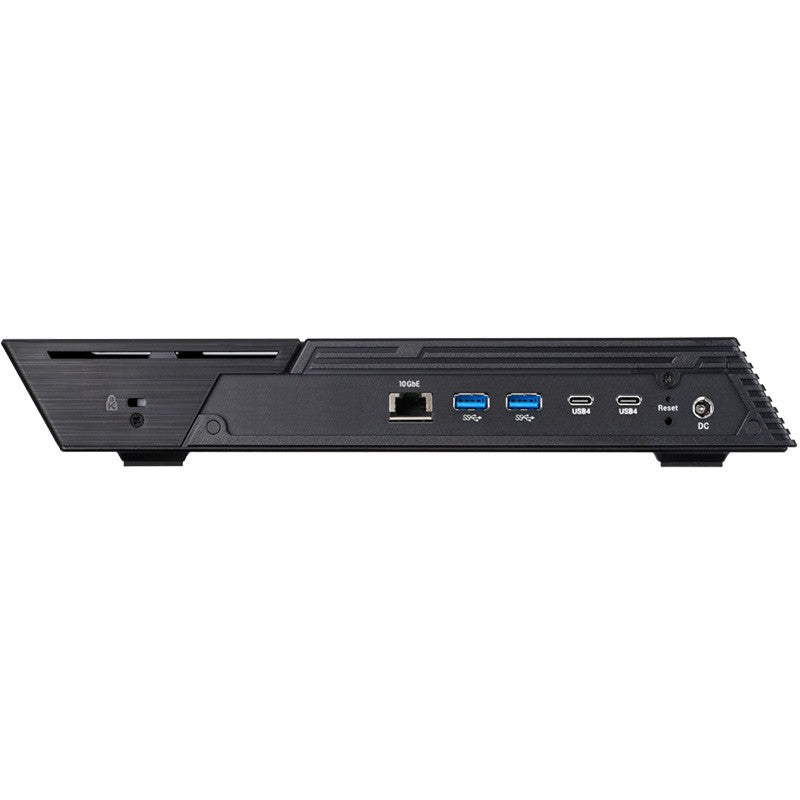

EXTERNAL PORTS |
|
Expansion |
3 x USB 3.2 Gen 2 ( 10Gbps ) Type-A; 2x USB4 ports (20Gbps per channel, 40Gbps per port) Host-to-Host connectivity is not supported Backwards compatible with USB 3.2 Gen 1 and USB 3.2 Gen 1 |
Network |
1 x 10 Gigabit Ethernet (10G/2.5G/1G/100M) |
Multimedia Output |
N/A |
OTHERS |
|
System Fan |
1 x 80mm |
Power Supply Unit / Adapter |
90W x1 |
Input Power Voltage |
100V to 240V AC |
Certification |
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA |
OPERATION |
|
Power Consumption |
17.9 W (Operation); |
Noise Level |
18.6dB |
Operation Temperature |
0°C~40°C (32°F~104°F) |
Storage Temperature |
-20°C~70°C (-4°F~158°F) |
Humidity |
5% to 95% RH |
SIZE AND WEIGHT |
|
Size |
48.3 (H) x 308.26 (W) x 193 (D) mm |
Weight |
1.4 kg / 3.08 lb |
SOFTWARE |
|
Supported OS |
Windows 10, 11, Server 2016, Server 2019, Server 2022 macOS UNIX, Linux, and BSD |
Supported Languages |
Deutsch, English, Français, Italiano, Nederlands, Русский, 日本語, 한글, 简体中文, 繁體中文, Česk, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ภาษาไทย |
Supported Browsers |
Firefox Chrome Safari Microsoft Edge |
PACKAGE |
|
Package Weight |
2.36 kg / 5.19 lbs |
Package Size |
85 (H) x 325 (W) x 300 (D) mm |
Package Contents |
FS6806X Unit x1 Quick Installation Guide AC Power Cord x1 AC Power Adapter 1 10GbE LAN Cable(Cat 6a) x1 Power Cord Tie |
