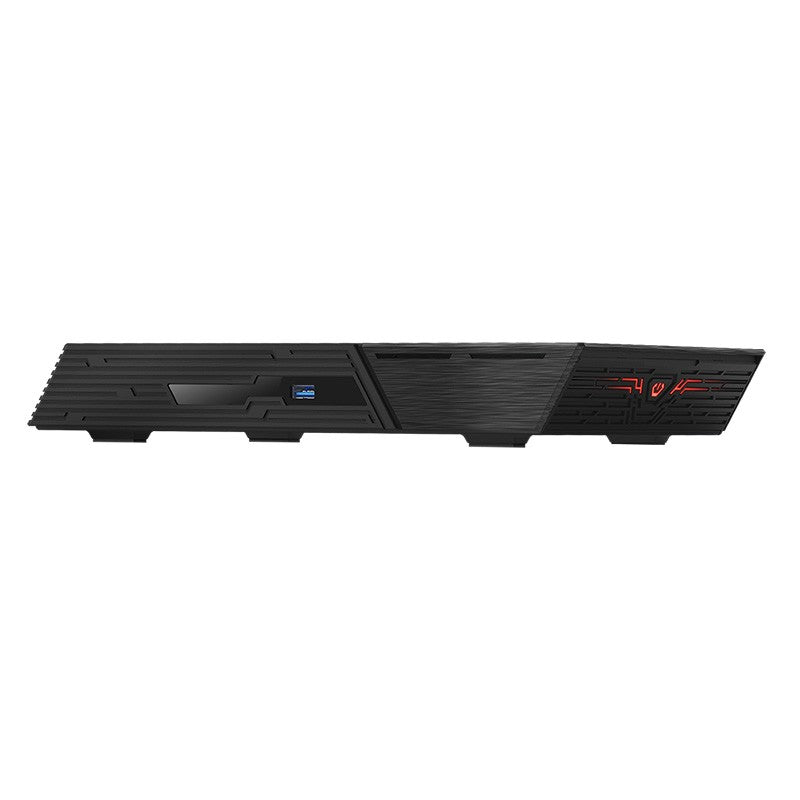

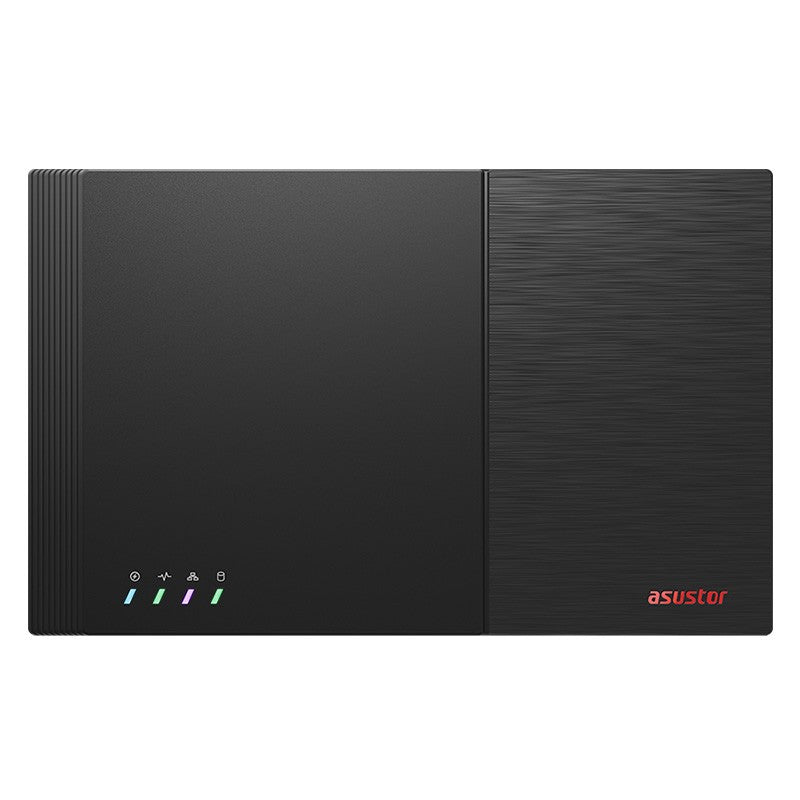

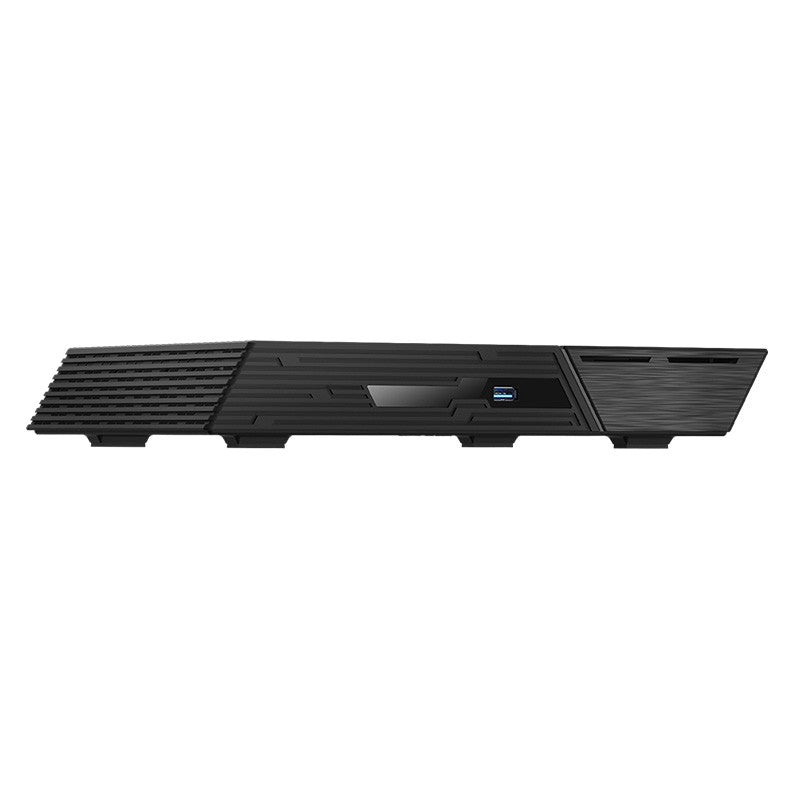

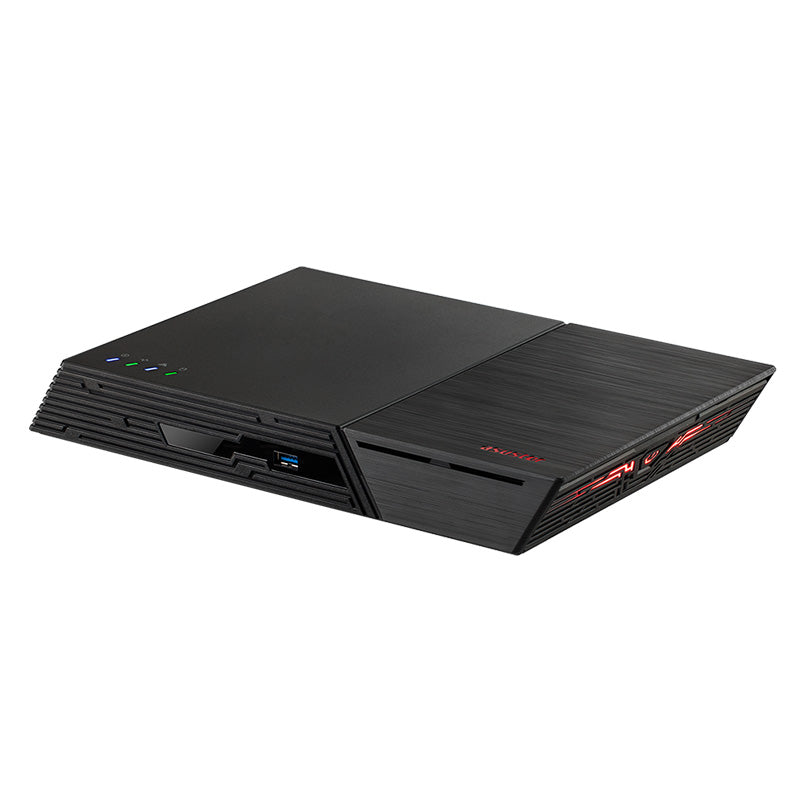

Asustor Flashtor 6 Intel Celeron N5105 Quad Core Jasper Lake 2.0 GHz 4GB RAM Mini Desktop NAS

CPU Model

Intel Celeron N5105

CPU Architecture

x64 64-bit

CPU Frequency

Quad-Core 2.0GHz (burst up 2.90 GHz)

MEMORY

Memory

4GB SO-DIMM DDR4

Memory Module Pre-installed

4GB (1x 4GB)

Total Memory Slots

2

Memory Expandable up to

16GB (2x 8GB)

Support mixed capacity

STORAGE

Flash Memory

8GB eMMC

M.2 Drive Slots

6

Compatible Drive Type

M.2 2280 NVMe
* Heatsinks for compatible NAS devices may be purchased separately if needed.

M.2 PCIe Interface

PCIe 3.0 x1

Maximum Drive Bays with Expansion Unit

8

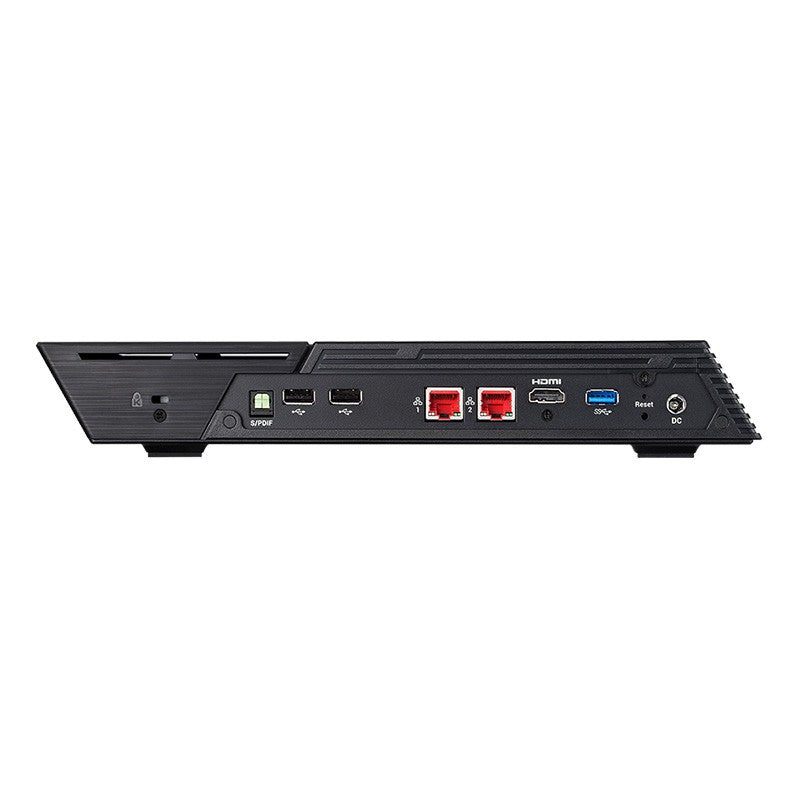

EXTERNAL PORTS

Expansion

2x USB 3.2 Gen 2 (10Gbps); 2 x USB 2.0

Network

2x 2.5 Gigabit Ethernet (2.5G/1G/100M)

Multimedia Output

1x HDMI 2.0b, 1x S/PDIF

OTHERS

System Fan

1 x 80mm

Power Supply Unit / Adapter

65W x1

Input Power Voltage

100V to 240V AC

Certification

FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA

OPERATION

Power Consumption

18.2 W (Operation);
  0.83 W (Sleep Mode)

Noise Level

18.7dB

Operation Temperature

0°C~40°C (32°F~104°F)

Storage Temperature

-20°C~70°C (-4°F~158°F)

Humidity

5% to 95% RH

SIZE AND WEIGHT

Size

48.3 (H) x 308.26 (W) x 193 (D) mm

Weight

1.35kg / 2.98 lb

SOFTWARE

Supported OS

Windows 10, 11, Server 2016, Server 2019, Server 2022

macOS

UNIX, Linux, and BSD

Supported Languages

Deutsch, English, Français, Italiano, Nederlands, Русский, 日本語, 한글, 简体中文, 繁體中文, Česk, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ภาษาไทย

Supported Browsers

Firefox

Chrome

Safari

Microsoft Edge

PACKAGE

Package Weight

2.19 kg / 4.82 lbs

Package Size

85 (H) x 325 (W) x 300 (D) mm

Package Contents

FS6706T Unit x1

Quick Installation Guide

AC Power Cord x1

AC Power Adapter 1

RJ-45 LAN Cable(Cat 5e) x2

Power Cord Tie
