Description
SPECIFICATIONS:
CPU |
|
CPU Model |
AMD Ryzen V3C14 |
CPU Architecture |
x64 64-bit |
CPU Frequency |
Quad-Core 2.3GHz (burst up 3.8 GHz) |
MEMORY |
|
Memory |
16GB ECC DDR5-4800 SO-DIMM |
Memory Module Pre-installed |
16GB (1x 16GB) |
Total Memory Slots |
2 |
Memory Expandable up to |
64GB Support mixed capacity Supports ECC memory ECC functionality will be disabled if non-ECC memory is installed or mixed with ECC memory |
Flash Memory |
8GB eMMC |
STORAGE |
|
Drive Bays |
10 |
M.2 Drive Slots |
4 |
Compatible Drive Type |
3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe |
M.2 PCIe Interface |
PCIe 4.0 x1 |
Maximum Drive Bays with |
22 |
Supports Hot Swappable Drives |
✓ |

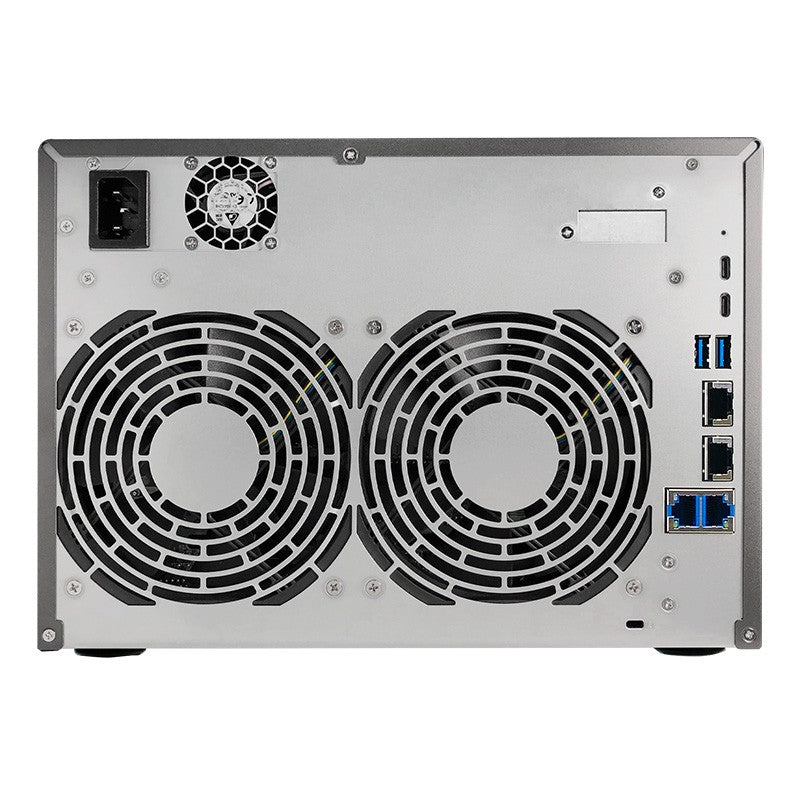

EXTERNAL PORTS |
|
Expansion |
3 x USB 3.2 Gen 2 ( 10Gbps ) Type-A 2x USB4 ports (20Gbps per channel, 40Gbps per port) Host-to-Host connectivity is not supported Backwards compatible with USB 3.2 Gen 1 and USB 3.2 Gen 1 |
Network |
2x 5 Gigabit Ethernet (5G/2.5G/1G/100M) 2x 10 Gigabit Ethernet (10G/2.5G/1G/100M) |
PCIe Expansion Slots |
PCIe 4.0, x4 link, (for optional 10 GbE card) |
Multimedia Output |
N/A |
OTHERS |
|
System Fan |
2x 120mm |
LCD Panel |
✓ |
Power Supply Unit / Adapter |
250W x1 |
Input Power Voltage |
100V to 240V AC |
Certification |
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA |
OPERATION |
|
Power Consumption |
68 W (Operation); |
Noise Level |
22dB (HDD idle) |
Operation Temperature |
0°C~40°C (32°F~104°F) |
Storage Temperature |
-20°C~70°C (-4°F~158°F) |
Humidity |
5% to 95% RH |
SIZE AND WEIGHT |
|
Size |
215.5(H) x 293(W) x 230(D) mm |
Weight |
6.55 kg / 14.44 lb |
SOFTWARE |
|
Supported OS |
Windows 10, 11, Server 2016, Server 2019, Server 2022 macOS UNIX, Linux, and BSD |
Supported Languages |
Deutsch, English, Français, Italiano, Nederlands, Русский, 日本語, 한글, 简体中文, 繁體中文, Česk, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ภาษาไทย |
Supported Browsers |
Firefox Chrome Safari Microsoft Edge |
PACKAGE |
|
Package Weight |
7.85 kg / 17.27 lbs |
Package Size |
340 (H) x 380 (W) x 324 (D) mm |
Package Contents |
AS6810T Unit x1 Quick Installation Guide AC Power Cord x1 10GbE LAN Cable(Cat 6a) x4 Flat Head Screw (for 3.5" HDD) x40 Flat Head Screw (for 2.5" HDD) x40 |
