Description

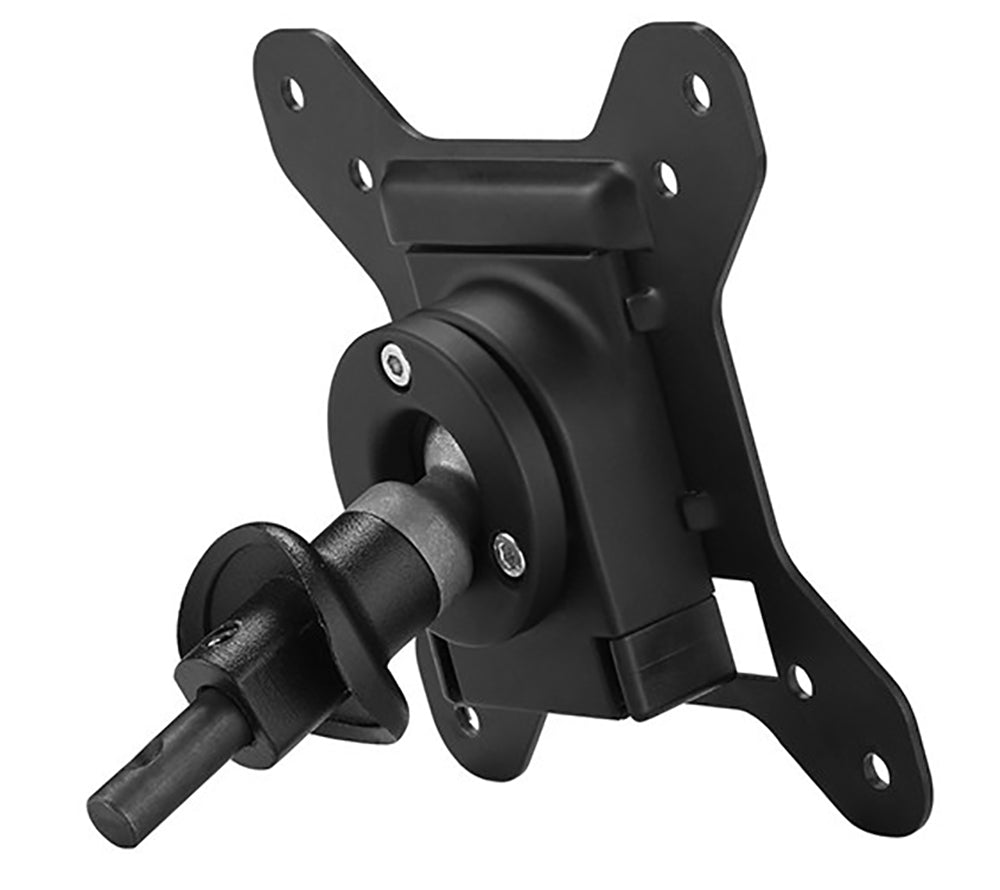

The Atdec SD-POS-VBM-B2B is an accessory for the Atdec POS Multi Mount SD-POS-VBM. It allows attachment of the second screen in a back to back configuration. This accessory features a lockable quick-release head for easy display installation and quick replacement. It has an integrated ball-joint that allows for independent tilt/pan and landscape to portrait orientation adjustment. The ball-joint incorporates tension control to for touch-screen support.
Product ordering code: to create a dual back-to-back solution two separate items have to be ordered: SD-POS-VBM (single display mount) and SD-POS-VBM-B2B (back-to-back accessory). If you already have an SD-POS-VBM you can upgrade it to a dual-display configuration by ordering the SD-POS-HA-B2B accessory.
Specifications
| Model: SD-POS-VBM-B2B Specifications | |
| General | |
| Brand | Spacedec |
| Accessory type | Multi-screen enablers |
| Compatibility | |
| Maximum supported weight (lbs) | 44 |
| VESA mounting hole pattern | 75x75, 100x100 |
| Range of movement | |
| Tilt adjustment | 20° of display adjustment in any direction |
| Pan adjustment | 20° of display adjustment in any direction |
| Maximum arm reach (inches) | 3.3 |
| Installation | |
| Quick release mechanism | Yes |
| Mounting hardware included | Yes |
| Other | |
| Warranty | 10 years |
| Material | Steel and Aluminium |
| Other features | Green Star program compliant product |
| Theft resistant design | Yes |
| Packaging dimensions | |
| Dimensions | 8"L x 5"W x 2.5"H |
| Weight | 1.4 lbs |
| Single units per master pack | 10 |
| Shipping dimensions | 10.75"L x 8.75"W x 13"H |
| Shipping weight | 14 lbs |
