Description

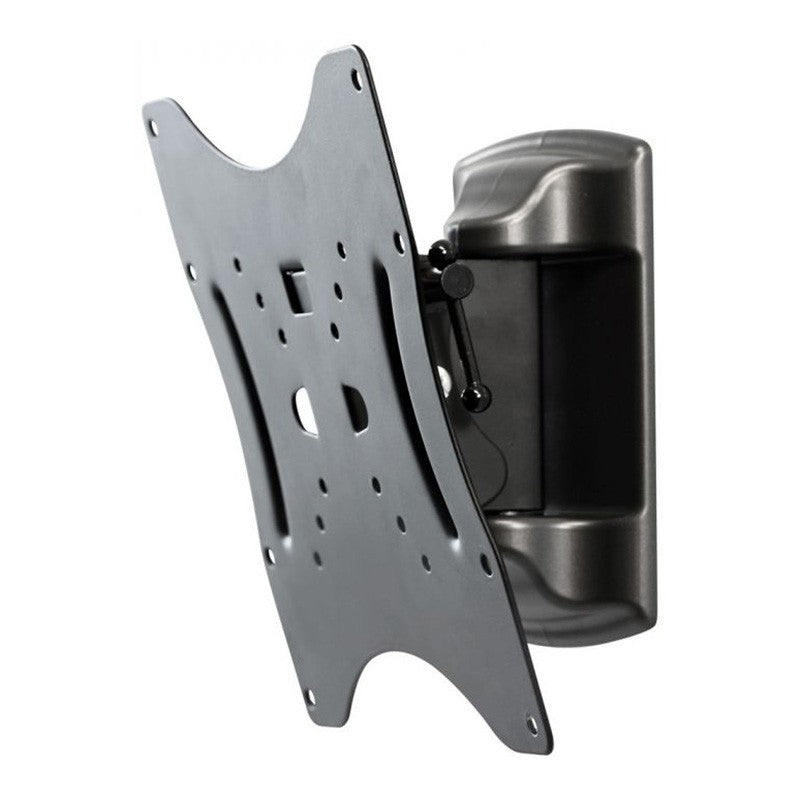

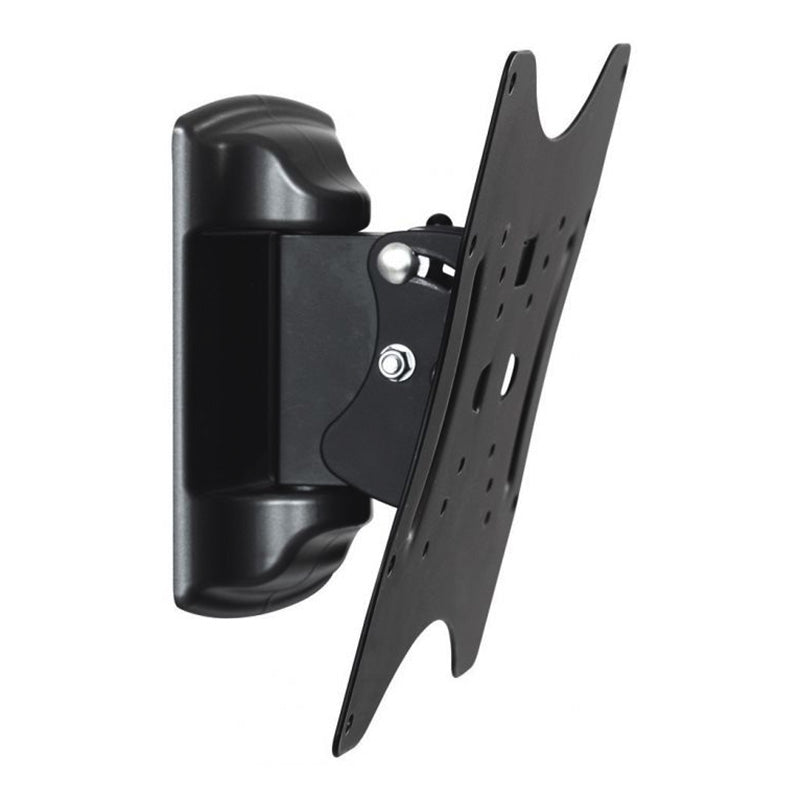

Atdec Telehook 22-50 Wall Mount Pan & Tilt
Tilt/pan mount. Max load 30kg. VESA up to 200x200
The TH-2250-VTP Tilt and Pan mount offers innovative yet easy to use technology. Installation is quick, simple and hassle-free, with all mounting hardware included and compatibility with five different VESA mounting hole patterns. Screen attachment or removal is effortless, using the quick attachment mechanism with the option of engaging the enhanced security feature. Once attached, viewing angle impact can be optimised using simple tool less tilt and pan adjustment features.
Adjustable tilt and pan
Tool-less tilt adjustment
All mounting hardware included
Comes pre-assembled for quick and easy installation
SPECIFICATIONS:
Maximum supported weight, per display (kg) |
30 |
VESA mounting hole pattern |
50x50, 75x75, 100x100, 200x100, 200x200 |
Wall mounting type |
Masonry , Timber stud |
Minimum number of studs recommended |
1 |
Range of movement |
Tilt |
Tilt adjustment |
15° upward and 15° downward |
Pan adjustment |
30° left and 30° right |
Minimum distance from wall (mm) |
80 |
Maximum arm reach (mm) |
80 |
Portrait screen installation |
Yes |
Security features |
Security screw to deter unauthorised removal |
Mounting hardware included |
Yes |
Warranty |
10 years |
Material |
Steel |
Other features |
Quick release mechanism for easy display attachment/removal |
Packaging dimensions |
Length, single unit (cm) 26 Width, single unit (cm) 22.5 Height, single box (mm) 9 Weight, single unit (kg) 1.82 Single units per master pack 8 Length, master carton (cm) 47 Width, master carton (cm) 27 Height, master carton (cm) 37.5 Weight, master carton (kg) 15.26 |
