Description

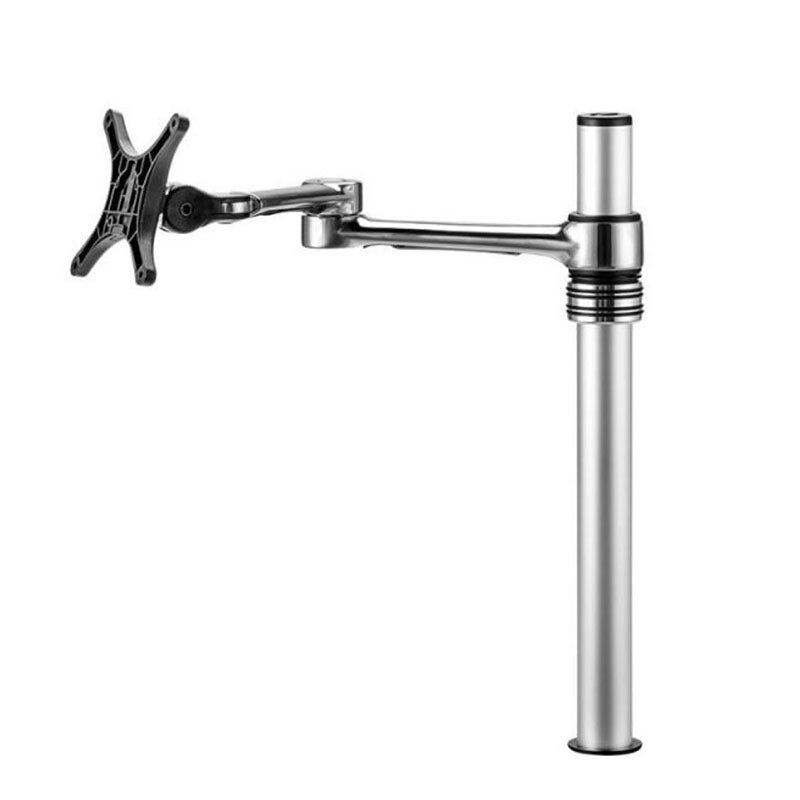

525mm long pole with 422mm articulated arm
The AF-AT is the ideal ergonomic and space saving desk monitor mount for corporate or home offices. This beautifully designed and engineered mount delivers exceptional functionality including focal distance, display height settings, and viewing angle fine-tuning. Optional 360° rotation makes sharing your screen simple, and ball bearing arm joints ensure supple, long-life operation. Quick release/attachment display mechanism makes installation and swapping monitors a one-person operation and cables are cleverly managed for a clean and professional look.
Features
Ergonomic
Landscape or portrait viewing
Screen sharing capability
Engineered bearing joints for smooth movement
Quick-release display head with security screw
Glare control and optimal viewing angle adjustment via tilt and pan capabilities
Focal distance control
Individual monitor height requirements settings
Offset displays position
Easy upgrade to dual display mount for notebooks or additional monitors
Tool-less height adjustment
Advanced, integrated cable management for a clean look
Lightweight, durable, recyclable aluminium construction
Available in silver, black, or white
Sleek, supple design
SPECIFICATIONS:
Product Details | |
Product code |
AF-AT |
Upgradable to carry additional display |
Yes |
Material |
Aluminium and plastic |
Colour Options |
Silver, black, silver/white |
Desk fixing options |
Bolt through and desk clamp options included |
Compatibility | |
Minimum display weight, kg |
0.00 |
Flat screen: maximum supported weight, kg |
8.00 |
Curved screen: maximum supported weight, kg |
5.5 |
VESA mounting hole pattern, mm |
75x75, 100x100 |
Maximum desk thickness allowed (mm) |
76 (Desk Clamp); 40 (Bolt-through) |
Range of Movement | |
Spring assisted height adjustability |
No |
Rotation around pole |
360° rotation/ 180° with rotation limiter |
Tilt adjustment |
-70° to 70° |
Pan adjustment |
180° at the display head |
Landscape to portrait screen rotation |
Yes |
Height adjustable |
Yes |
Maximum arm reach (mm) |
422 |
Packaging dimensions | |
Length, single unit (cm) |
57.5 |
Width, single unit (cm) |
22.9 |
Height, single box (cm) |
9.3 |
Weight, master carton, kg |
17.60 |
Weight, single unit, kg |
2.80 |
Single units per master pack |
6 |
Length, master carton (cm) |
59.5 |
Width, master carton (cm) |
45.5 |
Height, master carton (cm) |
30 |
