Aten CS-1792 2 Port USB HDMI KVMP Switch with DOLBY Audio, USB Hub - Cables Included
Roll over image to zoom in Click on image to zoom
Aten CS-1792 2 Port USB HDMI KVMP Switch with DOLBY Audio, USB Hub - Cables Included

Aten CS-1792 2 Port USB HDMI KVMP Switch with DOLBY Audio, USB Hub - Cables Included

Aten
Price:
$394.55

Description

Product Name:  Aten CS-1792 2 Port USB HDMI KVMP Switch with DOLBY Audio, USB Hub - Cables Included
Model Number: CS1792C-AT-U
Brand: Aten
Manufacturer Warranty: 1 Year-

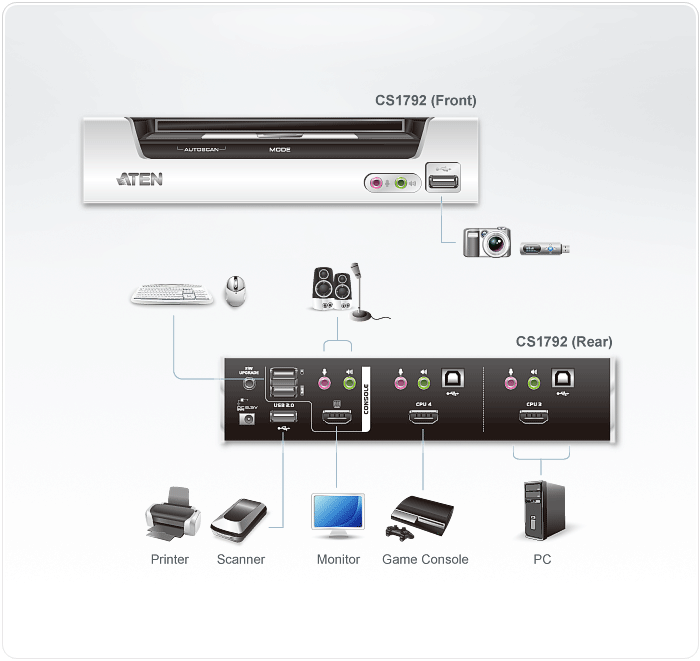

With its unique design and innovative features, the CubiQ CS1792 USB 2.0 HDMI KVMP Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.
       The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.
       Ideal for multimedia applications in the home or office, the CubiQ CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.



Package Contents

  • 1x CS1792 USB 2.0 HDMI KVMP Switch

  • 2x Custom HDMI KVM Cable Sets

  • 1x Firmware Upgrade Cable

  • 1x Power Adapter

  • 1x User Instructions
Features

  • 2-port HDMI USB 2.0 KVMP Switch

  • One USB console controls two HDMI-interface computers and two additional USB devices

  • 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification

  • Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys

  • HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant

  • Dolby True HD and DTS HD Master Audio support

  • Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)

  • Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer

  • Supports widescreen resolutions

  • Multiplatform support - Windows, Linux,and Mac

  • Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice

  • Video DynaSync - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution

  • Complete keyboard emulation for error-free booting

  • Mac keyboard support and emulation*

  • Auto Scan Mode for monitoring all computers and HDMI devices

  • Firmware Upgradable

         * 1. PC keyboard combinations emulate Mac Keyboards
         2. Mac keyboards only work with their own computers
Computer Connections 2
Port Selection Front Panel Pushbuttons; Hotkeys
Connectors Console          PortsKeyboard1 x USB Type A Female          (Black; rear panel)Video1 x HDMI Type A Female (Black)Mouse1 x USB Type A Female          (Black; rear panel)Speaker2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear)Mic.2 x Mini Stereo Jack Female          (Pink; 1 x front, 1 x rear)KVM          PortsKeyboard / Mouse2 x USB Type B Female (White)Video2 x HDMI Type A Female (Black)Speaker2 x Mini Stereo Jack Female (Green)Mic.2 x Mini Stereo Jack Female (Pink)F/W Upgrade1 x 4-conductor 3.5mm Jack (Black)Power1 x DC JackUSB 2.0 Hub2 x USB Type A Female          (White; 1 x front panel; 1 x rear panel)
Switches Selected 3 x Pushbutton
LEDs Audio 3 (Green)
   KVM 3 (Orange)
   USB 3 (Green)
Emulation Keyboard/Mouse USB
Video 1080p (HDTV) / 1920 x 1200 (DVI)
Scan Interval 199 secs. (5 secs. default)
Power Consumption DC 5.3 V, 3.2 W
Environment Operating Temp. 0-50°C
   Storage Temp. -20-60°C
   Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal, Plastic
   Weight 0.42 kg
   Dimensions
   (L x W x H) 20.63x7.24x4.56cm
Note * The specification and pictures are subject to change without notice.
   * All trademarks and logos are the properties of their respective holders.


* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
