Description
|

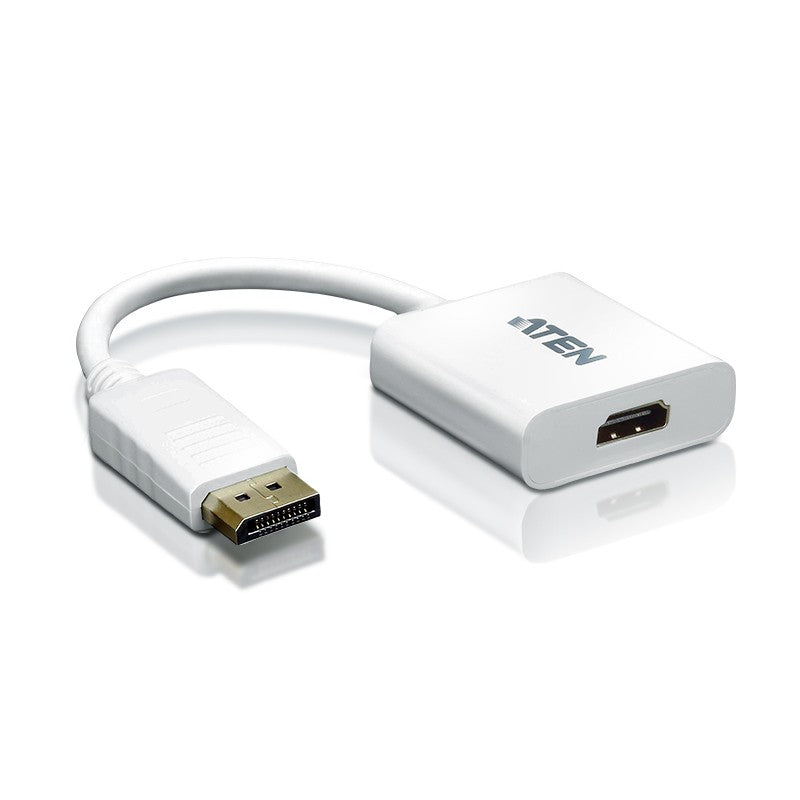

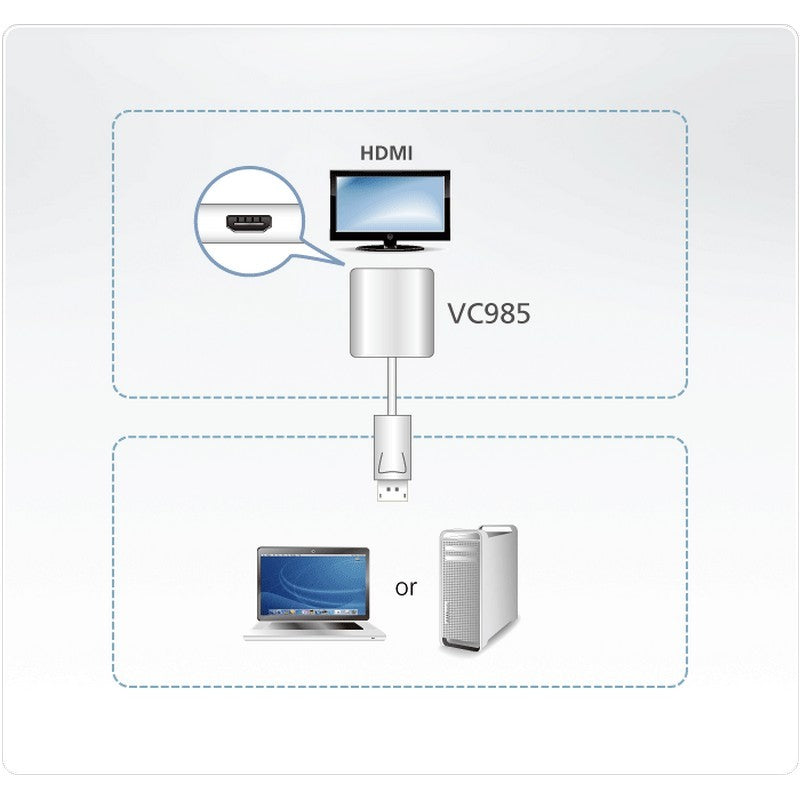

The VC985 is a DisplayPort to HDMI adapter, allowing you to connect your device™s DisplayPort output to the HDMI input of a TV or other display. The VC985 provide a cost-effective yet high performance signal conversion solution. This adapter is therefore perfect for computers and notebooks, supporting display resolutions of up to 1080p (1920x1080@60Hz). |
| Features | Converts DisplayPort signals to HDMI output DisplayPort 1.2 a compliant Supports VGA, SVGA, XGA, SXGA, UXGA and resolutions up to 1080p (HDTV) Audio Supported No software or driver installation required |
| Video Input | Interfaces 1 x DisplayPort Male (White) |
| Video Output | Interfaces 1 x HDMI Type A female (Black) |
| Video | Max. Pixel Clock 165MHz Compliance DP1.1a Max. Resolution 1920 x 1080@60HZ |
| Audio | Output 1 x HDMI Type A Female (Black) |
| Environmental | Humidity 0 - 80% RH, Non-Condensing Operating Temperature 0 - 50 ºC Storage Temperature -2060 ºC |
| Physical Properties | Housing Plastic Weight 0.04 kg ( 0.09 lb ) Dimensions (L x W x H) 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
