Description
|

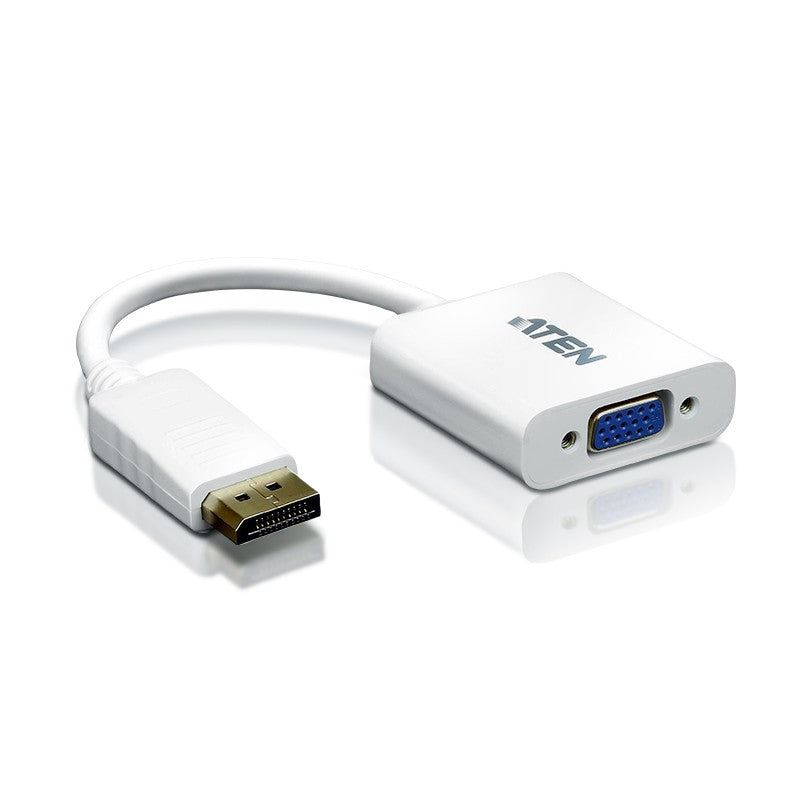

The VC925 provide a cost-effective yet high performance signal conversion solution. This adapter is therefore perfect for computers and notebooks, supporting display resolutions of up to WUXGA (1920x1200@60Hz). |

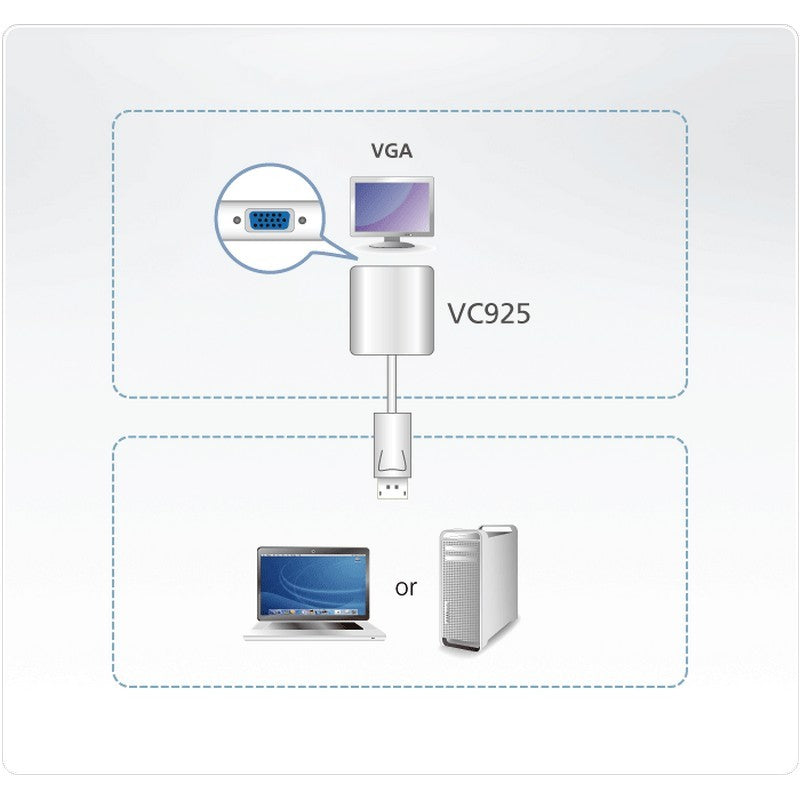

| Features | Converts DisplayPort signals to VGA output DisplayPort 1.2 a compliant Supports VGA, SVGA, XGA, SXGA, UXGA and resolutions up to 1920x1200 (PC) / 1080p (HDTV) No software or driver installation required |
| Video Input | Interfaces 1 x DisplayPort Male (White) |
| Video Output | Interfaces 1 x HDB-15 Female (Blue) |
| Video | Max. Pixel Clock 165 MHz Max. Resolution 1920x1200@60Hz(PC)/1080p(HDTV) Compliance DP1.1a |
| Environmental | Operating Temperature 0 - 50 ºC Storage Temperature -20 - 60 ºC Humidity 0 - 80% RH, Non-Condensing |
| Physical Properties | Housing Plastic Weight 0.04 kg ( 0.1 lb ) Dimensions (L x W x H) 18.00 x 4.50 x 1.50 cm (7.09 x 1.77 x 0.59 in.) |
