Description

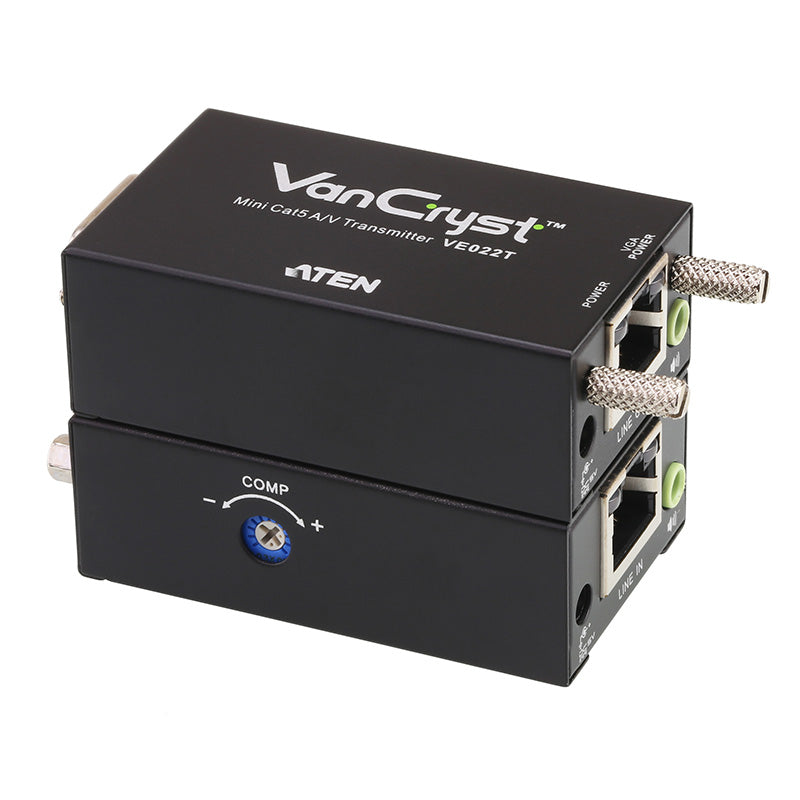

Aten Mini Cat5 VGA/Audio Extender
The VE022 Mini Cat 5 A/V Extender allows you to extend the distance between your video/audio source and display devices by as much as 150 meters, using a Cat 5e cable, providing an easy way to replace heavy and expensive VGA cables. With hot-plugging support, you can quickly add or remove the VE022 transmitter/receiver connected to the source/display device without having to power down devices.
The VE022 Mini Cat 5 A/V Extender is a compact, convenient and economical addition to your video/audio setup.
Features:
Uses Cat 5e cable to extend audio and video transmission up to 150 m
Superior video quality – screen resolutions include 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(100 m) and 1280 x 1024@60Hz(150 m)
Adjustable Gain Control lets you manually adjust signal strength to compensate for distance
Audio enabled (mono)
Convenient docking interface for mounting the VE022 on the display device.
Eliminates the need for bulky VGA cables
Easy installation
SPECIFICATIONS:
VE022R |
VE022T |
|

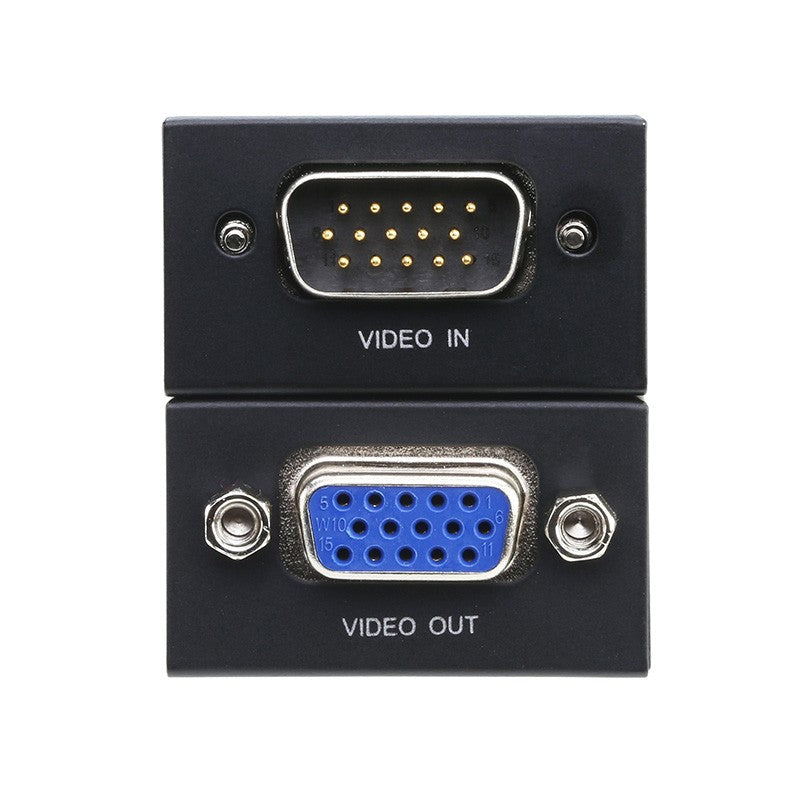

VIDEO INPUT | ||
Interfaces |
N/A |
1 x HDB-15 Male (Black) |
Impedance |
N/A |
75 Ω |
VIDEO OUTPUT | ||
Interfaces |
1 x HDB-15 Female (Blue) |
N/A |
Impedance |
75 Ω |
N/A |
VIDEO | ||
Max. Bandwidth |
300 MHz |
300 MHz |
Max. Resolutions / Distance |
Up to 1920 x 1200@30m; 1280 x 1024@150m |
Up to 1920 x 1200@30m; 1280 x 1024@150m |

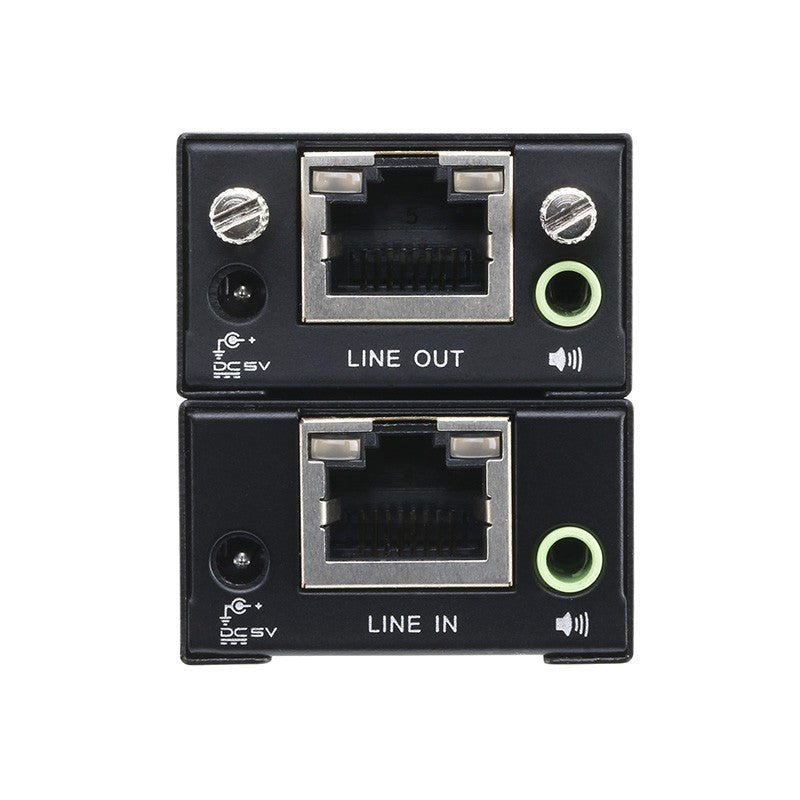

AUDIO | ||
Input |
N/A |
1 x Mini Stereo Jack Female (Green) |
Output |
1 x Mini Stereo Jack Female (Green) |
N/A |
CONNECTORS | ||
Power |
1 x DC Jack |
1 x DC Jack |
Power Consumption |
DC5V:0.95W:4BTU |
DC5V:0.62W:3BTU |
ENVIRONMENTAL | ||
Operating Temperature |
0 - 50°C |
0 - 50°C |
Storage Temperature |
-20 - 60°C |
-20 - 60°C |
Humidity |
0 - 80% RH, Non-Condensing |
0 - 80% RH, Non-Condensing |
PHYSICAL PROPERTIES | ||
Housing |
Metal |
Metal |
Weight |
0.05 kg ( 0.11 lb ) |
0.05 kg ( 0.11 lb ) |
Dimensions (L x W x H) |
6.42 x 3.53 x 2.06 cm |
7.35 x 3.53 x 2.06 cm |
Carton Lot |
20 pcs |
20 pcs |
Package Contents |
1x VE022T Mini Cat 5 A/V Transmitter 1x VE022R Mini Cat 5 A/V Receiver 1x Power Adapter 1x VGA Cable (35 cm) 1x Audio Cable (40 cm) 1x Dock Mount kit 1x User Instructions 1x USB to DC Power Cord |
|
Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
|
