Audioengine HD3 Powered Desktop Speakers Pair Satin Black

Type

Powered Bluetooth aptX HD speaker system

Amplifier Type

Class AB

Power Output

60 W peak power total (15 W RMS / 30 W peak per channel), AES

Drivers

2.75” aramid fiber woofers

0.75“ Silk dome tweeters

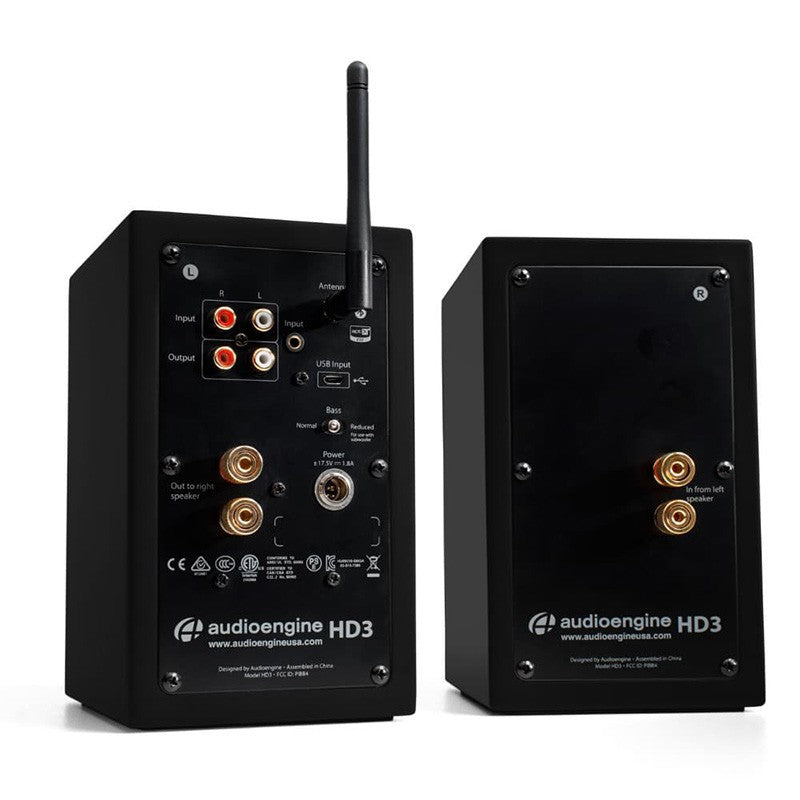

Inputs

3.5 mm stereo mini-jack, RCA L/R, USB, Bluetooth

Outputs

RCA variable line-out, 3.5 mm mini-jack headphone out

Input Voltages

110-240 V 50/60 Hz auto-switching

SNR

>95 dB (typical A-weighted)

THD+N

<0.05% at all power settings

Crosstalk

<50 dB

Frequency Response

65 Hz-22 kHz ±2.0 dB

Input Impedence

5K ohms unbalanced

Protection

Output current limiting, thermal over-temperature, power on/off transient protection

Power Consumption

Idle: 10W

BLUETOOTH SPECIFICATIONS

Internal D/A Converter

PCM 5102

Input Bit Depth

24 bit (padded)

Bluetooth Receiver Type

Bluetooth 5.0

Supported Codecs

aptX HD, aptX, AAC, SBC

Wireless Operation Range

Up to 100 ft (30 m) typical

Input Data Rate

Determined by Bluetooth

Wireless Latency

~30 milliseconds (ms)

USB SPECIFICATIONS

Connector Type

Micro-USB

USB Device Class

USB 1.1 or above

Input Bit Depth

24 bit (padded)

Input Sample Rate

44.1 kHz/48 kHz

HEADPHONE AMP SPECIFICATIONS

Headphone Amp Type

OPA2134

Full-scale Headphone Output Level

2.0 V RMS

Output Impedence

2 ohms

Recommended Headphone Impedence Level

10 ohms to 10K ohms

WEIGHTS AND MEASURES

Dimensions (HWD)

Each speaker – 7″(17.8 cm) x 4.25″ (10.8 cm) x 5.5″ (14 cm)

Weight

Left (powered) – 4 lb (1.8 kg)

Right (passive) – 3.4 lb (1.5 kg)

Total Shipping Weight

10 lb (4.6 kg)

Shipping Box Dimensions (LWH)

11.75″ (30 cm) x 8.8″ (22.5 cm) x 11.6″ (29.5 cm)

OTHERS

Environmental Requirements

Operating temperature: 32 degrees F to 95 degrees F

Non-operating temperature: -4 degrees F to 113 degrees F

Relative   humidity: 5% to 95% non-condensing

Materials and construction

0.7″ (18 mm) thick MDF cabinets with real wood veneer

0.75″ (20 mm) silk dome tweeters with neodymium magnets

2.75″ (70 mm) aramid fiber woofers with advanced voice coils
