Description
SPECIFICATIONS:
GENERAL SPECIFICATIONS |
|
Type |

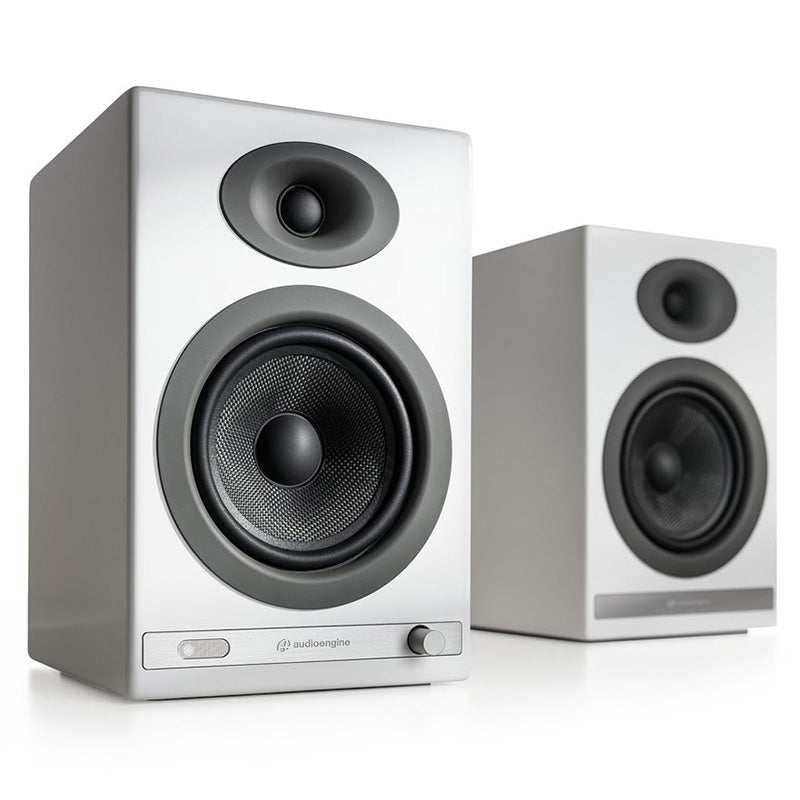

Powered Bluetooth aptX HD speaker system |
Amplifier Type |
Class AB |
Power Output |
150 W peak power total (50 W RMS / 75 W peak per channel), AES |
Drivers |
5" aramid fiber woofers .75" silk dome tweeters |

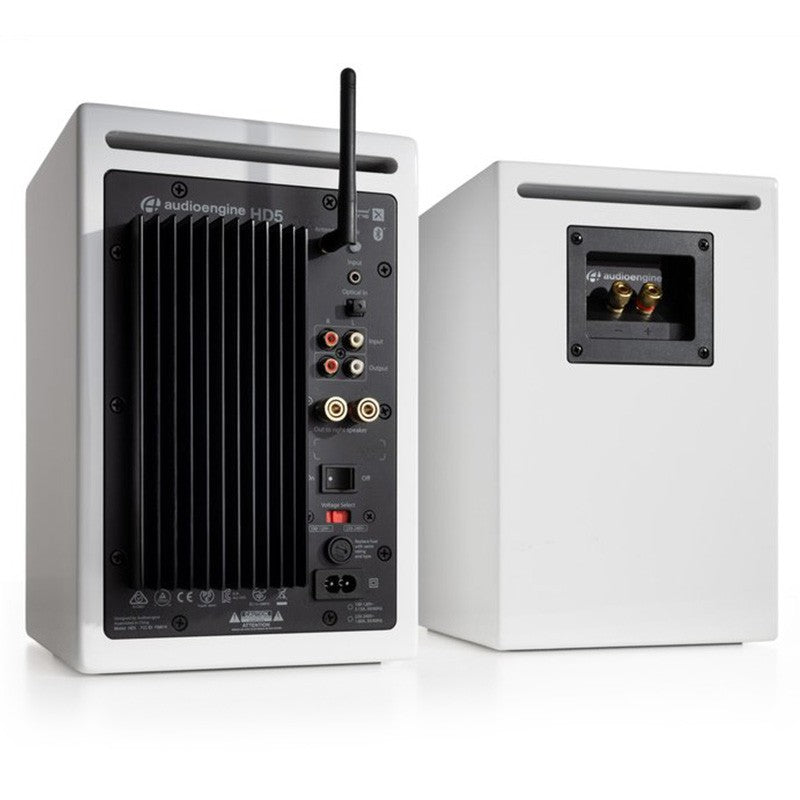

Inputs |
3.5 mm stereo mini-jack, RCA L/R, digital optical (SPDIF,) Bluetooth aptX HD |
Outputs |
RCA variable line-out |
Input Voltages |
115/240 V, 50/60 Hz manually switchable |
SNR |
Greater than 95 dB (typical A-weighted) |
THD+N |
Less than 0.05% at all power settings |
Crosstalk |
<50 dB |
Frequency Response |
50 Hz-22 kHz ±1.5 dB |
Analog Input Impedance |
48K ohms unbalanced (mini-jack and RCA inputs) |
Protection |
Output current limiting, thermal over-temperature, power on/off transient protection, replaceable external main fuse |
Power Consumption |
Idle: 10 W Mute: 6 W Sleep: 4 W |
OPTICAL SPECIFICATIONS |
|
Internal D/A converter |
AKM AK4396 |
Input Bit Depth |
Up to 24 bit native |
Sample Rate |
Up to 192 kHz native |
BLUETOOTH SPECIFICATIONS |
|
Internal D/A Converter |
AKM AK4396 |
Input Bit Depth |
24 bit (padded) |
Bluetooth Receiver Type |
Bluetooth 5.0 |
Supported Codecs |
aptX HD, aptX, AAC, SBC |
Wireless Operation Range |
Up to 100 ft (30 m) typical |
Input Data Rate |
Determined by Bluetooth |
Wireless Latency |
~30 milliseconds (ms) |
WEIGHTS AND MEASURES |
|
Dimensions (HWD) |
Left speaker (active) Dimensions (HWD) Dimensions: 11″ (28 cm) x 7.16″ (18.2 cm) x 7.79″ (19.8 cm)
Right speaker (passive) Dimensions (HWD) Dimensions: 11″ (28 cm) x 7.16″ (18.2 cm) x 7.79″ (19.8 cm) |
Weight |
Left (active) - 17.5 lb (8 kg) Right (passive) - 12.5 lb (5.5 kg) |
Total Shipping Weight |
33.5 lb (15 kg) |
Shipping Box Dimensions (LWH) |
20" (51 cm) x 15" (38 cm) x 17" (43 cm) |
