Description
SPECIFICATIONS:
GENERAL |
|
Voltage (Vac) / Frequency (Hz) |
115 - 240 / 50 - 60 |
Dimensions (L x W x H) (mm) |
200 x 150 x 86 |
ATX 12V 3.0 / EPS 12V 2.92 |
✓ / ✓ |
Wire-free (DC-side) |
✓ |
Silent Wings fan (mm) |
135 |
Noise level (dB(A)) at 10 / 20 / 50 / 100% load |
9.5 / 9.6 / 9.8 / 31.1 |
12V rail (Multi-Rail) / 12V Single Rail |
6 / ✓ |
Overclocking Key / Jumper |
✓ / ✓ |
Power Good signal |
100-150ms |
PFC |
active |
Certification |
80 PLUS® Titanium |
Efficiency (%) at 230V, 2% / 10% / 20 % / 50% / 100% load |
73.7 / 92.6 / 94.2 / 94.5 / 92.2 |
Energy Star 8.0 compatible |
✓ |
ErP ready / Power in stand-by (W) |
✓ / <0.06 |
OCP, OVP, UVP, SCP, OPP, OTP, SIP |
✓ |
Lifetime of PSU at 25°C (h) |
>100,000 |

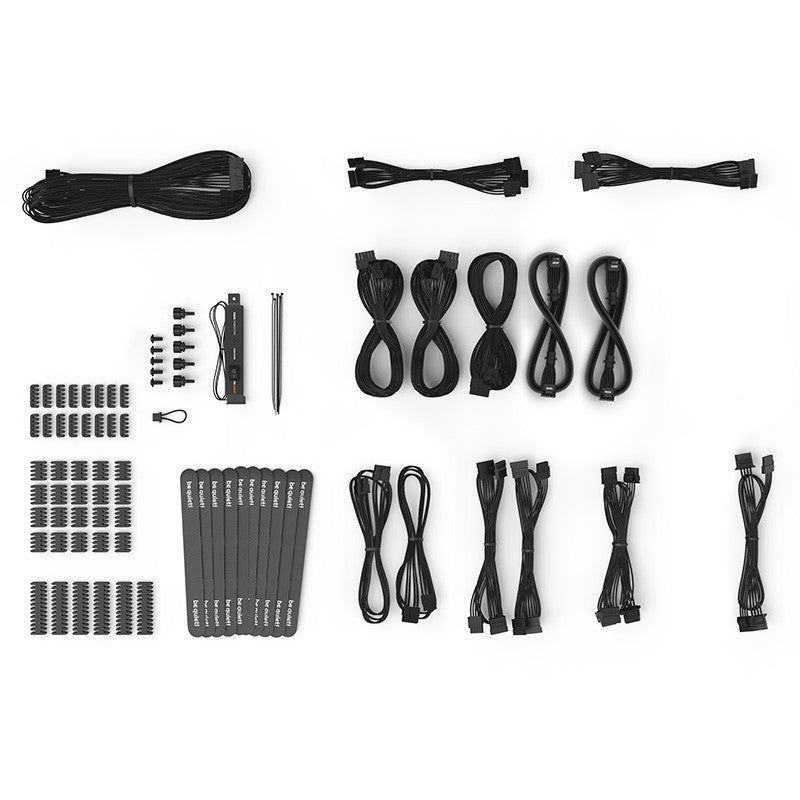

CABLES |
|
No. of cables |
16 |
Maximum cable length (cm) |
105 |
Length of ATX-connection cable (cm) |
60 |
Cable management |
Modular |
Sleeved cables |
✓ |
CONNECTORS |
|
ATX motherboard (20+4 pin) |
✓ |
12VHPWR cable | W |
2 | 600 |
12VHPWR combined power |
1000W |
PCI express (6+2 pin) |
6 |
P8-/P4-connector |
1x P4+4 / 1x P8 |
S-ATA |
16 |
P-ATA |
5 |
