Description
SPECIFICATIONS:
GENERAL DATA |
|
Model |

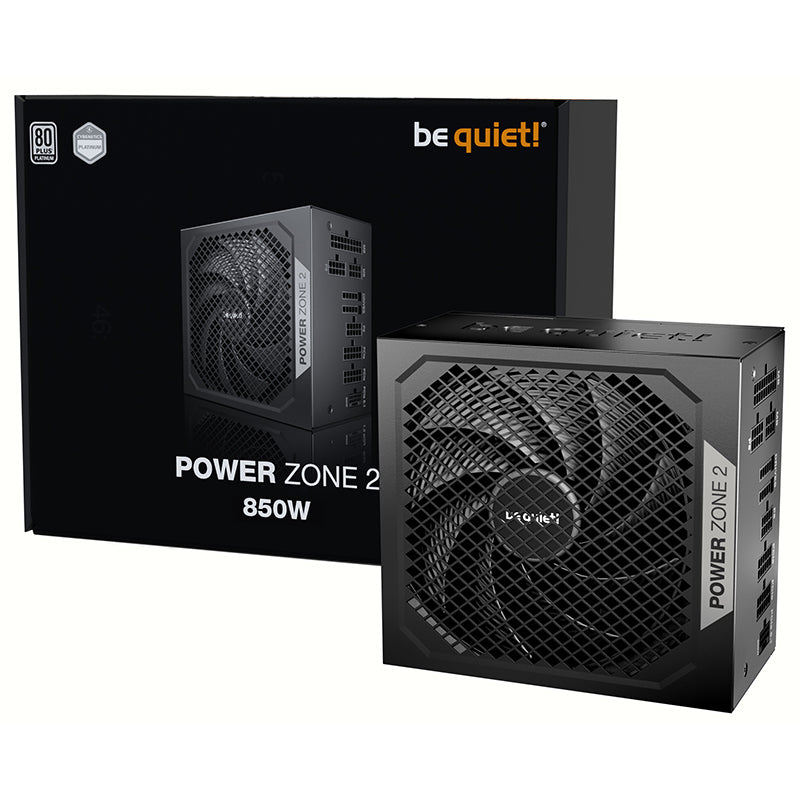

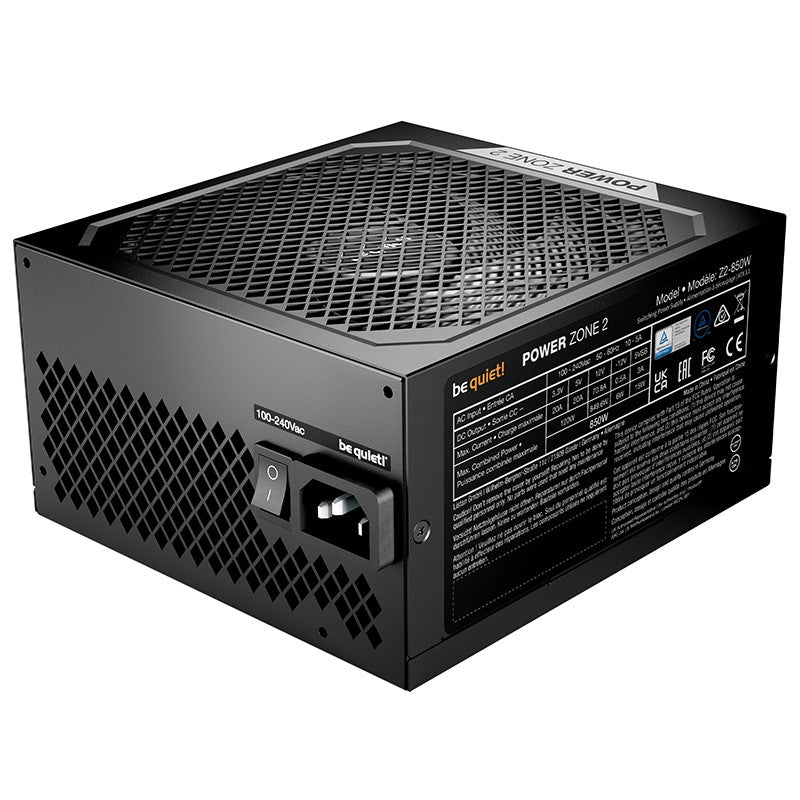

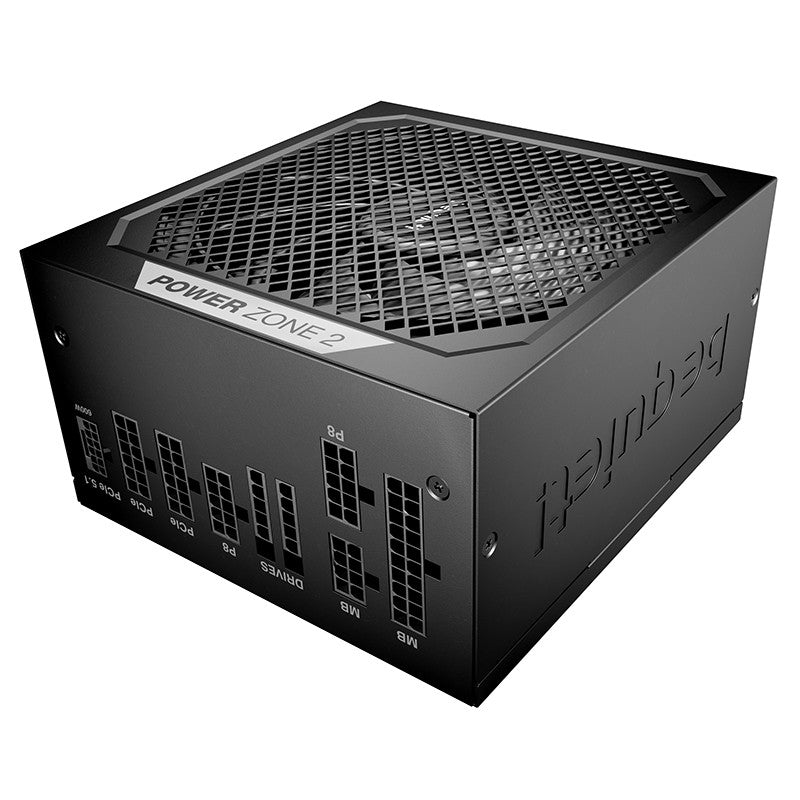

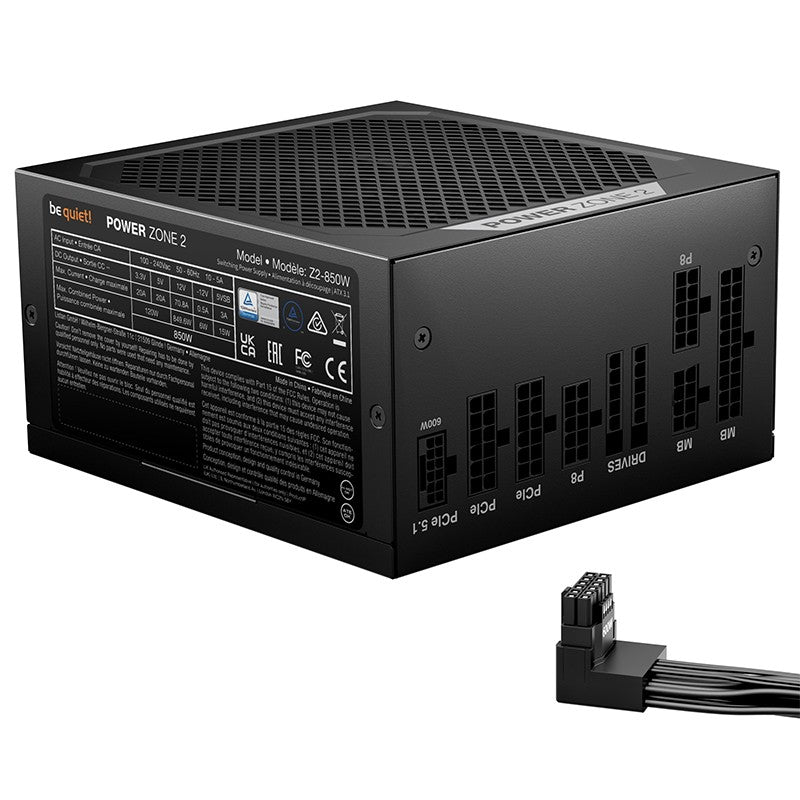

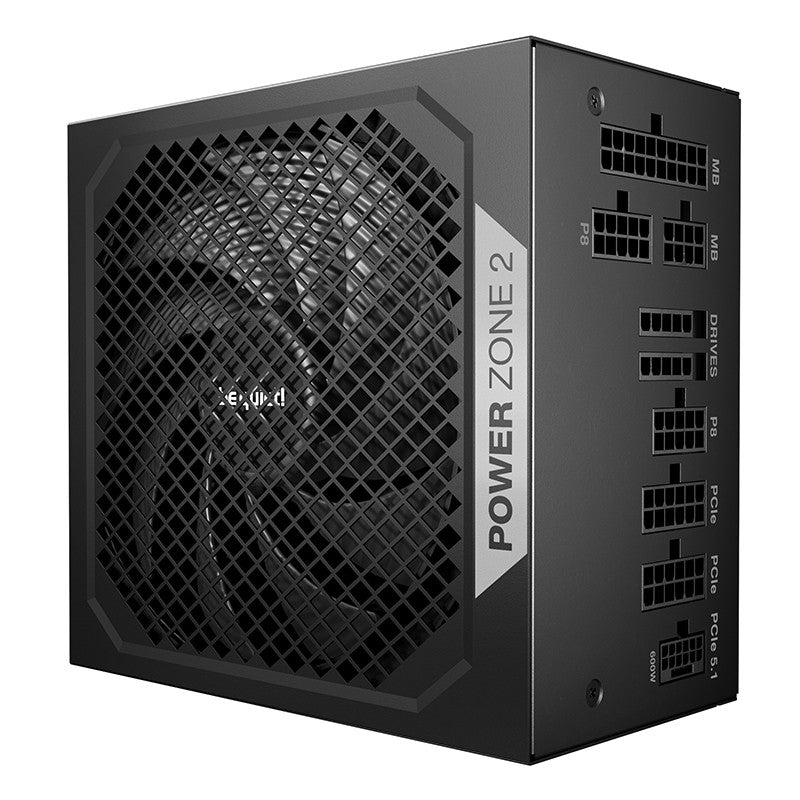

Power Zone 2 850W |
Continuous power (W) |
850 |
Peak power (W) |
920 |
Form factor |
Version 3.1 |
Form factor EPS 12V |
Version 2.92 |
Topology |
LLC + SR + DC/DC |
Voltage (Vac) |
100 - 240 |
Frequency (Hz) |
50 - 60 |
Input current (A) |
10 / 5 |
Power factor at 100% load |
>0.98 |
Modern standby |
✓ |
Power consumption in standby (W) |
<0.18 |
Average life time (h / 25°C) |
>100,000 |
Operating temperature up to (°C) |
40 |
EFFICIENCY |
|
80 PLUS certification |
Platinum |
Efficiency (%) at 230V, 2% load |
68.3 |
Efficiency (%) at 230V, 10% load |
89.9 |
Efficiency (%) at 230V, 20% load |
93.0 |
Efficiency (%) at 230V, 50% load |
94.1 |
Efficiency (%) at 230V, 100% load |
92.3 |
FAN AND COOLING TECHNOLOGY |
|
Cybenetics Noise Rating |
A+ |
Fan |
Pure Wings 3 |
Fan size (mm) |
140 |
Bearing technology |
Rifle |
Motor technology |
4-pole fan motor |
Max. fan speed (rpm) |
2100 |
dB(A) at 10% load |
6.5 |
dB(A) at 20% load |
6.5 |
dB(A) at 50% load |
6.5 |
dB(A) at 100% load |
24.9 |
OUTPUT |
|
12V single rail operation |
✓ |
+3.3V (A) |
20 |
+5V (A) |
20 |
+12V1 (A) |
70.8 |
+12V2 (A) |
N/A |
+12V3 (A) |
N/A |
+12V4 (A) |
N/A |
+12V5 (A) |
N/A |
+12V6 (A) |
N/A |
-12V (A) |
0.5 |
+5Vsb (A) |
3 |
Max. combined power 12V (W) |
849.6 |
Max. combined power 12V-2x6 (W) |
600 |
Max. combined power 3.3V + 5V (W) |
120 |
Hold-up time at 100% load (ms) |
21.1 |
Hold-up time at 80% load (ms) |
29.0 |
Power good signal (ms) |
100 - 150 |

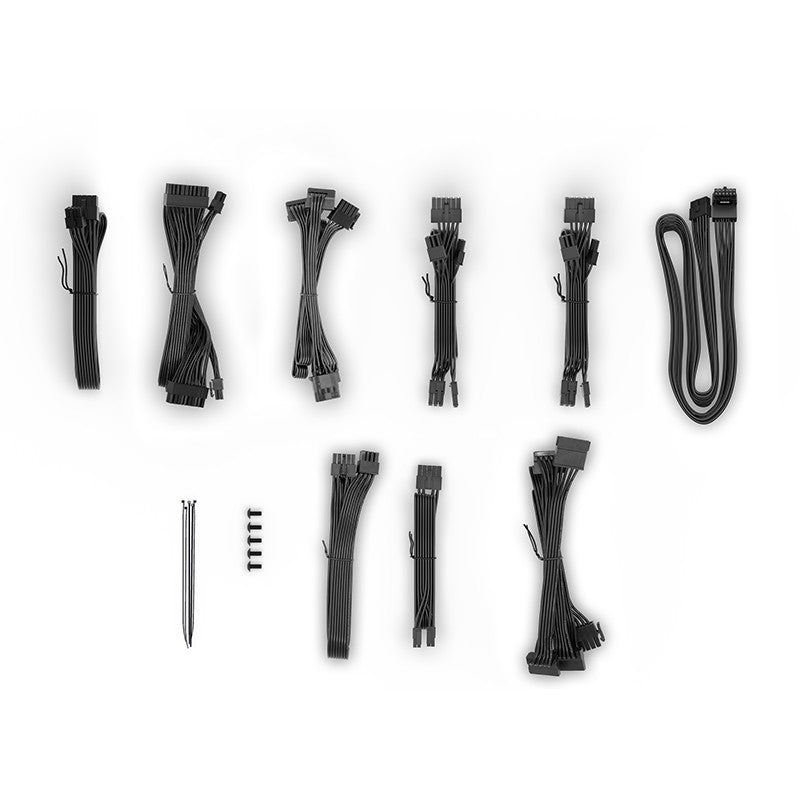

CABLES AND CONNECTORS |
|
Modular cables |
✓ |
Sleeved cables |
✓ |
Flat cables |
✓ |
Maximum cable length (cm) |
100 |
Cable length to motherboard (cm) |
60 |
No. of cables |
8 |
ATX-Motherboard (20+4-pin) |
1 |
P4+4 (CPU) |
1 |
P8 (CPU) |
1 |
P4 (CPU) |
1 |
12V-2x6 cables |
1 |
PCI-e 6+2-pin (GPU) |
3 |
SATA |
7 |
PATA |
1 |
PROTECTION |
|
OTP (over temperature protection) |
✓ |
OCP (over current protection) |
✓ |
OPP (over power protection) |
✓ |
SCP (short circuit protection) |
✓ |
OVP (over Voltage protection) |
✓ |
UVP (under Voltage protection) |
✓ |
SIP (Surge & Inrush protection) |
✓ |
SAFETY CERTIFICATION |
|
CB |
✓ |
CE |
✓ |
cTUVus |
✓ |
CU |
✓ |
FCC |
✓ |
TÜV |
✓ |
UKCA |
✓ |
ENVIRONMENTAL DIRECTIVES |
|
Energy Star |
8.0 |
ErP |
✓ |
WEEE |
✓ |
RoHS |
✓ |
Triman |
✓ |
SCOPE OF DELIVERY |
|
Screws |
✓ |
Cable ties |
✓ |
User manual languages |
DE, EN, FR, PL, ES, RU, UA |
CASING |
|
Dimensions without cable (L x W x H), (mm) |
160 x 150 x 86 |
Color |
Black |
