Description
SPECIFICATIONS:
GENERAL DATA |
|
Model |

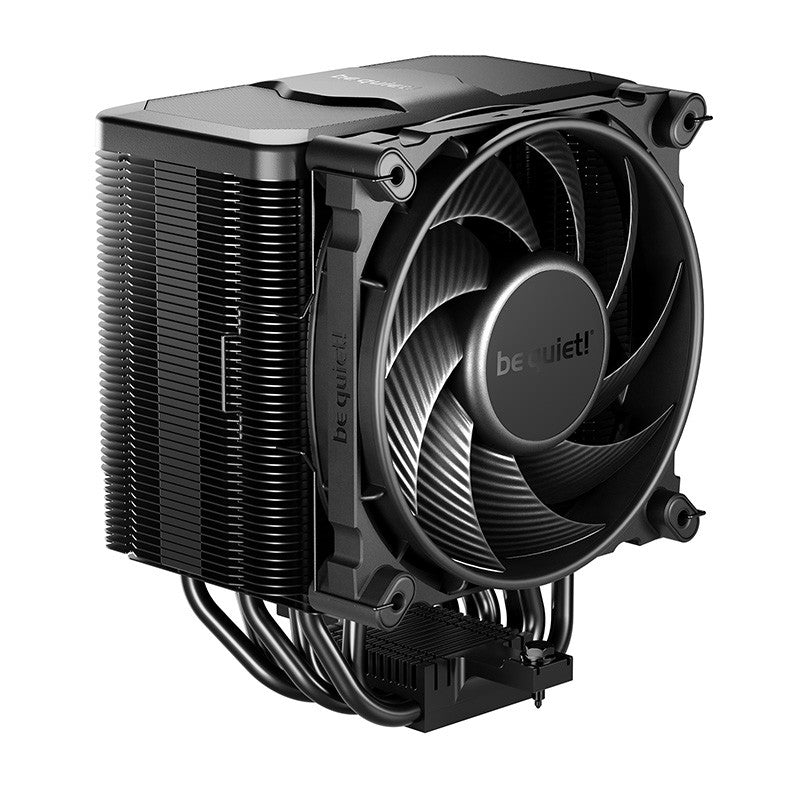

Dark Rock 5 |
TDP (W) |
210 |
Color option |
Black |
Overall dimensions without mounting material (L x W x H), (mm) |
101 x 136 x 161 |
Total weight (kg) |
1.03 |
Socket compatibility Intel |
1700 / 1200 / 1150 / 1151 / 1155 |
Socket compatibility AMD |
AM5 / AM4 |
Overall noise level (dB(A)) @ 50/75/100% (rpm) |
11.9 / 23.2 / 29.8 |
Number of fans |
1 |
HEATSINK SPECIFICATIONS |
|
Dimensions (L x W x H), (mm) |
76 x 136 x 161 |
Fin material |
Aluminum |
Surface treatment |
Ceramic coating |
Base material |
Copper |
CPU contact surface |
CNC machined |
Heatpipe number / Diameter (mm) |
6 / 6 |
FAN SPECIFICATIONS |
|
Fan model |
Silent Wings 4 120mm PWM |
Fan dimensions (mm) |
120 x 120 x 25 |
Speed @ 100% PWM (rpm) |
2100 |
Airflow at 100% PWM / 12V (CFM / m3/h) |
55.0 / 93.5 |
Air Pressure at 100% PWM / 12V (mm H2O) |
2.73 |
Bearing technology |
Fluid Dynamic Bearing |
Motor technology |
6-pole fan motor |
Rated Voltage (V) |
12 |
Input current (A) |
0.10 |
Safety current (A) |
0.20 |
Input power (W) |
2.4 |
Connector |
4-pin PWM |
Cable length (mm) |
220 |
Lifespan (h / 25°C) |
300,000 |
ACCESSORIES |
|
Thermal grease (Type) |
Included |
Mounting set |
Intel & AMD |
Screwdriver |
✓ |
User manual languages |
CN, DE, EN, ES, FR, JP, PL, RU, TW |
