Description
SPECIFICATIONS:
GENERAL |
|
Model |

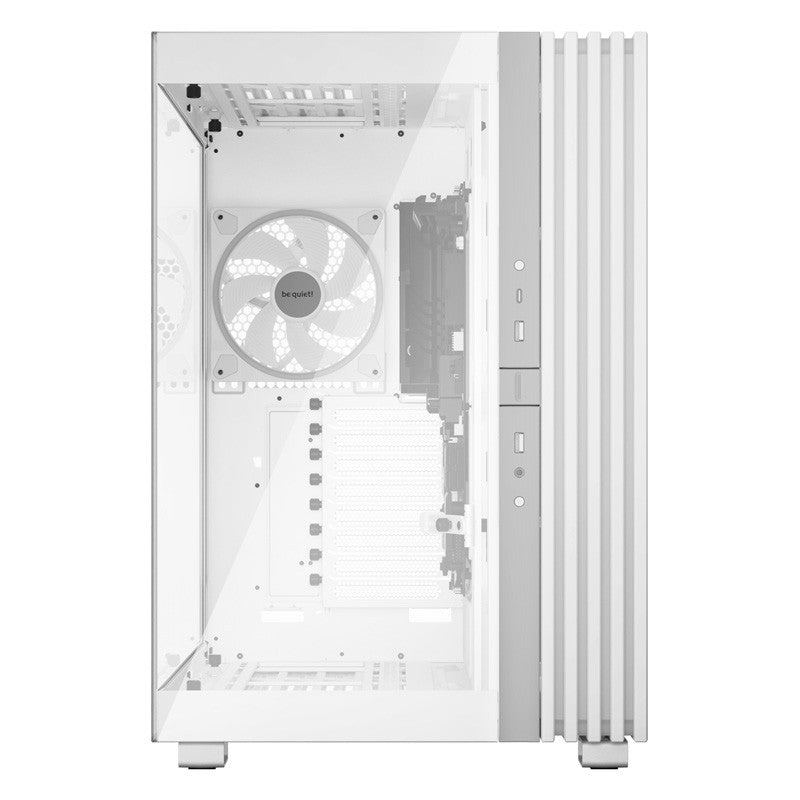

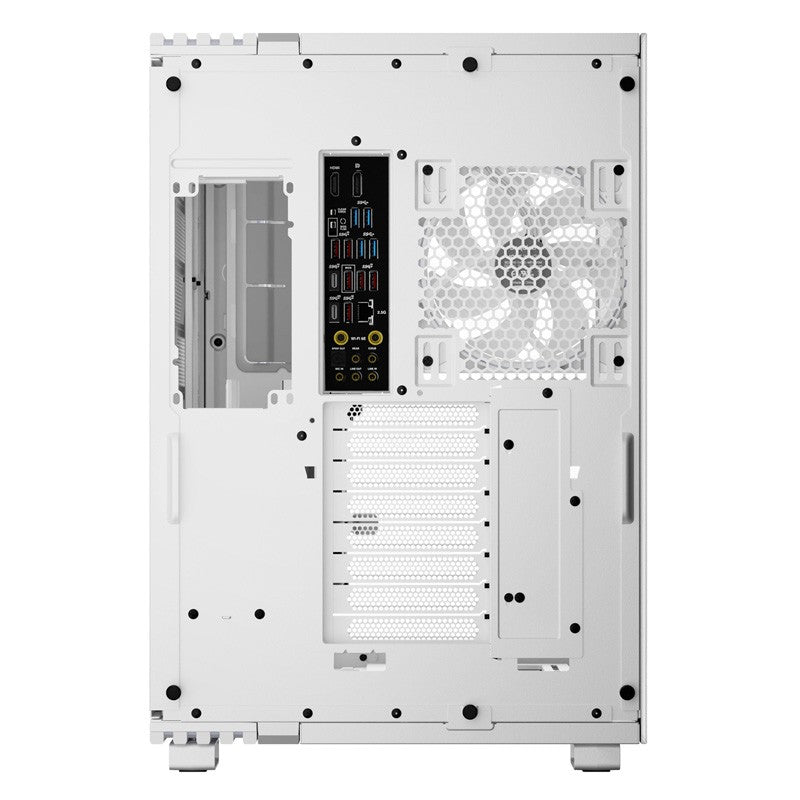

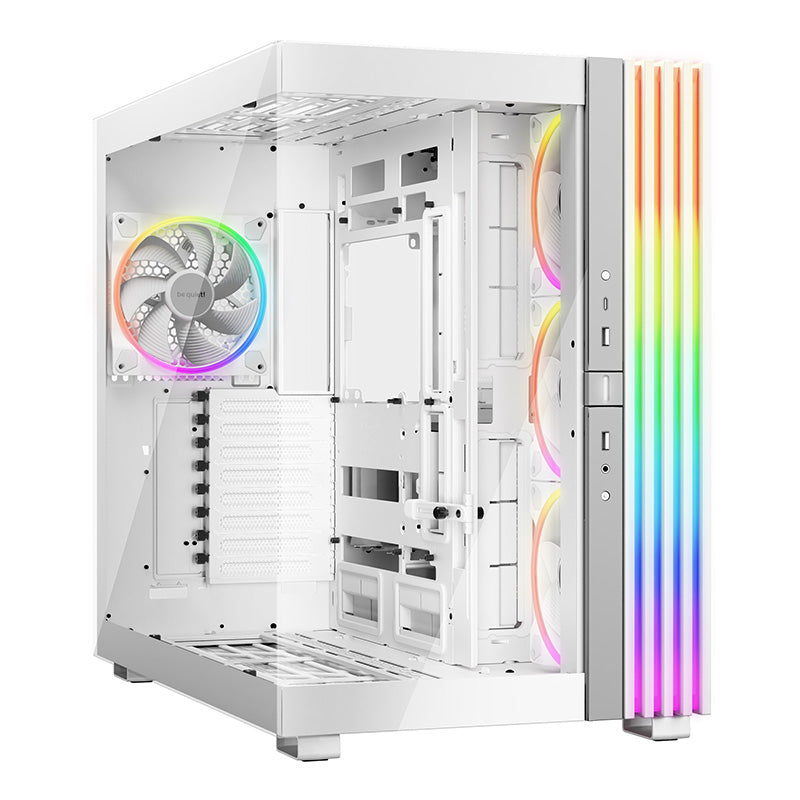

Light Base 900 FX White |
Color option |
White |
Motherboard compatibility |
E-ATX / XL-ATX / ATX / M-ATX / Mini-ATX |
Case size excl. stands (L x W x H), (mm) |
532 x 327 x 465 |
Case size incl. stands (L x W x H), (mm) |
532 x 327 x 484 |
Volume (l) |
68 |
PSU form factor |
ATX PS/2 |
Net weight (kg) |
16.8 |
Expansion slots |
8 |
PRE-INSTALLED FANS |
|
Fan at side |
3x Light Wings Reversed 140mm PWM White |
Fan at rear |
1x Light Wings 140mm PWM White |
Dimensions (L x W x H), (mm) |
140 x 25 x 140 |
Fan speed at 100% PWM / 12V (rpm) |
1500 / 1300 |
Airflow at 100% PWM / 12V (CFM / m3/h) |
56.0 / 95.1 | 51.37 / 87.28 |
Air Pressure at 100% PWM / 12V (mm H2O) |
1.49 / 1.1 |
Noise level at 100% PWM / 12V (dB(A)) |
23.3 / 25.5 |
Voltage range (V DC) |
5-13.2 / 5-12 |
Input power (W) |
3.8 / 0.72 |
Input current (A) |
0.32 / 0.06 |
Connector |
4-pin PWM |
Lifespan (h / 25°C) |
60,000 |
Fan controller |
2x 12 ports |
MAXIMUM FAN INSTALLATION |
|
Maximum fans |
10 |
Top (mm) |
3x 140 / 3x 120 |
Side (mm) |
3x 140 / 3x 120 |
Rear (mm) |
1x 140 / 1x 120 |
Bottom (mm) |
3x 140 / 3x 120 |
OPTIONAL RADIATOR INSTALLATION |
|
Top (mm) |
120 / 140 / 240 / 280 / 360 / 420 |
Side (mm) |
120 / 140 / 240 / 280 / 360 |
Rear (mm) |
120 / 140 |
Bottom (mm) |
120 / 140 / 240 / 280 / 360 / 420 |
PSU COMPATIBILITY |
|
Maximum dimensions excl. bottom fan (mm) |
225 |
Maximum dimensions incl. bottom fan (mm) |
225 |
GRAPHICS CARD |
|
HDD cage (in height of graphics card) installed (mm) |
495 |
HDD cage (in height of graphics card) removed (mm) |
495 |
Maximum PCIe slots with vertical graphics card (pcs.) |
4 |
DRIVE BAY CAPACITY |
|
3.5 slots (scope of delivery) |
1 |
3.5 slots (max.) |
2 |
2.5 slots (scope of delivery) |
4 |
2.5 slots (max.) |
6 |
COOLING |
|
Max.construction height of CPU cooler unit (mm) |
190 |
LIGHTING |
|
LED illumination |
? |
LEDs (pcs.) |
172 |
LED type |
ARGB - 5V |
LEDs synchronizable with controller/motherboard |
? |
I/O PANEL |
|
USB 3.2 Gen. 2 Type C |
1 |
USB 3.2 Type A |
2 |
HD Audio I/O |
Mic + Audio |
INSULATION AND DAMPING |
|
Anti-vibration decoupled HDD |
? |
Anti-vibration decoupled fan |
? |
Anti-vibration decoupled PSU |
? |
SCOPE OF DELIVERY |
|
Screw set (Drives/Motherboard) |
? |
Additional standoffs (pcs.) |
1 |
Cable ties (pcs.) |
12 |
VGA holder |
? |
VGA holder for inverted layout |
? |
REMOVEABLE DUST FILTERS |
|
Top |
1 |
Side |
1 |
Bottom |
1 |
MATERIAL |
|
Top cover |
Steel |
Front panel |
Glass |
Side panel |
Steel |
Side panel window |
Glass |
Stands |
ABS |
