Description
SPECIFICATIONS:
GENERAL DATA |
|
Model |
Light Wings White 140mm PWM |
Dimensions (mm) |
140 x 140 x 25 |
Lighting |
ARGB LED |
Fan speed at 100% PWM / 12V (rpm) |
1500 |
Noise level at 100% PWM / 12V (dB(A)) |
23.3 |
Airflow at 100% PWM / 12V (CFM / m3/h) |
56 / 95.14 |
Air Pressure at 100% PWM / 12V (mm H2O) |
1.49 |
MECHANICAL SPECIFICATIONS |
|
Dimensions (L x W x H), (mm) |
140 x 140 x 25 |
Weight incl. fixed cables (g) |
241 |
Bearing technology |
Rifle |
Motor technology |
4-pole fan motor |
Screw fixing |
✓ |
CABLES / CONNECTORS |
|
Daisy-chain compatible |
✓ |
Lighting connector |
5V 3-pin ARGB |
Connector |
4-pin PWM |
Cable length (mm) |
500 |
PERFORMANCE / NOISE |
|
Airflow at 100% PWM / 12V (CFM / m3/h) |
56 / 95.14 |
Air Pressure at 100% PWM / 12V (mm H2O) |
1.49 |
Noise level at 100% PWM / 12V (dB(A)) |
23.3 |
Lifespan (h / 25°C) |
60.000 |
ELECTRICAL SPECIFICATIONS |
|
Rated Voltage DC (V) |
12 |
Operating Voltage DC (V) |
5 - 13.2 |
Current consumption (A) |
0.08 |
Input current (A) |
0.08 |
Safety current (A) |
0.32 |
Input power (W) |
3.84 |
Rated Current LED (A) |
0.67 |
ACCESSORIES |
|
Screws |
16 |
Others |

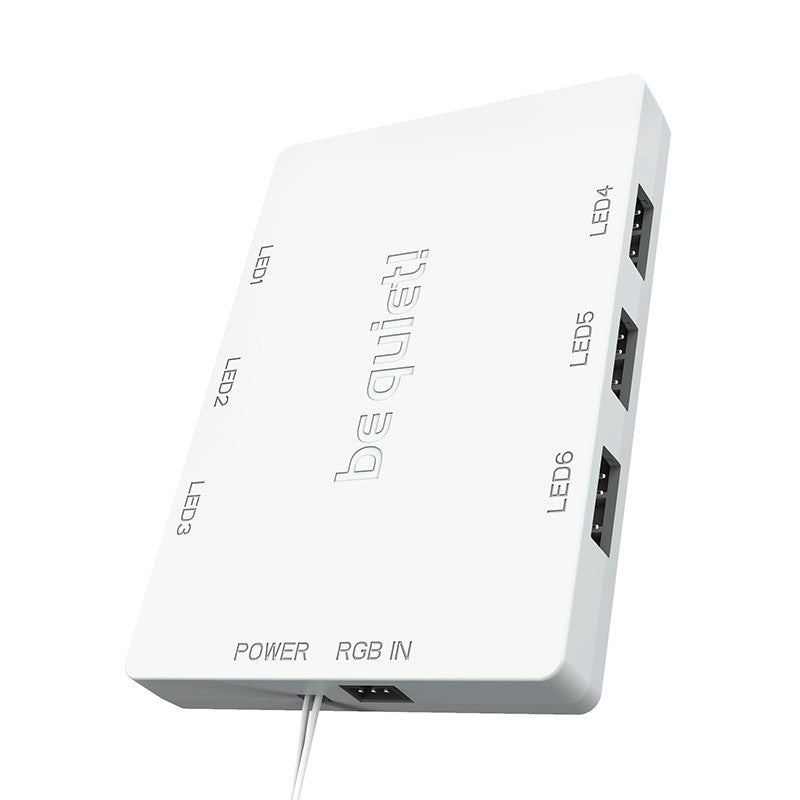

ARGB Hub, ARGB Hub cable, double coated tissue tape, fastening screws for ARGB hub |
SAFETY CERTIFICATION |
|
Approvals |
CE / UL |
