Description
SPECIFICATIONS:
GENERAL |
|
Model |

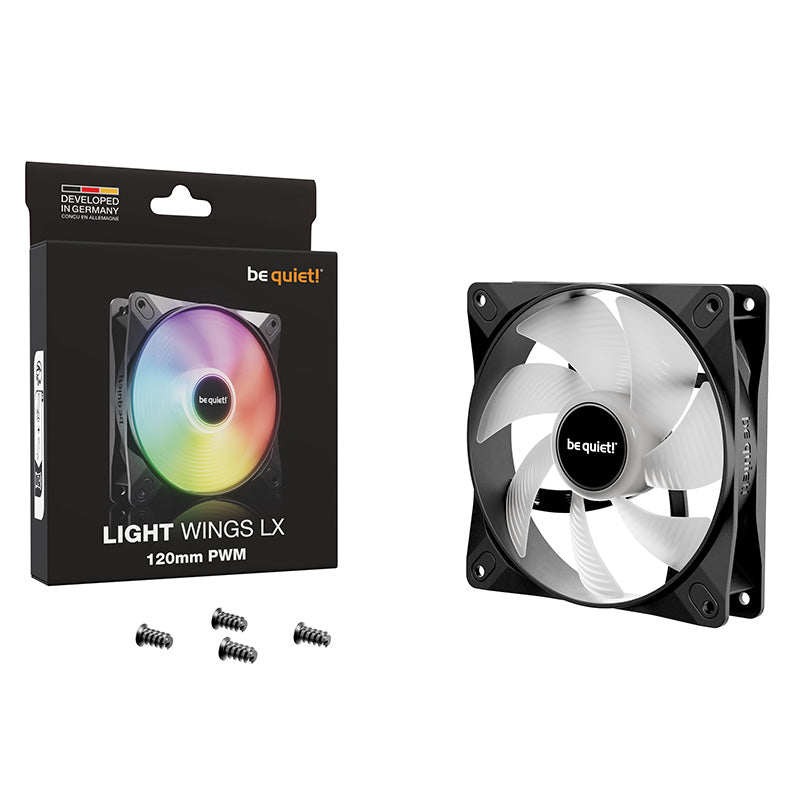

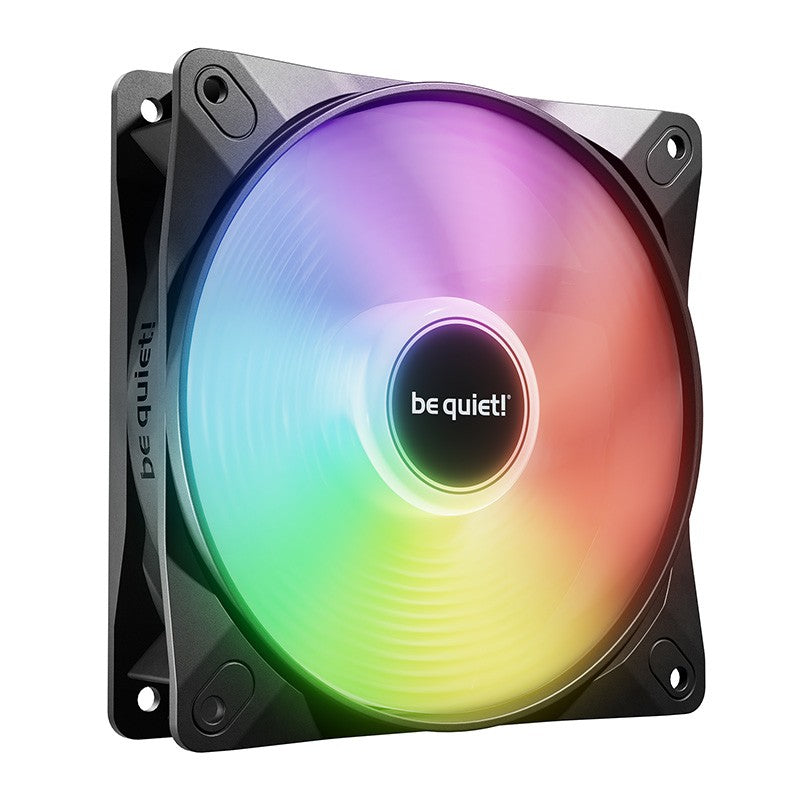

Light Wings LX 120mm PWM |
Dimensions (mm) |
120 |
Color option |
Black |
Lighting |
ARGB LED |
Fan speed at 100% PWM / 12V (rpm) |
1600 |
Noise level at 100% PWM / 12V (dB(A)) |
25.5 |
Airflow at 100% PWM / 12V (CFM / m3/h) |
51.5 / 87.5 |
Air Pressure at 100% PWM / 12V (mm H2O) |
1.34 |
MECHANICAL |
|
Dimensions (L x W x H), (mm) |
120 x 120 x 25 |
Weight incl. fixed cables (g) |
133 |
Bearing technology |
Rifle |
Motor technology |
4-pole fan motor |
Screw fixing |
✓ |
CABLES/CONNECTORS |
|
Daisy-chain compatible |
✓ |
Lighting connector |
5V 3-pin ARGB |
Connector |
4-pin PWM |
Cable length (mm) |
500 |
PERFORMANCE / NOISE |
|
Airflow at 100% PWM / 12V (CFM / m3/h) |
51.5 / 87.5 |
Air Pressure at 100% PWM / 12V (mm H2O) |
1.34 |
Noise level at 100% PWM / 12V (dB(A)) |
25.5 |
Lifespan (h / 25°C) |
60,000 |
ELECTRICAL |
|
Rated Voltage DC (V) |
12 |
Operating Voltage DC (V) |
5 - 13.2 |
Input current (A) |
0.10 |
Safety current (A) |
0.32 |
Input power (W) |
3.8 |
Rated Current LED (A) |
0.39 |
ACCESSORIES |
|
Screws |
4 |
