Description
SPECIFICATIONS:
GENERAL |
|
Model |

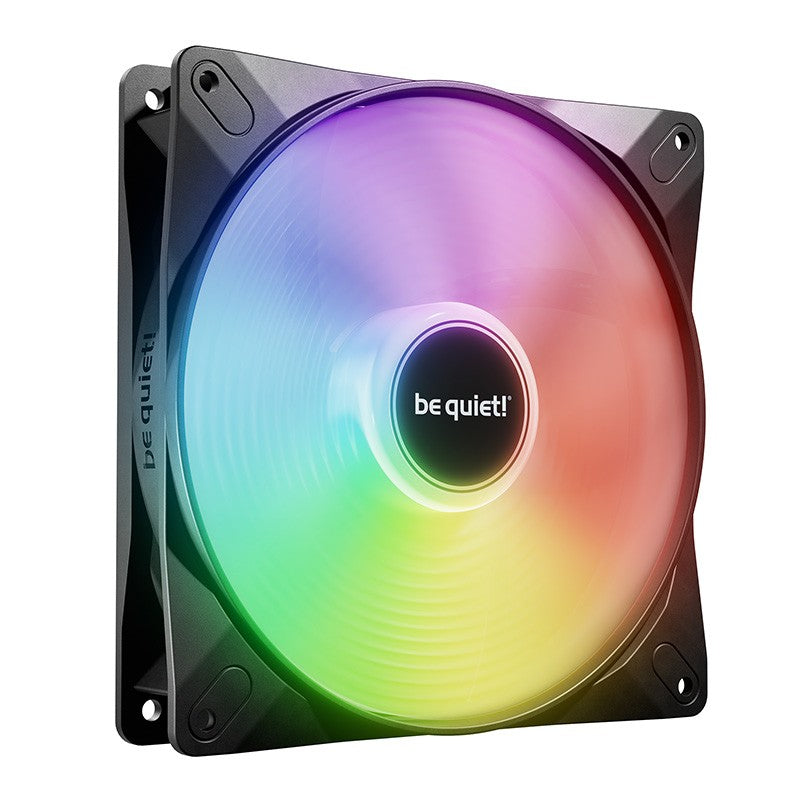

Light Wings LX 140mm PWM |
Dimensions (mm) |
140 |
Color option |
Black |
Lighting |
ARGB LED |
Fan speed at 100% PWM / 12V (rpm) |
1200 |
Noise level at 100% PWM / 12V (dB(A)) |
22.9 |
Airflow at 100% PWM / 12V (CFM / m3/h) |
56.0 / 95.0 |
Air Pressure at 100% PWM / 12V (mm H2O) |
0.90 |
MECHANICAL SPECIFICATIONS |
|
Dimensions (L x W x H), (mm) |
140 x 25 x 140 |
Weight incl. fixed cables (g) |
165 |
Bearing technology |
Rifle |
Motor technology |
4-pole fan motor |
Screw fixing |
✓ |
CABLES / CONNECTORS |
|
Daisy-chain compatible |
✓ |
Lighting connector |
5V 3-pin ARGB |
Connector |
4-pin PWM |
Cable length (mm) |
500 |
PERFORMANCE / NOISE |
|
Airflow at 100% PWM / 12V (CFM / m3/h) |
56.0 / 95.0 |
Air Pressure at 100% PWM / 12V (mm H2O) |
0.90 |
Noise level at 100% PWM / 12V (dB(A)) |
22.9 |
Lifespan (h / 25°C) |
60,000 |
ELECTRICAL SPECIFICATIONS |
|
Rated Voltage DC (V) |
12 |
Operating Voltage DC (V) |
5 - 13.2 |
Input current (A) |
0.09 |
Safety current (A) |
0.30 |
Input power (W) |
3.6 |
Rated Current LED (A) |
0.39 |

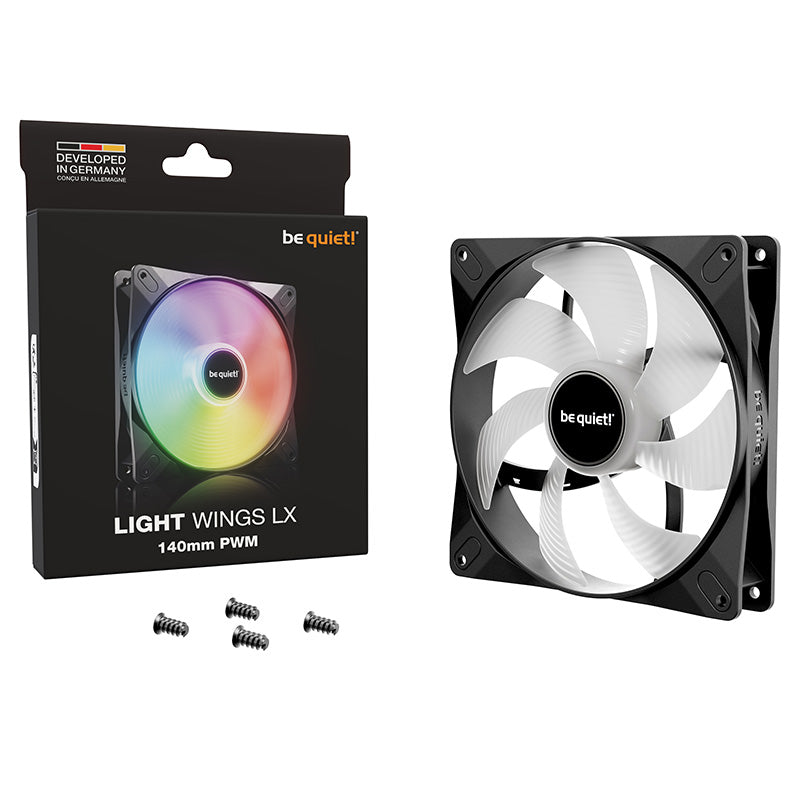

ACCESSORIES |
|
Screws |
4 |
