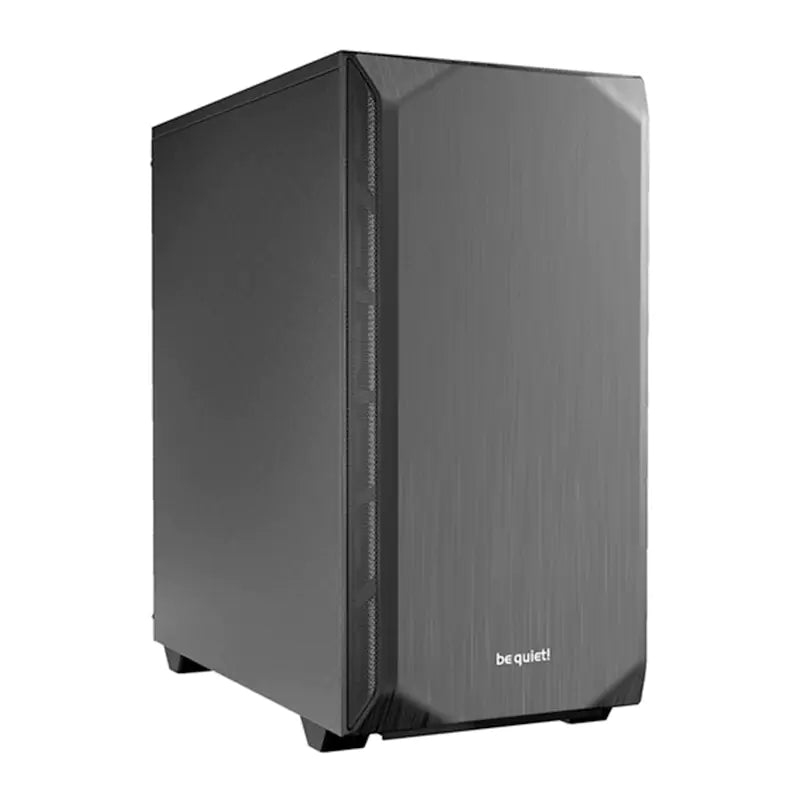

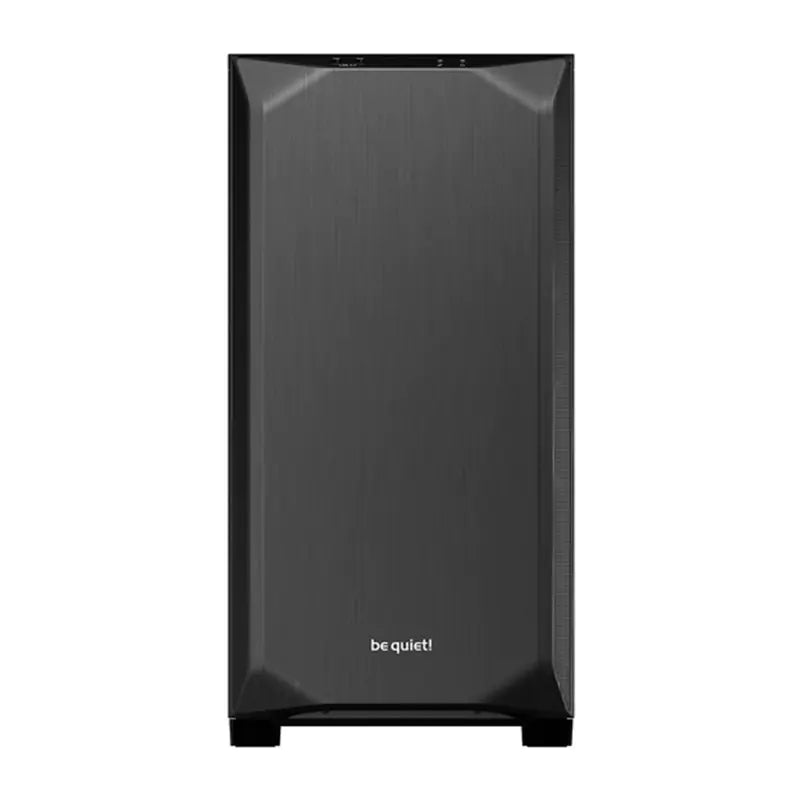

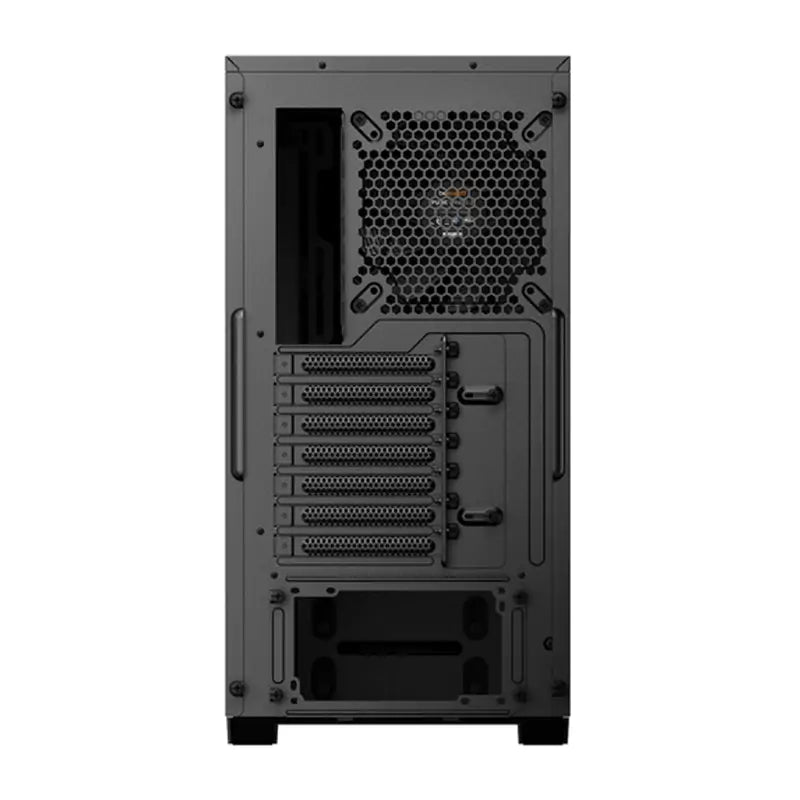

be quiet! Pure Base 500 Mid Tower ATX Case - Black

Color

Black

Motherboard compatibility

ATX / M-ATX / Mini-ITX

Case size excl. stands (L x W x H), (mm)

450 x 232 x 443

Case size incl. stands (L x W x H), (mm)

450 x 232 x 463

Volume (l)

46.25

PSU form factor

ATX PS/2

Weight (kg)

6.95

Expansion slots

7

PRE-INSTALLED FANS

Fan at front

1x Pure Wings 2 140mm

Fan at rear

1x Pure Wings 2 140mm

Dimensions (L x W x H), (mm)

Front: 140 x 140 x 25 / Rear: 140 x 140 x 25

Fan speed at 100% PWM / 12V (rpm)

900

Airflow at 100% PWM / 12V (CFM / m3/h)

55.8 / 94.8

Air Pressure at 100% PWM / 12V (mm H2O)

0.6

Noise level at 100% PWM / 12V (dB(A))

17.1

Voltage range (V DC)

12

Input power (W)

1.08

Input current (A)

0.09

Connector

3-pin

Lifespan (h / 25°C)

80,000

MAXIMUM FAN INSTALLATION

Maximum fans

6

Top (mm)

2x 120 / 2x 140

Front (mm)

3x 120 / 2x 140

Rear (mm)

1x 140

PSU COMPATIBILITY

Maximum dimensions excl. bottom fan (mm)

258

Maximum dimensions incl. bottom fan (mm)

225

GRAPHICS CARD

HDD cage (in height of graphics card) installed (mm)

369

HDD cage (in height of graphics card) removed (mm)

369

DRIVE BAY CAPACITY

3.5 slots (scope of delivery)

2

3.5 slots (max.)

2

2.5 slots (scope of delivery)

5

2.5 slots (max.)

5

COOLING

Max.construction height of CPU cooler unit (mm)

190

Airflow channel

Front / Top / Rear

I/O PANEL

USB 3.2 Type A

2

HD Audio I/O

Mic + Audio

INSULATION AND DAMPING

Top panel insulation mats

✓

Front panel insulation mats

✓

Side panel insulation mats

✓

Anti-vibration decoupled HDD

✓

Anti-vibration decoupled PSU

✓

REMOVEABLE DUST FILTERS

Bottom

1

MATERIAL

Top cover

ABS

Front panel

ABS

Side panel

Steel

Stands

ABS

SAFETY CERTIFICATION

Approvals

CE, UKCA

ENVIRONMENTAL DIRECTIVES

RoHS

✓

Reach

✓

Triman

✓

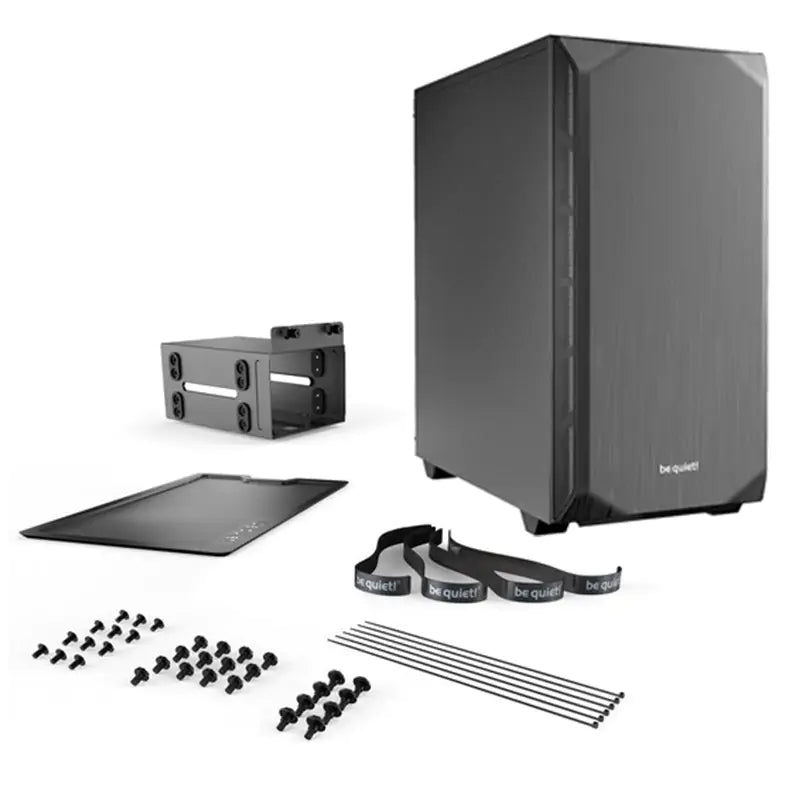

SCOPE OF DELIVERY

Screw set (Drives/Motherboard)

✓

Cable ties (pcs.)

4 (Velcro)
