be quiet! Pure Base 500DX Tempered Glass ATX Case - Black

Fan at top

1x Pure Wings 2 140mm

Fan at front

1x Pure Wings 2 140mm

Fan at rear

1x Pure Wings 2 140mm

Dimensions (L x W x H), (mm)

Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25

Fan speed at 100% PWM / 12V (rpm)

900

Airflow at 100% PWM / 12V (CFM / m3/h)

55.8 / 94.8

Air Pressure at 100% PWM / 12V (mm H2O)

0.6

Noise level at 100% PWM / 12V (dB(A))

17.1

Voltage range (V DC)

12

Input power (W)

1.08

Input current (A)

0.09

Connector

3-Pin

Lifespan (h / 25°C)

80,000

PSU COMPATIBILITY

Maximum dimensions excl. bottom fan (mm)

258

Maximum dimensions incl. bottom fan (mm)

225

DRIVE BAY   CAPACITY

3.5 slots (scope of delivery)

2

3.5 slots (max.)

2

2.5 slots (scope of delivery)

5

2.5 slots (max.)

5

COOLING

Max.construction height of CPU cooler unit (mm)

190

Airflow channel

Front / Top / Rear

LIGHTING

LED illumination

Front LED ARGB / Internal ARGB

I/O PANEL

USB 3.2 Gen. 2 Type C

1

USB 3.2 Type A

1

HD Audio I/O

Mic + Audio

INSULATION AND DAMPING

Side panel insulation mats

✓

Anti-vibration decoupled HDD

✓

Anti-vibration decoupled PSU

✓

REMOVEABLE DUST FILTERS

Front

1

Bottom

1

MATERIAL

Top cover

ABS

Front panel

ABS

Side panel

Steel

Side panel window

4mm tempered glass

Stands

ABS

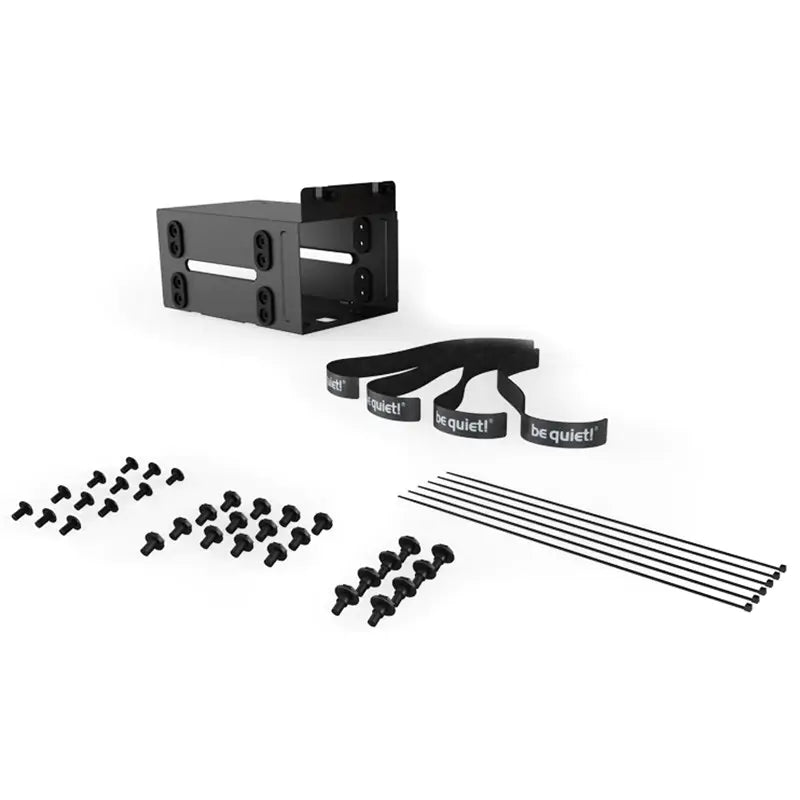

SCOPE OF DELIVERY

Screw set (Drives/Motherboard)

✓

Cable ties (pcs.)

6 / 4 (Velcro)
