Description
SPECIFICATIONS:
GENERAL DATA |
|
Model |

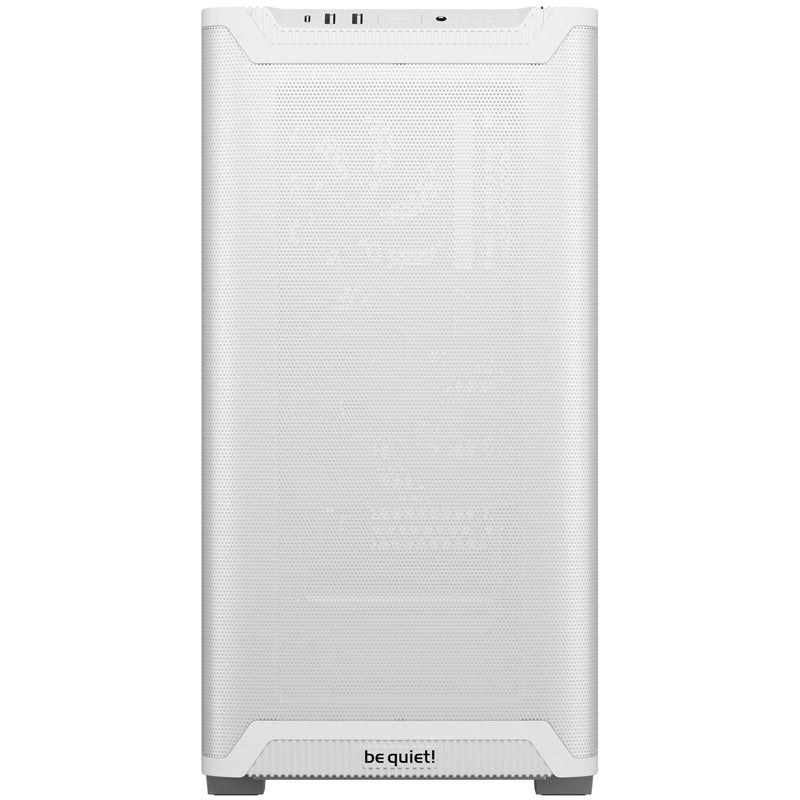

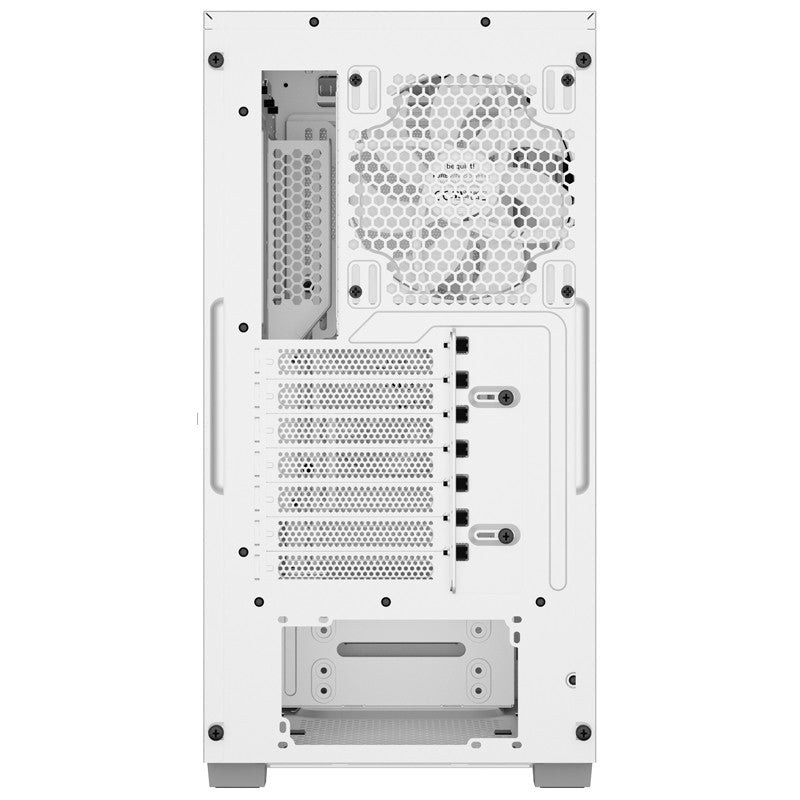

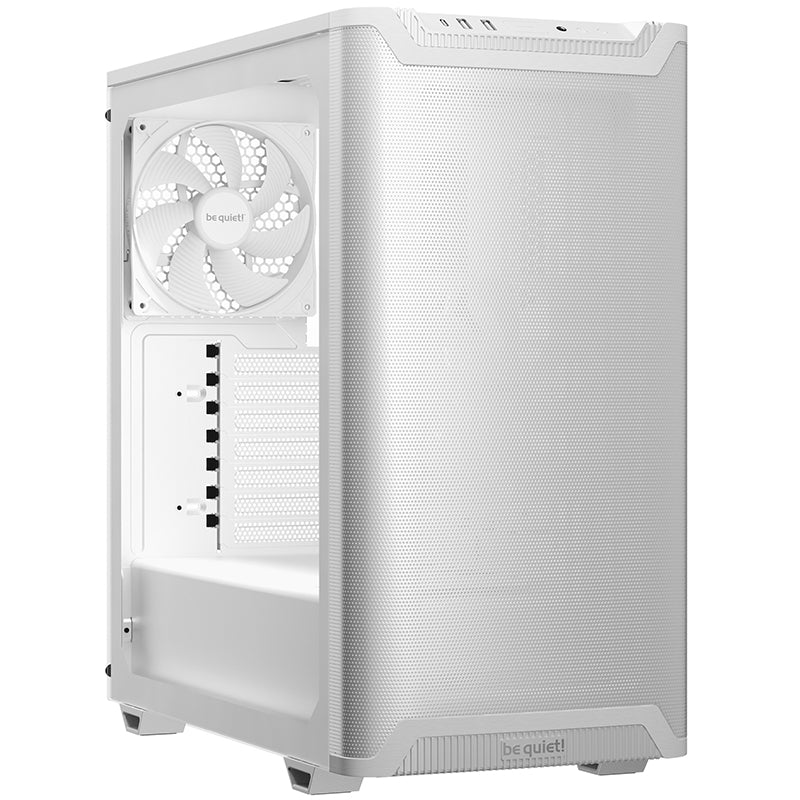

Pure Base 501 Airflow Window White |
Color option |
White |
Motherboard compatibility |
ATX / M-ATX / Mini-ITX |
Case size excl. stands (L x W x H), (mm) |
450 x 231 x 449 |
Case size incl. stands (L x W x H), (mm) |
450 x 231 x 463 |
Volume (l) |
39.2 |
PSU form factor |
ATX PS/2 |
Net weight (kg) |
7.2 |
Expansion slots |
7 |
PRE-INSTALLED FANS |
|
Fan at front |
1x Pure Wings 3 140mm PWM White |
Fan at rear |
1x Pure Wings 3 140mm PWM White |
Dimensions (L x W x H), (mm) |
Front: 140 x 25 x 140 / Rear: 140 x 25 x 140 |
Fan speed at 100% PWM / 12V (rpm) |
1200 |
Airflow at 100% PWM / 12V (CFM / m3/h) |
57.4 / 97.5 |
Air Pressure at 100% PWM / 12V (mm H2O) |
0.96 |
Noise level at 100% PWM / 12V (dB(A)) |
21.9 |
Voltage range (V DC) |
5 - 13.2 |
Input power (W) |
3.6 |
Input current (A) |
0.06 |
Connector |
4-pin PWM |
Lifespan (h / 25°C) |
80,000 |
MAXIMUM FAN INSTALLATION |
|
Maximum fans |
6 |
Top (mm) |
2x 140 / 2x 120 |
Front (mm) |
2x 140 / 3x 120 |
Rear (mm) |
1x 140 / 1x 120 |
OPTIONAL RADIATOR INSTALLATION |
|
Top (mm) |
120 / 240 |
Front (mm) |
120 / 140 / 240 / 280 / 360 |
Rear (mm) |
120 / 140 |
PSU COMPATIBILITY |
|
Maximum dimensions excl. bottom fan (mm) |
180 |
Maximum dimensions incl. bottom fan (mm) |
180 |
GRAPHICS CARD |
|
HDD cage (in height of graphics card) installed (mm) |
368 |
HDD cage (in height of graphics card) removed (mm) |
368 |
Maximum PCIe slots with vertical graphics card (pcs.) |
5 |
DRIVE BAY CAPACITY |
|
3.5 slots (scope of delivery) |
2 |
3.5 slots (max.) |
2 |
2.5 slots (scope of delivery) |
5 |
2.5 slots (max.) |
5 |
COOLING |
|
Max.construction height of CPU cooler unit (mm) |
178 |
I/O PANEL |
|
USB 3.2 Gen. 2 Type C |
1 |
USB 3.2 Type A |
2 |
HD Audio I/O |
Mic + Audio |
INSULATION AND DAMPING |
|
Side panel insulation mats |
? |
Anti-vibration decoupled HDD |
? |
Anti-vibration decoupled fan |
? |
Anti-vibration decoupled PSU |
? |
Anti-vibration decoupled motherboard-tray |
? |
SCOPE OF DELIVERY |
|
Screw set (Drives/Motherboard) |
? |
Additional standoffs (pcs.) |
1 |
Cable ties (pcs.) |
12 |
REMOVEABLE DUST FILTERS |
|
Top |
1 |
Front |
1 |
Bottom |
1 |
MATERIAL |
|
Top cover |
Steel |
Front panel |
ABS |
Side panel |
Steel |
Side panel window |
Glass |
Stands |
ABS |
SAFETY CERTIFICATION |
|
Approvals |
CE / RoHS |
ENVIRONMENTAL DIRECTIVES |
|
RoHS |
? |
Reach |
? |
Triman |
? |
