Description
SPECIFICATIONS:
GENERAL DATA |
|
Model |
Pure Rock 3 Black |
TDP (W) |
190 |
Color option |
Black |
|
Overall dimensions without mounting material (L x W x H), (mm) |
71 x 124 x 154 |
Total weight (kg) |
0.57 |
Socket compatibility Intel |
1851 / 1700 / 1200 / 1150 / 1151 / 1155 |
Socket compatibility AMD |
AM5 / AM4 |
Overall noise level (dB(A)) @ 50/75/100% (rpm) |
12.4 / 24.4 / 31.2 |
Number of fans |
1 |
HEATSINK SPECIFICATIONS |
|
Dimensions (L x W x H), (mm) |
46 x 124 x 154 |
Fin material |
Aluminum |
Surface treatment |
Electrophoresis |
Base material |
Aluminum / Copper |
CPU contact surface |
Heat pipe direct touch |
Heatpipe number / Diameter (mm) |
4 / 6 |
FAN SPECIFICATIONS |
|
Fan model |
Pure Wings 3 120mm PWM |
Fan dimensions (mm) |
120 x 25 x 120 |
Speed @ 100% PWM (rpm) |
2000 |
Airflow at 100% PWM / 12V (CFM / m3/h) |
59.6 / 101.2 |
Air Pressure at 100% PWM / 12V (mm H2O) |
2.41 |
Bearing technology |
Rifle |
Motor technology |
4-pole fan motor |
Rated Voltage (V) |
12 |
Input current (A) |
0.13 |
Safety current (A) |
0.30 |
Input power (W) |
3.6 |
Connector |
4-pin PWM |
Cable length (mm) |
120 |
Lifespan (h / 25°C) |
80,000 |

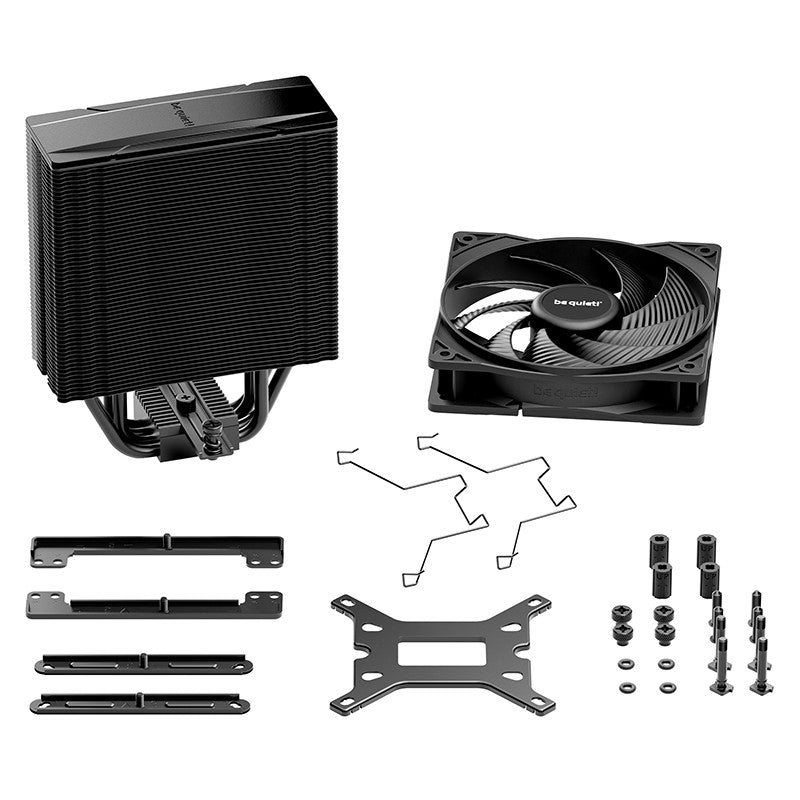

ACCESSORIES |
|
Thermal grease (Type) |
Applied |
Mounting set |
Intel & AMD |
User manual languages |
CN, DE, EN, ES, FR, JP, PL, RU, TW, UA |
SAFETY CERTIFICATION |
|
Approvals |
CE, UKCA, UL |
ENVIRONMENTAL DIRECTIVES |
|
RoHS |
✓ |
WEEE |
✓ |
Triman |
✓ |
