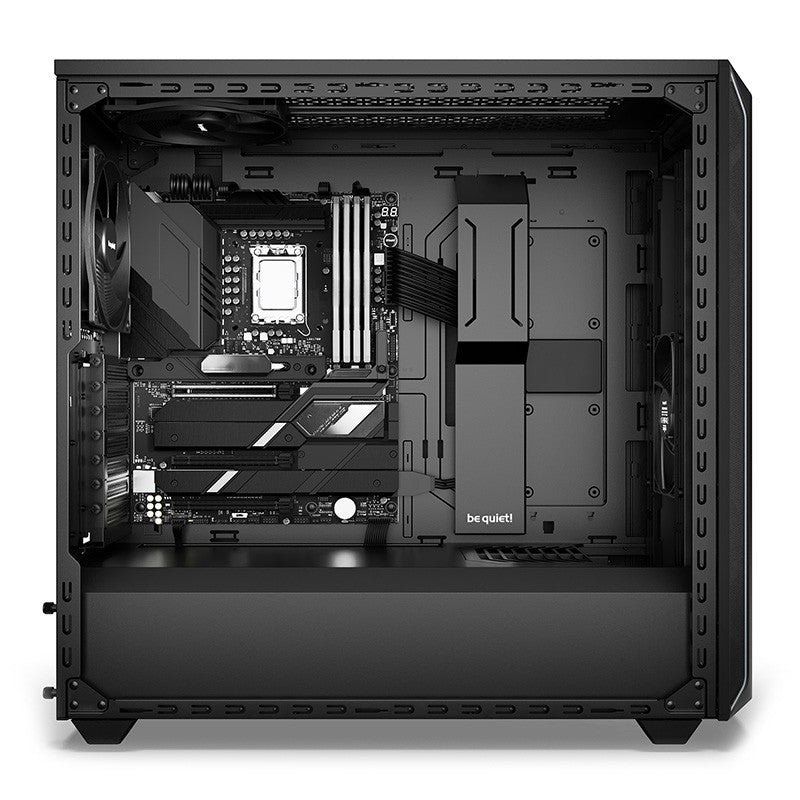

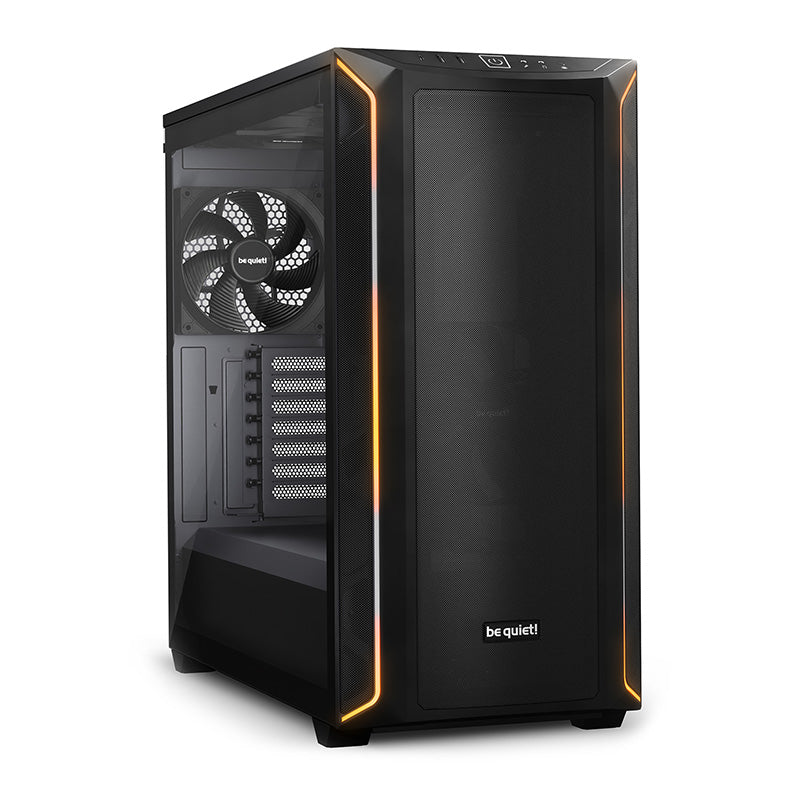

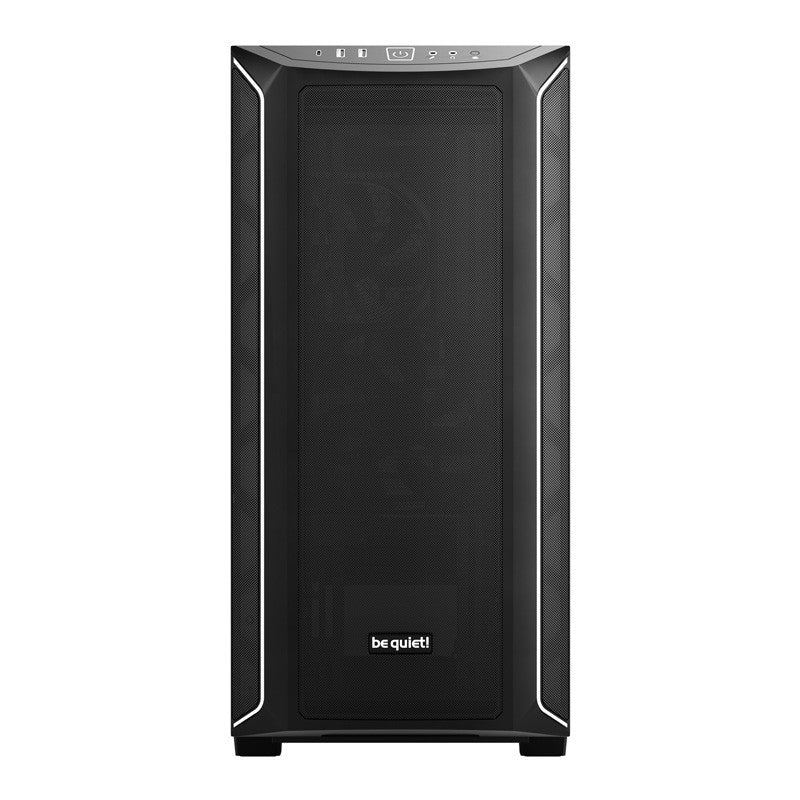

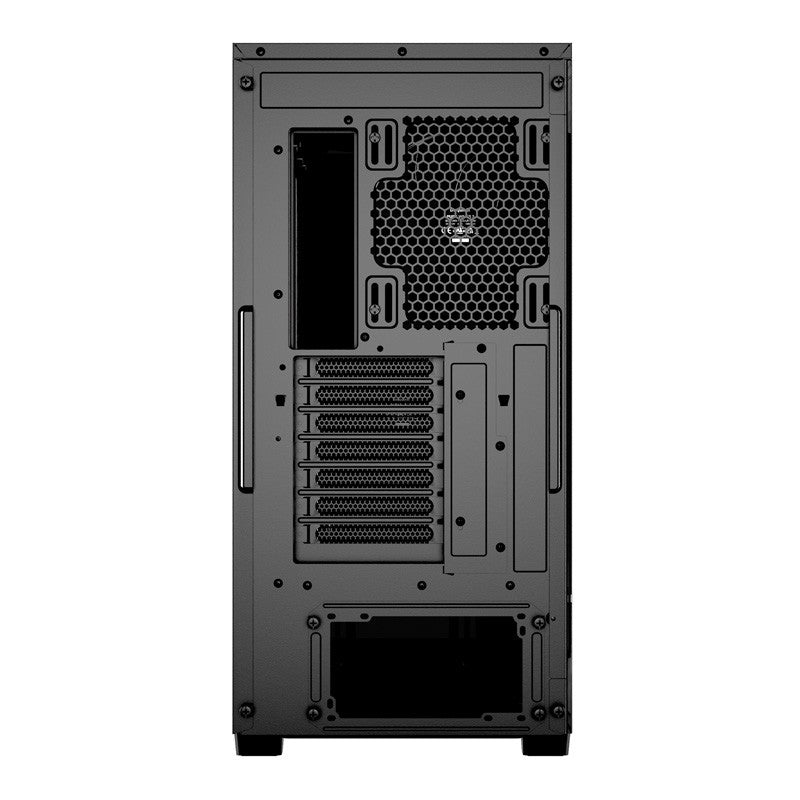

be quiet! Shadow Base 800 DX E-ATX Case

Case type

Mid-Tower

PSU

PS2 ATX (not included)

Dimensions (L x W x H in mm)

550 x 247 x 522

Material

Steel (SGCC), ABS

Weight (kg)

11.8 (net) / 13.2 (gross)

I/O port

1x USB 3.2 Gen. 2 Type C

2 x USB 3.2

HD Audio (mic + audio)

LED Control

PCI slots

7

Drive bays

Up to 8x 2.5 (4 included)

Up to 4x 3.5 (2 included)

Preinstalled fans (mm) / (rpm)

Front: 1x Pure Wings 3 PWM 140 / 1200

Top: 1x Pure Wings 3 PWM 140 / 1200

Rear: 1x Pure Wings 3 PWM 140 / 1200

Maximum fans (mm)

Front: 3x 140 / 120

Top: 3x 140 / 120

Bottom: 1x 140 / 120

Rear: 1x 140 / 120

Optional radiators (mm)

Front: 120 / 140 / 240 / 280 / 360 / 420

Top: 120 / 140 / 240 / 280 / 360 / 420

Rear: 120

Maximum dimensions (mm)

CPU cooler: up to 180

PSU: up to 250

GPU: 430

ARGB Connector

3-Pin

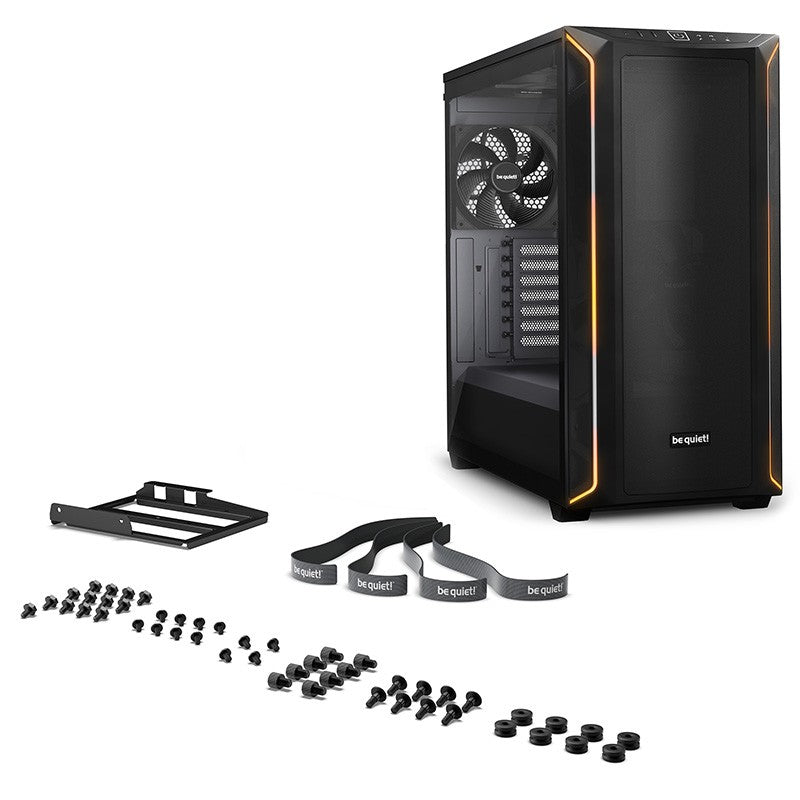

Package Contents

Shadow Base 800 DX E-ATX Case

Screw Set

3 x Pure Wings 3 140mm PWM fans

4 x Velcro Cable Ties
