Description
SPECIFICATIONS:
GENERAL DATA |
|
Model |

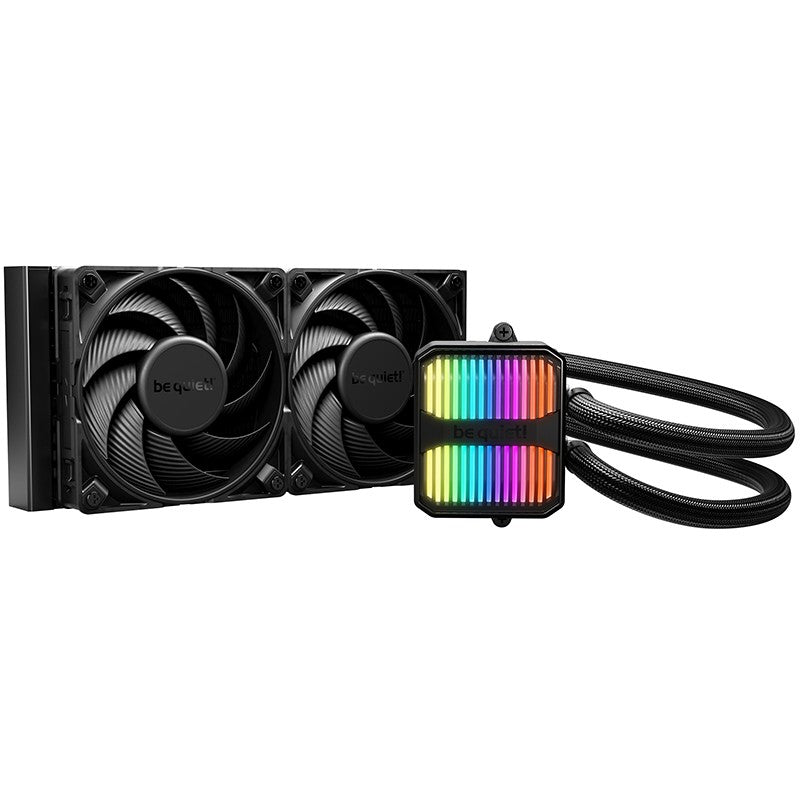

Silent Loop 3 240mm |
Color option |
Black |
Dimensions radiator, incl. fan (H x W x D), (mm) |
277 x 120 x 52 |
Dimensions cooling block (H x W x D), (mm) |
93.5 x 80 x 56 |
Total weight (kg) |
1.38 |
Socket compatibility Intel |
1851 / 1700 / 1200 / 1150 / 1151 / 1155 |
Socket compatibility AMD |
AM5 / AM4 |
Noise level (dB(A)) at 50% / 75% /100% rpm |
18.7 / 29.9 / 36.9 |
Number of fans |
2 |
Lighting connector |
3 Pin 5V Adressable |
Tube length (mm) |
400 |
Refill port |
✓ |
PUMP SPECIFICATIONS |
|
Pump speed (rpm) |
3500 |
Pump adjustable (rpm) |
1700 - 3500 |
Pump connector |
4-pin PWM |

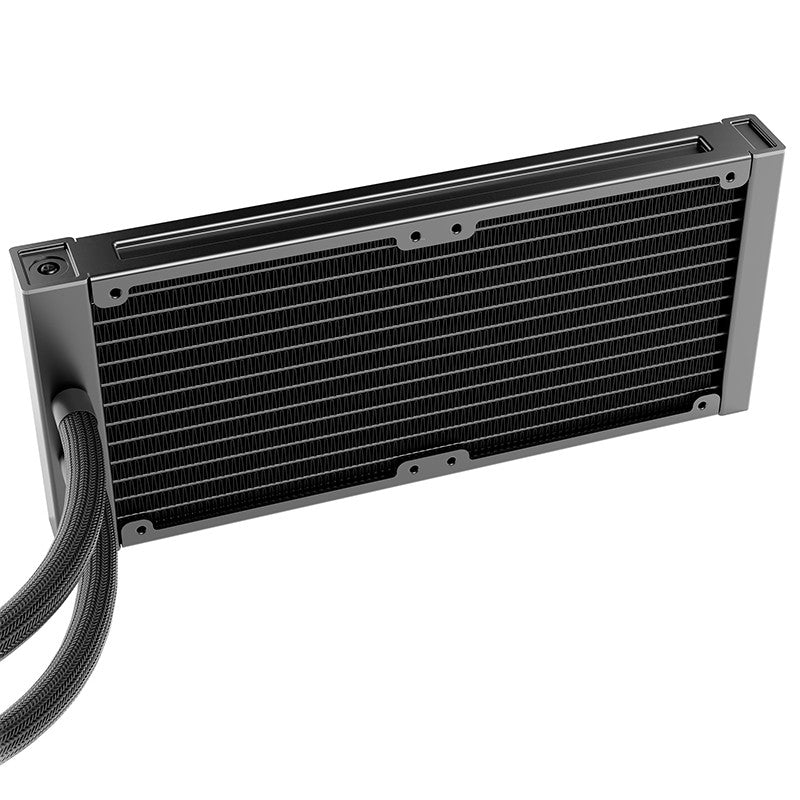

RADIATOR SPECIFICATIONS |
|
Dimensions (L x W x H), (mm) |
277 x 120 x 27 |
Radiator material / finish |
aluminum / black spray painted |
Base material / finish |
copper / nickel plating |
FAN SPECIFICATIONS |
|
Fan model |
Silent Wings 4 120mm PWM |
Fan dimensions (mm) |
120 x 120 x 25 |
Speed at 100% PWM (rpm) |
2500 |
Airflow at 100% PWM / 12V (CFM / m3/h) |
76,7 / 130.3 |
Air Pressure at 100% PWM / 12V (mm H2O) |
3.96 |
Bearing technology |
FDB |
Motor technology |
6-pole fan motor |
Rated Voltage (V) |
12 |
Input current (A) |
0.30 |
Safety current (A) |
0.40 |
Input power (W) |
3.6 |
Connector |
4-pin PWM |
Cable length (mm) |
500 |
Lifespan (h / 25°C) |
300,000 |

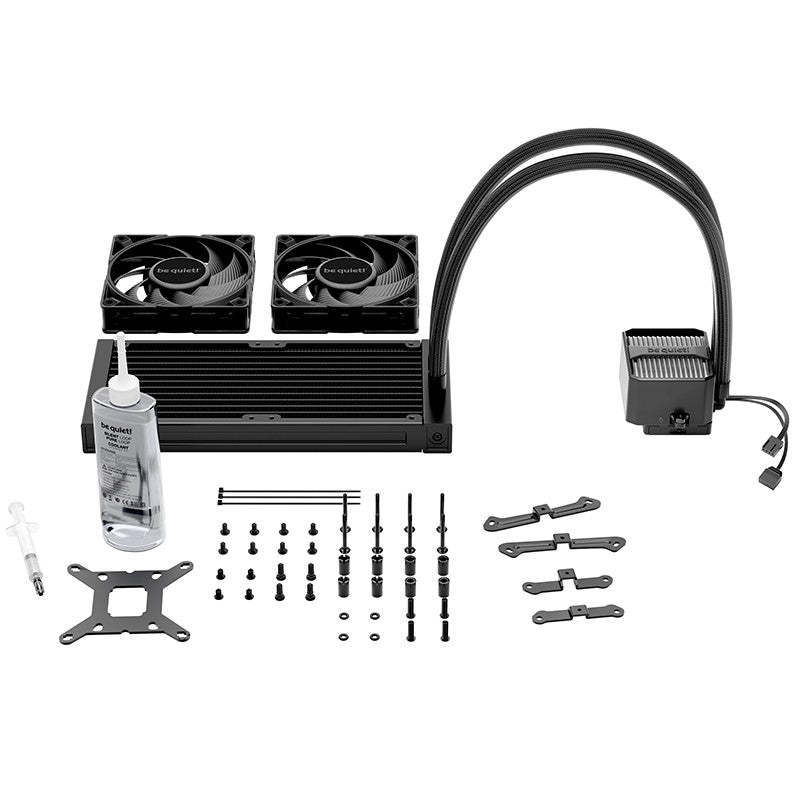

ACCESSORIES |
|
Thermal grease (Type) |
Included |
Mounting set |
Intel, AMD |
Adapter cables |
Y-cable |
Bottle of coolant (ml) |
✓ / 100 |
User manual languages |
CN, DE, EN, ES, FR, JP, PL, RU, TW, UA |
SAFETY CERTIFICATIONS |
|
Approvals |
CE, FCC, UKCA |
ENVIRONMENTAL DIRECTIVES |
|
RoHS |
✓ |
WEEE |
✓ |
Triman |
✓ |
