Description

SPECIFICATIONS:
GENERAL DATA |
|
Model |

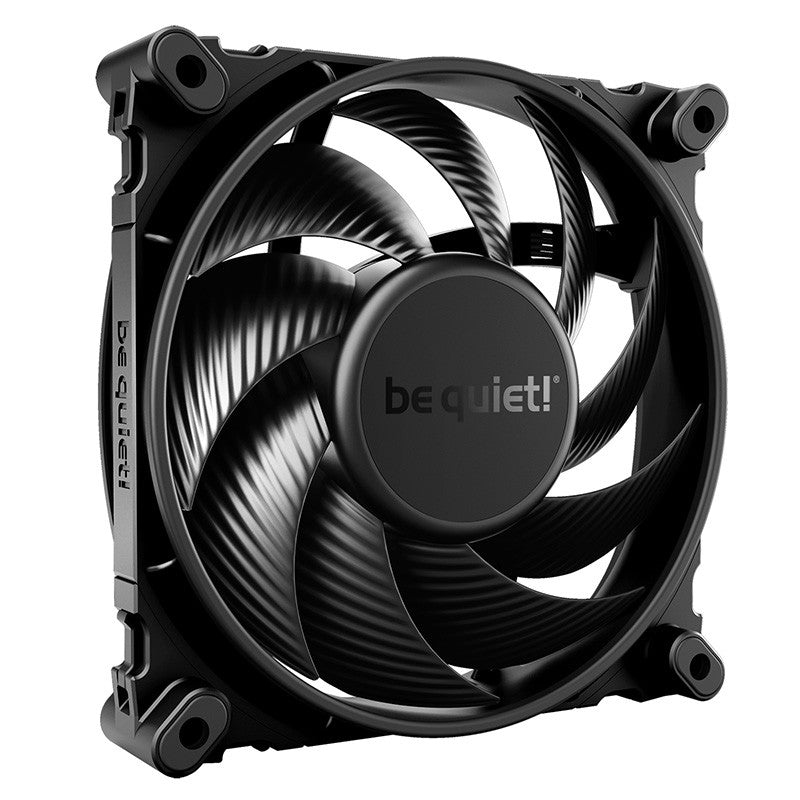

Silent Wings 4 120mm PWM high-speed |
Dimensions (mm) |
120 |
Color option |
Black |
Fan speed at 100% PWM / 12V (rpm) |
2500 |
Noise level at 100% PWM / 12V (dB(A)) |
31.2 |
Airflow at 100% PWM / 12V (CFM / m3/h) |
76.7 / 130.3 |
Air Pressure at 100% PWM / 12V (mm H2O) |
3.96 |
MECHANICAL SPECIFICATIONS |
|
Dimensions (L x W x H), (mm) |
120 x 120 x 25 |
Weight incl. fixed cables (g) |
190 |
Bearing technology |
FDB |
Motor technology |
6-pole fan motor |
Push pin fixing |
✓ |
Screw fixing |
✓ |
CABLES / CONNECTORS |
|
Connector |
4-pin PWM |
Cable length (mm) |
500 |
Cable sleeve |
✓ |
PERFORMANCE / NOISE |
|
Airflow at 100% PWM / 12V (CFM / m3/h) |
76.7 / 130.3 |
Air Pressure at 100% PWM / 12V (mm H2O) |
3.96 |
Noise level at 100% PWM / 12V (dB(A)) |
31.2 |
Lifespan (h / 25°C) |
300,000 |
Zero RPM mode |
✓ |
ELECTRICAL SPECIFICATIONS |
|
Rated Voltage DC (V) |
12 |
Operating Voltage DC (V) |
5 - 13.2 |
Current consumption (A) |
0.20 |
Input current (A) |
0.20 |
Safety current (A) |
0.20 |
Input power (W) |
2.4 |

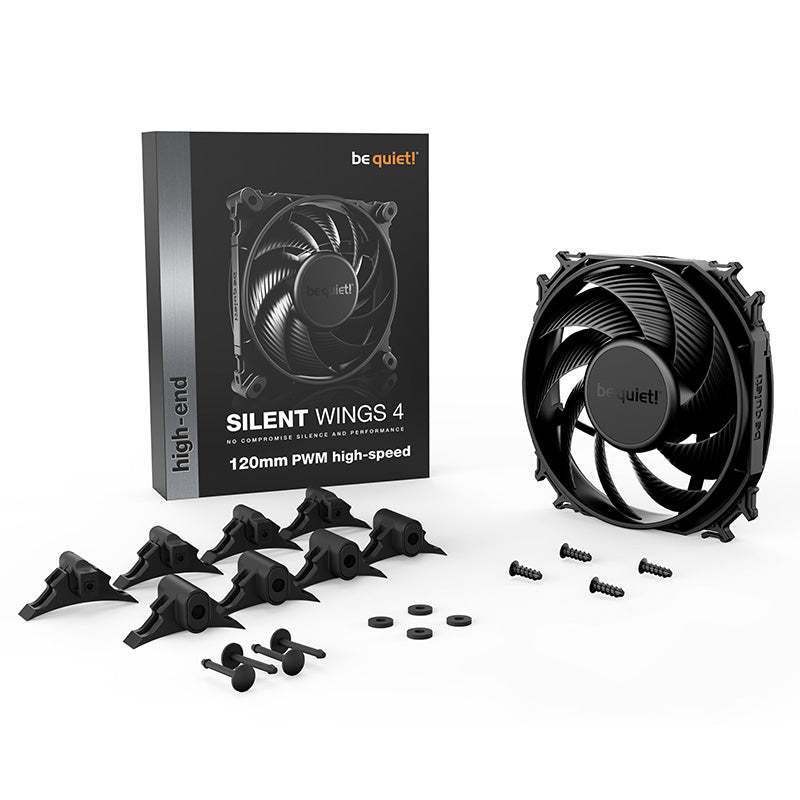

ACCESSORIES |
|
Screws |
4 |
Push pins |
4 |
hard plastic washer |
4 |
Others |
Rubber & hard plastic mountings |
