Description
SPECIFICATIONS:
GENERAL |
|
Dimensions (mm) |
140 |
Color option |
White |
Fan speed at 100% PWM / 12V (rpm) |
1900 |
Noise level at 100% PWM / 12V (dB(A)) |
29.3 |
Airflow at 100% PWM / 12V (CFM / m3/h) |
78.4 / 133.2 |
Air Pressure at 100% PWM / 12V (mm H2O) |
2.36 |
MECHANICAL SPECIFICATIONS |
|
Dimensions (L x W x H), (mm) |
140 x 140 x 25 |
Weight incl. fixed cables (g) |
220 |
Bearing technology |
FDB |
Motor technology |
6-pole fan motor |
Push pin fixing |
✓ |
Screw fixing |
✓ |
CABLES / CONNECTORS |
|
Connector |
4-pin PWM |
Cable length (mm) |
500 |
Cable sleeve |
✓ |
PERFORMANCE / NOISE |
|
Airflow at 100% PWM / 12V (CFM / m3/h) |
78.4 / 133.2 |
Air Pressure at 100% PWM / 12V (mm H2O) |
2.36 |
Noise level at 100% PWM / 12V (dB(A)) |
29.3 |
Lifespan (h / 25°C) |
300,000 |
Zero RPM mode |
✓ |
ELECTRICAL SPECIFICATIONS |
|
Rated Voltage DC (V) |
12 |
Operating Voltage DC (V) |
5 - 13.2 |
Current consumption (A) |
0.40 |
Safety current (A) |
0.40 |
Input power (W) |
4.8 |

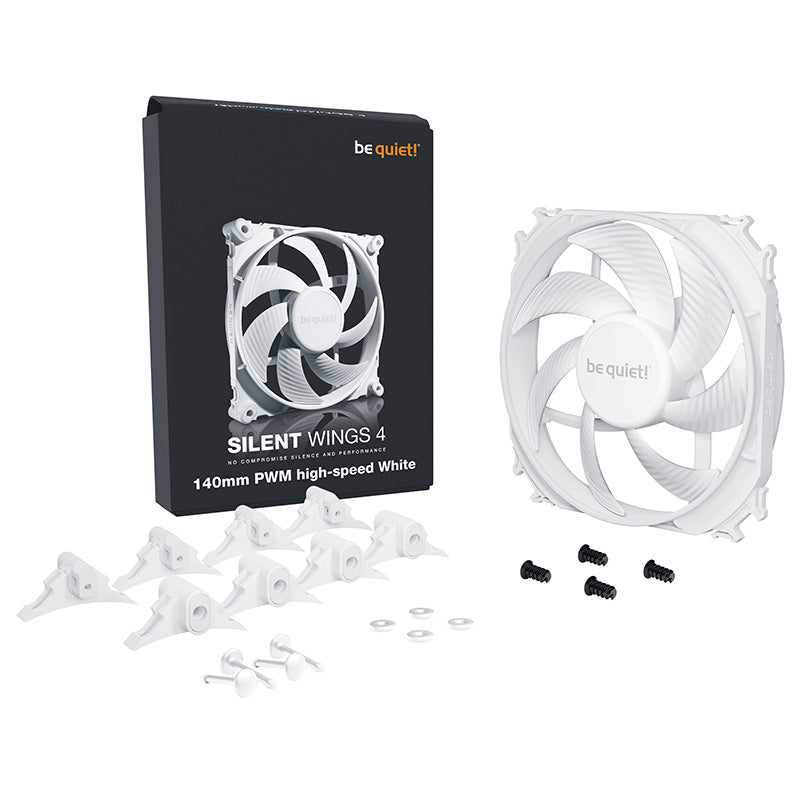

ACCESSORIES |
|
Screws |
4 |
Push pins |
4 |
hard plastic washer |
4 |
Others |
Rubber & hard plastic mountings |
SAFETY CERTIFICATION |
|
Approvals |
CE / UL / UKCA / TÜV |
ENVIRONMENTAL DIRECTIVES |
|
RoHS |
✓ |
WEEE |
✓ |
Triman |
✓ |
