Description
SPECIFICATIONS:
MECHANICAL |
|
Dimension (W×H×D) (mm) |
462×76×93 mm |
Net Weight |
1.0kg |
Gross Weight |
2.3kg |
ENVIRONMENT |
|
Operating Temperature |
0°C ~ 40°C |
Storage Temperature |
-20°C ~ 60°C |
Operating Humidity |
10% ~ 90% RH Non-Condensing |
Storage Humidity |
10% ~ 90% RH Non-Condensing |
SOFTWARE |
|
Screen Sharing |
InstaShare 2 |
File Management |
AMS Files |
UI |
BenQ UNI Launcher |
Account Management |
AMS Account |
Device Management |
DMS |
Camera Adjustment |
Camera Settings |
Video Conference |
TeamViewer Meeting |
Voice Assistant |
Saffi |
Browser |
Firefox |
ACCESSORY |
|
Remote Controller |
x1 |
Adaptor / Plug |
x5 (US/EU/AU/KR/UK) |
HDMI cable |
x1 (1.5m) |
Type C to USB cable |
x1 (3m) |
Camera cover |
x1 |
QSG |
x1 |
CAMERA |
|
Resolution |
H.264/MJPG: 3840×2160 / 2560×1440 / 1920×1080 / 1280×720 / 1024x576 / 960×540 / 800×600 / 640×480 / 640×360 / 480×270 / 352×288 / 320×240 / 320×180 / 176×144 / 160×120 / 160×90 YUV2: 640×480 / 640×360 / 480×270 / 352×288 / 320×240 / 320×180 / 176×144 / 160×120 / 160×90 |
Field of view |
DFOV: 120° |
Focus |
Fixed / 0.5m |
Auto framing |
Yes |
Pixel |
12 MP |
Digital Zoom |
x5 |
Manual Adjustable Angle |
±15° |
Pre-sets |
3 |
MICROPHONE |
|
Number |
6 - array |
Pickup Distance |
8m |
Voice Localization |
Yes |
Voice Optimization |
Beamforming / Noise reduction / Echo cancellation / Auto gain control |
Speaker |
|
Output Power |
8W x1 |
Automatic Level Control (ALC) |
Yes |
System |
|
Built-in OS |
Android 9.0 |
Compatible OS |
Win10 / Win8 / Win7 / Win XP / Linux OS /Mac OS / Chrome OS |
Memory / Storage |
4GB / 16GB |
CONNECTIVITY |
|

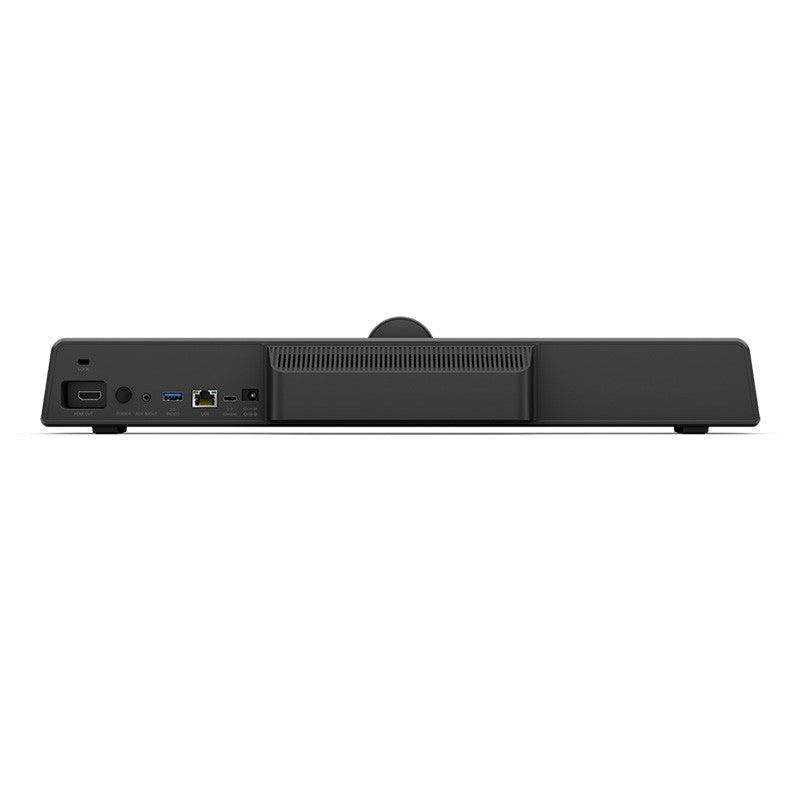

IO Port |
USB 2.0 (Type C, device port only) x1, USB 3.0 (Type A), HDMI out x1 RJ45 (10M/100M) x1, AUX (mic in / line out) |
Ethernet LAN |
10 / 100 Mbps (Android) |
POWER |
|
Power Requirements |
100-240Vac, 50/60Hz |
Power Consumption (max/standby) |
36W / <0.5W |
