Description

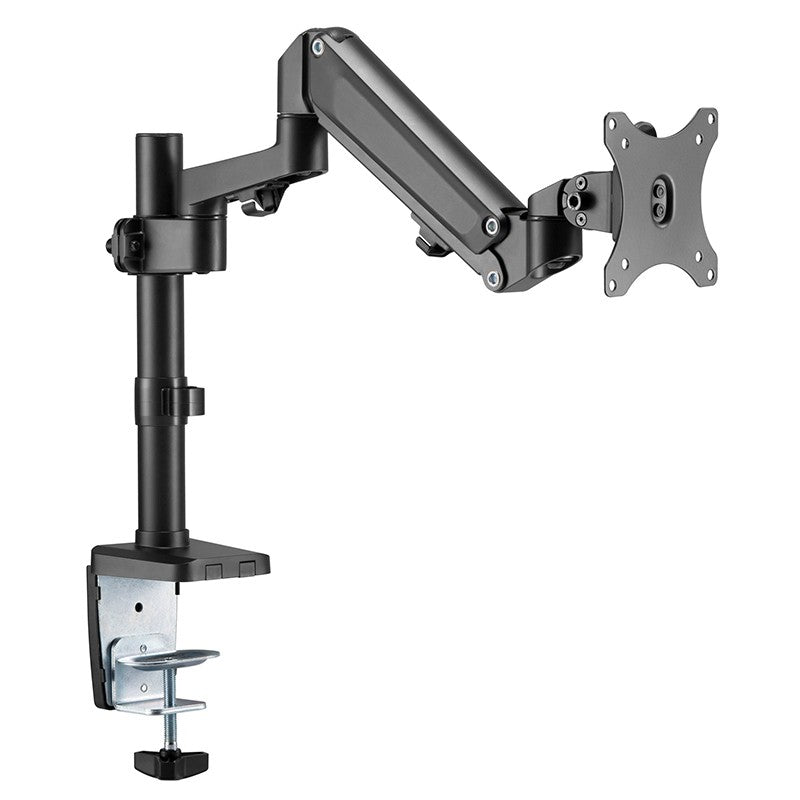

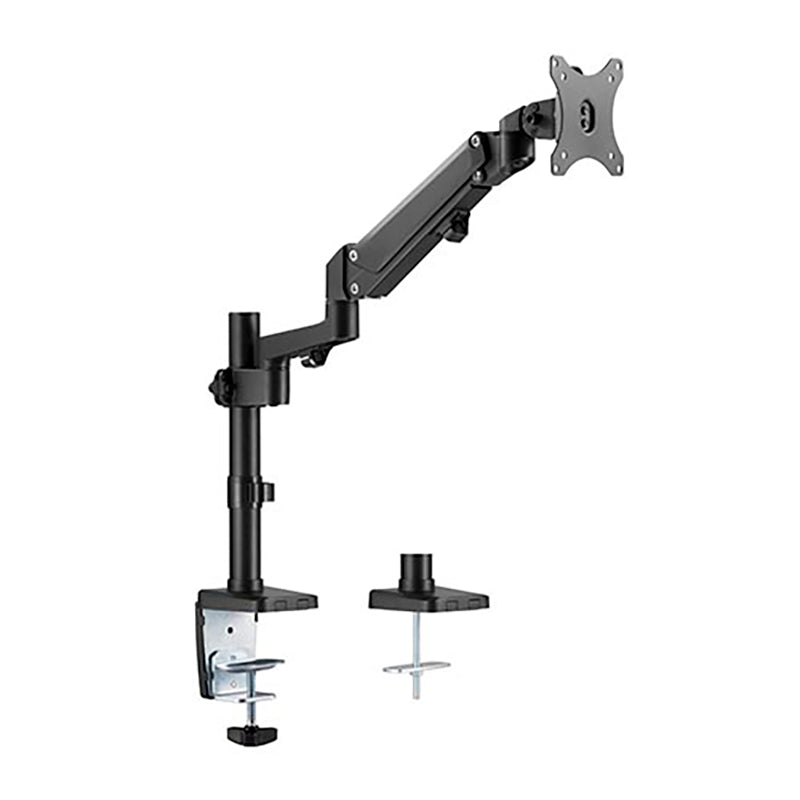

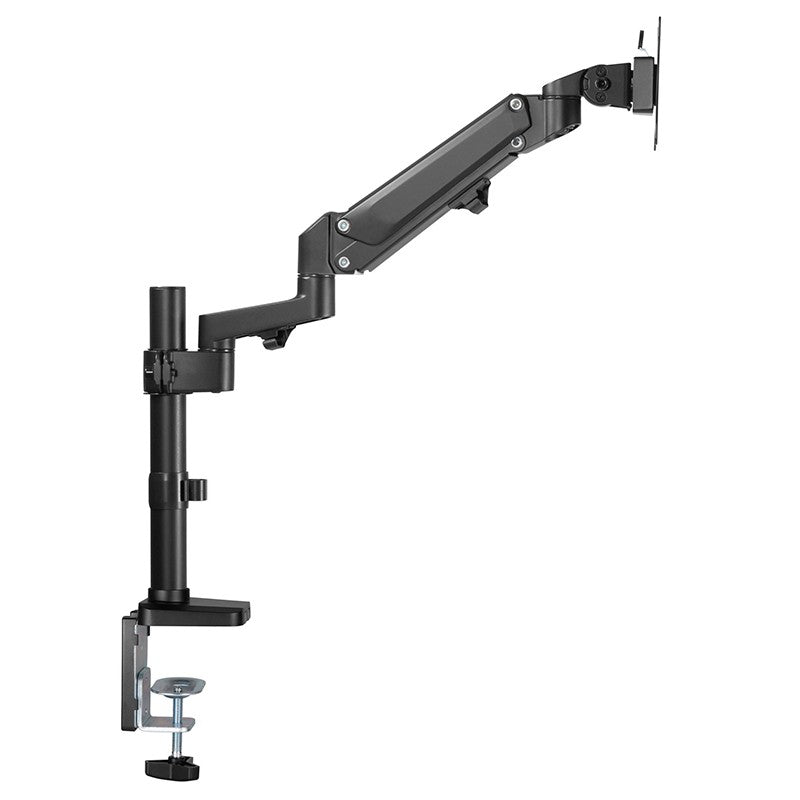

With weight capacity ranging up to 12kg/26.4lbs, the LDT47-C012N heavy-duty gas spring monitor arm is ideal for mounting oversized monitors up to 35” to improve viewing angles. A premium gas spring mechanism offers dynamic movements including +45°~-45° tilting, +90°~-90° swivel and +90°~-90° rotating. The detachable VESA plate is designed for easy installation and removal. Built-in cable management helps to keep everything neat and organized.
Gas Spring: perfectly counterbalances the weight of your monitor
Free-Tilting Design: for multiple monitor viewing angles
Built-in Spring Tension Gauge: for perfect weight adjustments
Freely Adjusting Height: for an optimal ergonomic position
Detachable VESA Plate Design: enables easy installation
Built-in Cable Management: for an organized and neat workspace
SPECIFICATIONS:
Dimensions |
15x511x728mm (4.5"x20.1"x28.7") |
Fit Screen Size |
17"-35" |
Weight Capacity (per screen) |
2~12kg (4.4lbs~26.4lbs) |
VESA Compatible |
75x75,100x100 |
Tilt Range |
+45°~-45° |
Swivel Range |
+90°~-90° |
Screen Rotation |
+90°~-90° |
Arm Full Extension |
417mm (16.4") |
Pole Height |
318mm (12.5") |
Installation |
Grommet, Clamp |
Suggested Desktop Thickness |
Clamp：10~85mm Grommet：10~85mm (Clamp：0.39"~3.3" Grommet：0.39"~3.3") |
Quick Release VESA Plate |
Yes |
Cable Management |
Yes |
