Description

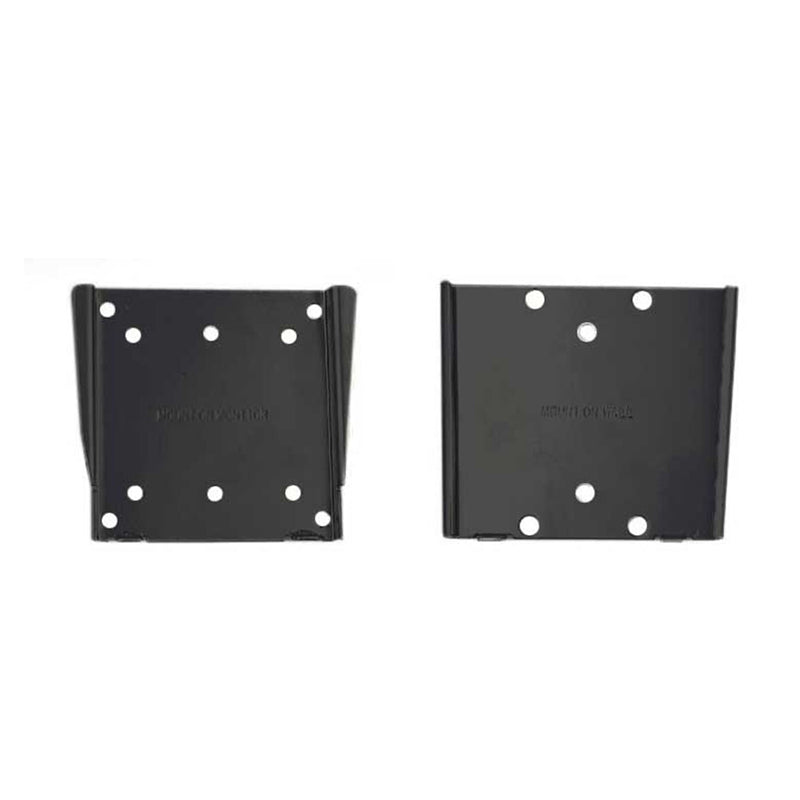

Brateck 2 Piece LCD Wall Mount Vesa
The LCD-201 Super Slim low-profile wall mount is designed to emphasize the sleek look of ultra-thin flat-panel TVs by placing them just 15mm from the wall. The two pieces design allows easy installation. It supports most 13’’-27’’ flat panel TVs up to 30kgs/66lbs. Strength has been tested for a minimum of three times its stated load capacity. VESA compatible with 50×50, 75×75 and 100×100.
Features:
Ultra-slim design
Easy Assembly: Installation is as easy as 1-2-3
SPECIFICATIONS:
Dimensions |
15x140x120mm (0.59"x5.5"x4.7") |
Fit Screen Size |
13"-27" |
Fit Curved TV |
No |
Mounting Hole Pattern |
VESA Only |
VESA Compatible |
50x50,75x75,100x100 |
Weight Capacity |
30kg (66lbs) |
Profile |
15mm (0.59") |
Installation |
Solid wall,Single Stud |
Panel Type |
Detachable Panel |
Wall Plate Type |
Fixed Wall Plate |
