Description

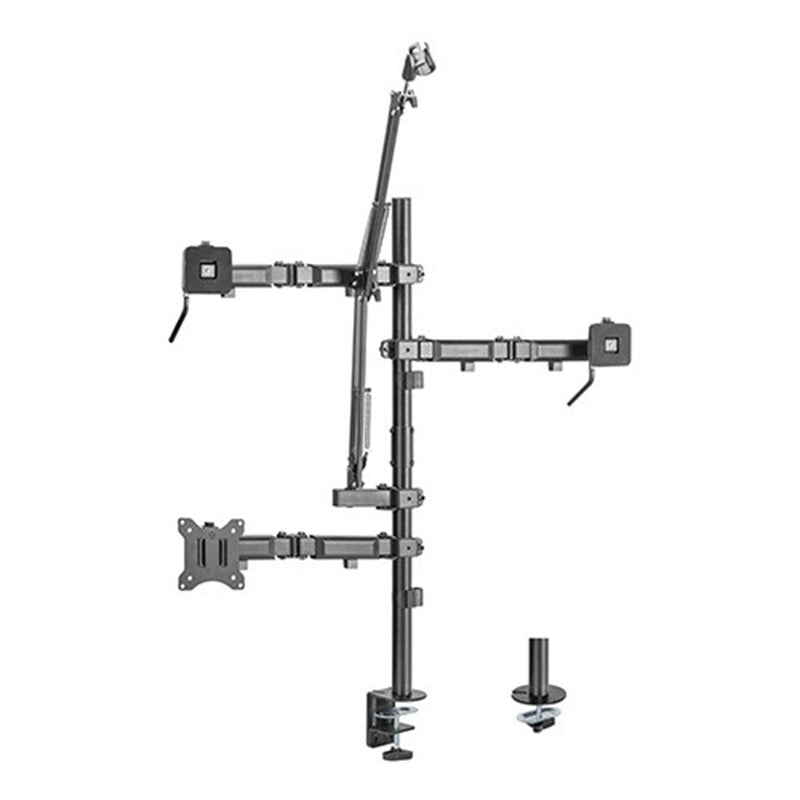

Brateck All-in-One Single-Monitor Studio Setup Desktop Mount Fix for 17in to 32in 9Kg
The MDS10-1 All-in-One Studio Setup Desktop Mount is the essential tool for YouTubers and other content creators. Using a single pole “to rule them all”, the user can create a tree of cameras, lighting, monitors, microphones and more. Made of strong steel, the pole and base confidently support all the equipment while the adjustable arms and accessories allow full range of motion. Two holders for attaching lights, cameras, ball heads or phone/tablet adapters with 1/4’’ and 3/8’’ screws. A positioning handle makes adjustments easy and without interruption during recording sessions. Two mounting options for microphones with the clamp unit are included in the package. The monitor arm fits 17″-32” screen and offer effortless tilt and swiveling to find the most comfortable and desirable viewing positions. Grommet & clamp mounts are included for installation on any table top surface.
Space-Saving Design: free up and gain additional desktop work space
High Compatibility: support most any popular devices
Full Range of Motion: live stream in total comfort
Sturdy Steel Construction: provides a solid and long-lasting performance
Cable Management: keep everything organized
SPECIFICATIONS:
Product Category |
All-In-One Studio Setup Desktop Stand |
Material |
Steel, Plastic |
Surface Finish |
Powder Coating |
Dimensions |
897x120x1000mm (35.3"x4.7"x39.4") |
Vertical Shaft Tube Height |
860mm (33.9") |
Arm Full Extension |
398mm (15.7") |
Quick Release VESA Plate |
Yes |
Cable Management |
Yes |
Installation |
Clamp, Grommet |
Weight Capacity (Microphone) |
1kg (2.2lbs) |
Microphone Holder Type |
3/8'',5/8'' |
Microphone Boom Arm Length |
640mm (25.2") |
Vertical Shaft Locking Type |
Plastic（PA ) Twist Lock |
Microphone Height Range |
680mm (26.8") |
Microphone Base Type |
Steel Base |
Fit Screen Size |
17"-32" |
Fit Curved Monitor |
Yes |
Screen Quantity |
1 |
Weight Capacity (per screen) |
9kg (19.8lbs) |
VESA Compatible |
75x75,100x100 |
Screen Tilt Range |
+70°~-70° |
Screen Swivel Range |
+90°~-90° |
Screen Rotation |
+180°~-180° |
Weight Capacity (Light) |
7kg (15.4lbs) |
Light Holder Type |
1/4'',3/8'' |
Weight Capacity (Camera) |
7kg (15.4lbs) |
Camera Holder Type |
1/4'',3/8'' |
Camera Tilt Range |
+90°~-90° |
Camera Swivel Range |
+90°~-90° |
Camera Rotation |
+180°~-180° |
