Description

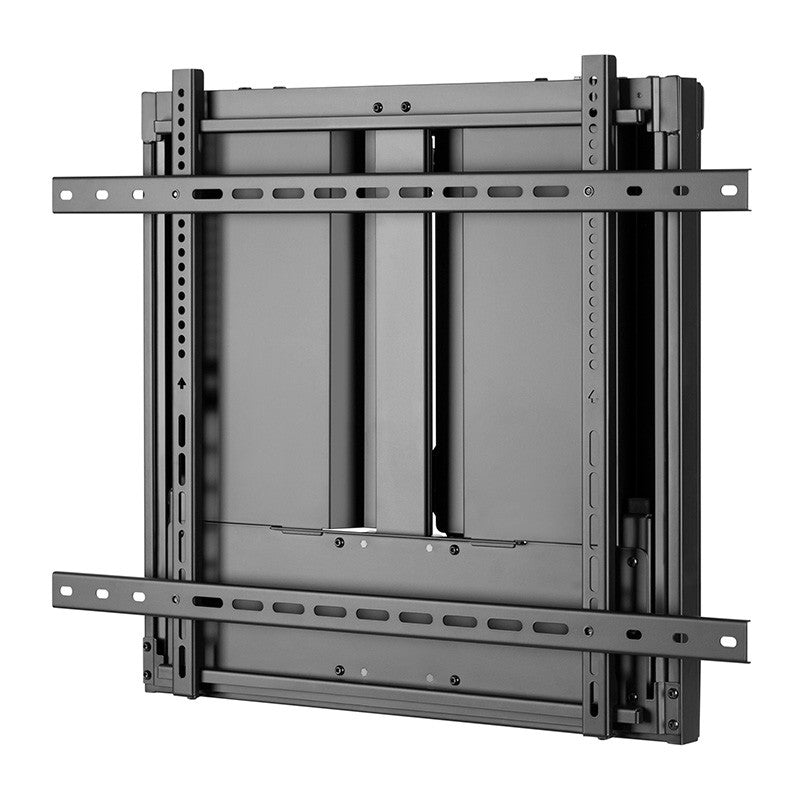

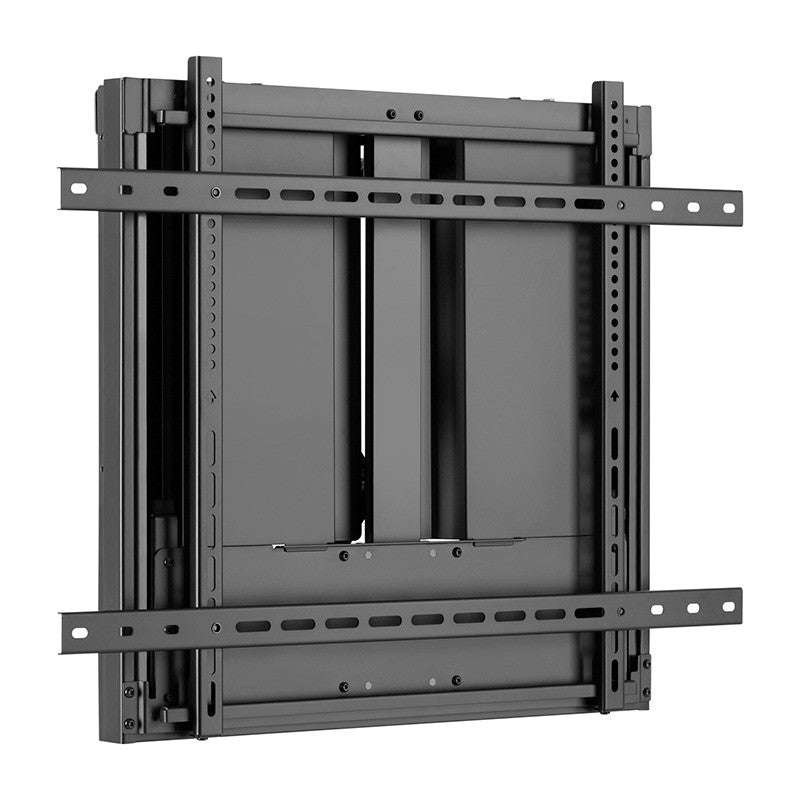

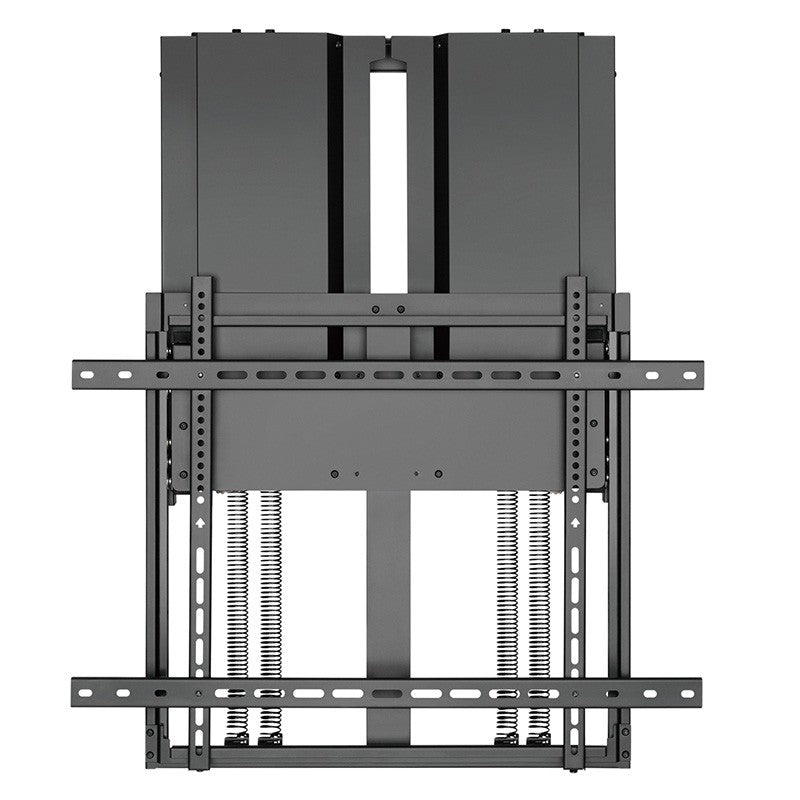

Brateck Height-Adjustable Wall Mount for Interactive Displays 70in-90in up to 60~90 kg
With a light hand touch, the HAW400-90 allows the display to be raised or lowered at any position and a compact design allows it to fit nicely behind the screen when not in use. A high-grade black powder-coated finish provides an attractive anti-scratch surface that complements any decor. With the weight balance design and multiple VESA size options, the HAW400-90 will fit most any whiteboard or display in the market today. Keyhole pattern makes installation easy and quick.
Smooth and Effortless Height Adjustment: high-low adjustment with finger touch positioning
Weight Balance Design: easily accommodates the different weights of displays
Keyhole Pattern: allows for easy installation
Compact Design: allows the mount to hide behind the screen when not in use
High Quality Powder-Coated Finish: features a stylish anti-scratch surface
SPECIFICATIONS:
Material |
Aluminum,Steel,Plastic |
Metal Sheet Thickness |
Bracket Arm THK=2mm cold-rolled sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.079" cold-rolled sheet,Wall Plate THK=0.12" pickling sheet) |
Surface Finish |
Powder Coating,Electroplating |
Colour |
Matte Black |
Dimensions |
127x840x660mm (5"x33.1"x26") |
Fit Screen Size |
70"-90" |
Fit Curved TV |
No |
VESA Compatible |
200x200,300x200,400x200,300x300,400x300,400x400,600x400,700x400,800x400,800x500,800x600 |
Max. Mounting Hole |
800x600 |
Weight Capacity |
60~90kg (132lbs~198lbs) |
Profile |
127mm (5") |
Screen Freely Tilting |
No |
TV Height Range |
400mm (15.7") |
Installation |
Solid Wall,Double Stud(406mm/450mm) |
Panel Type |
Detachable Panel |
Wall Plate Type |
Fixed Wall Plate |
AV Component Shelf |
No |
Direction Indicator |
Yes |
