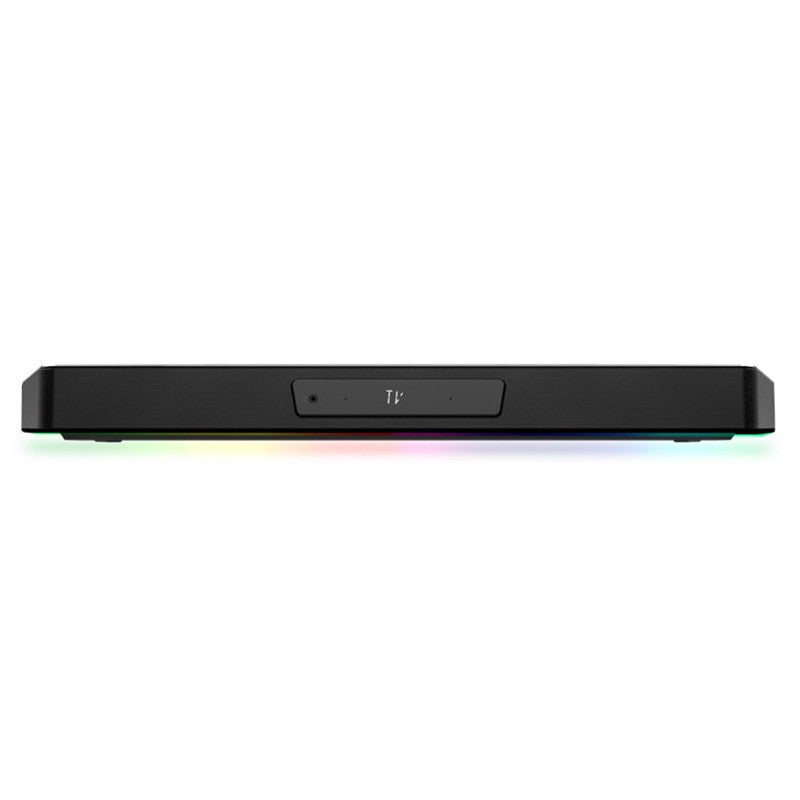

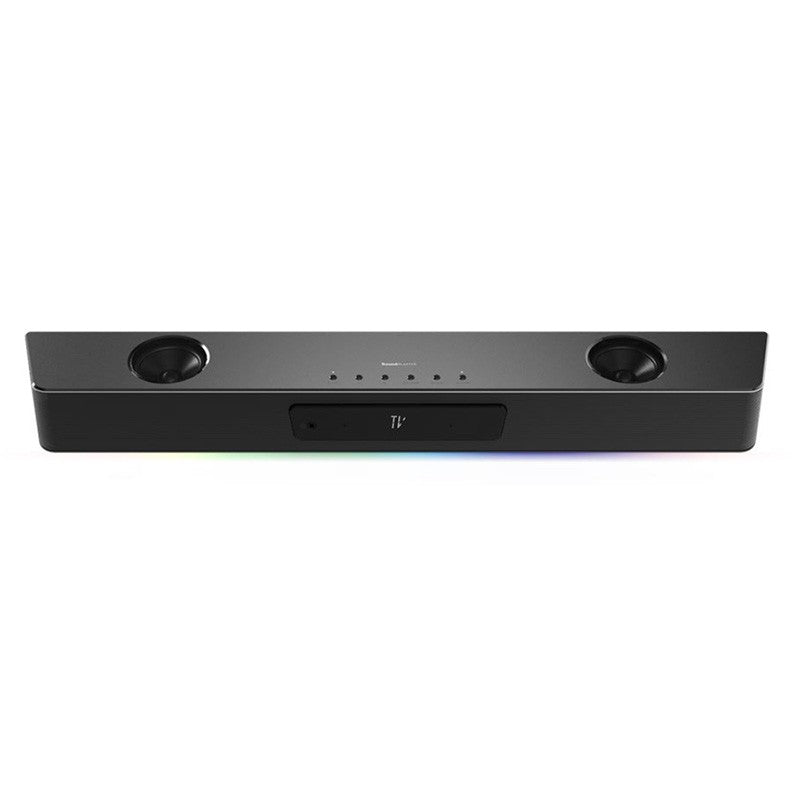

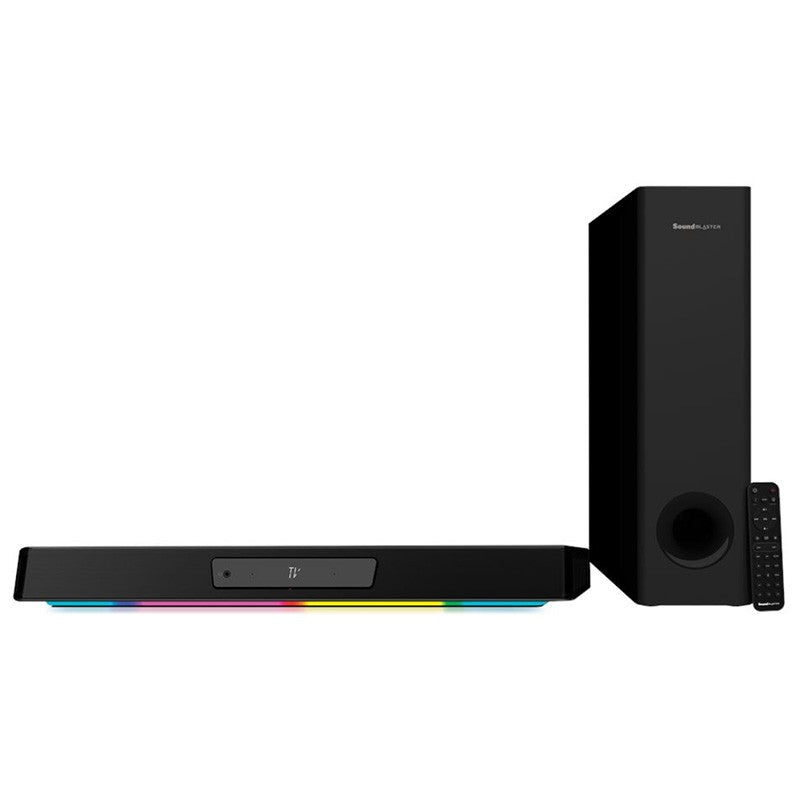

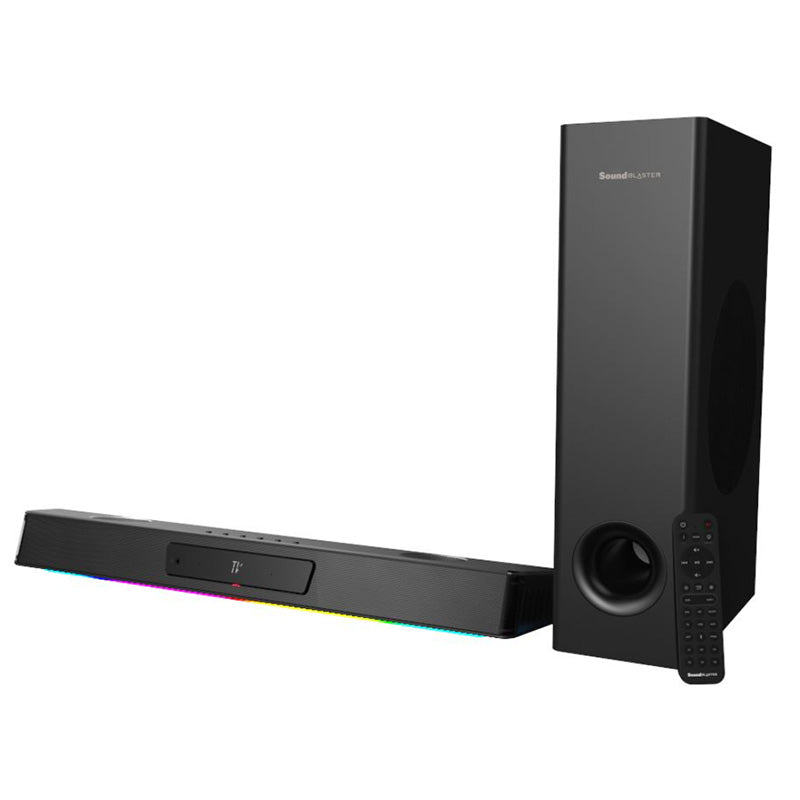

Creative Katana V2X Gaming Soundbar with Subwoofer

Connector Type

HDMI 2.1, USB-in, Optical-in (TOSLINK), Bluetooth®, Aux-in, Headset-out, SXFI-out, AC Wall Plug, DC-in, Subwoofer-out

Operating Temperature

0—40°C

Recommended Usage

Movies / Music, Gaming, Communications, Wireless Streaming

Dimensions

600 x 95 x 62 mm / 23.6 x 3.74 x 2.44 inches, 116 x 250 x 423 mm /   4.6 x 9.9 x 16.7 inches

Weight

Soundbar: 1.52 kg / 3.35 lbs, Subwoofer: 3.3 kg / 7.3 lbs

Cable Length (End-to-end)

Optical Cable: 1.5m / 4.92 ft, USB-C to USB-A Cable: 1.2m (3.94 ft), Power Cord: 1.5 m / 4.92 ft

Drivers Configuration

2 X tweeter, 2 X Midrange driver, 1 X Subwoofer driver

Channels

2.1

Frequency Response

50–20,000 Hz

Power Output

Subwoofer: 1 x 40W RMS, Soundbar: 1 x 50W RMS, Total System Power: Up to 90W RMS, Peak Power: 180W

Bluetooth® Version

5.0

Profiles

(A2DP) Wireless Stereo Bluetooth*, *Stereo Bluetooth or A2DP profile enables wireless transmission of full stereo sound to other Bluetooth   devices. To determine whether your device (notebook, PC, or mobile device) is   equipped with A2DP-enabled Bluetooth technology, refer to your device manufacturer's documentation / website for more information., (AVRCP) Audio / Video Remote Control Profile

Operating Frequency

2402–2480 MHz

Operating Range

Up to 10m / 33 ft*, *Measured in open space. Walls and structures may affect range of device.

Wireless Codecs

SBC

Technology

CrystalVoice, Super X-Fi®, Sound Blaster Acoustic Engine, SXFI® BATTLE Mode, Scout Mode

Controls

Remote Control: Yes

Playback: Yes

Volume: Yes

Power: Yes

EQ Modes: Yes

Bass / Treble: Yes

Bluetooth Pairing: Yes

Programmable Buttons: Yes

Source Toggle: Yes

Color

Black

RGB

Up to 16.8 million colors

Supported Platforms

TV, Windows PC, Mac, PS5, PS4 Series, Xbox Series, Nintendo Switch, Mobile (via Bluetooth®)

Software

Mobile: Creative app

Mobile: SXFI App

PC / Mac: Creative app (Windows PC / Mac)

System Requirements

For Analogue Audio (Stereo):

Devices that support 3.5mm stereo to stereo connection

For Wireless Audio Streaming (Stereo):

Compatible Bluetooth devices that support the Stereo Bluetooth Profile (A2DP)

For Wireless Audio Control:

Compatible Bluetooth devices that support the Bluetooth Remote Control (AVRCP)

For 5.1 Surround Audio Playback over USB:

Windows® PC, Mac OS, PS4, PS5

For Dolby Audio 5.1 Audio Playback:

Dolby® Audio (Dolby Digital) source connected to Optical-in and HDMI-ARC

For USB Audio and High-resolution 24-bit 96kHz USB Audio Playback:

Windows® PC, Mac OS via USB Connection

For Headset Out:

Supports 3.5mm headset 4 pole output with mic

For SXFI Out:

SXFI Theatre Headphone

For Creative application:

macOS 10.15 Catalina and above, USB 2.0/3.0 port

Microsoft® Windows® 10 32-bit or 64-bit, USB 2.0/3.0 port

iOS 11.0 or later ^

Android 7.0 and above ^

^Used as a remote controller for Sound Blaster Katana V2X via BLE only, does not support Bluetooth audio streaming

Package Contents

Wall Mounting Kit, Wall Mount Brackets, IR remote control, AC Plugs (Region-specific), AC Power Adapter 22V 2.7A (1.5m / 4.92 ft), Optical Cable (Toslink), USB Cable C to A cable
