SPECIFICATIONS:
|
Weight
|
Main Board : 57g / 2.01 oz, Half-Height Bracket : 12g / 0.42 oz
|
|
Dimensions
|
Main Board: 117.4 x 121 x 21.6 mm / 4.62 x 4.76 x 0.85 inches, Half-Height Bracket: 80 x 21.6 mm / 3.15 x 0.85 inches
|
|
Audio Technology
|
SmartComms Kit
|
|
Signal-to-Noise Ratio (SNR)
|
120 dB (DAC)
|
|
Direct Mode
|
Headphone (Stereo): PCM 16-bit, 44.1, 48.0, 88.2, 96.0. 192.0 kHz
Headphone (Stereo): PCM 24-bit, 44.1, 48.0, 88.2, 96.0. 192.0 kHz
Line Out (Stereo / Surround): PCM 16-bit, 44.1, 48.0, 88.2, 96.0. 192.0 kHz
Line Out (Stereo / Surround): PCM 24-bit, 44.1, 48.0, 88.2, 96.0. 192.0 kHz
Optical Out (Stereo)*: PCM 16-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz
PCM 24-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz
* Optical Out is available with DBPro daughter board upgrade
|
|
DSD Playback
|
Headphone/Line Out (Stereo): Native DSD: DSD64, DSD128, DSD256
DoP: DSD64
^ DSD Playback is available with DBPro daughter board upgrade
|
|
Recording Resolution
|
Mic-in (Mono): Mono, 16-bit, 44.1, 48.0, 88.2, 96.0 kHz
Mic-in (Mono): Mono, 24-bit, 44.1, 48.0, 88.2, 96.0 kHz
Line-in (Stereo): Stereo, 16-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz
Line-in (Stereo): Stereo, 24-bit, 44.1, 48.0, 88.2, 96.0, 192.0 kHz
|
|
Connectivity Options (Main)
|

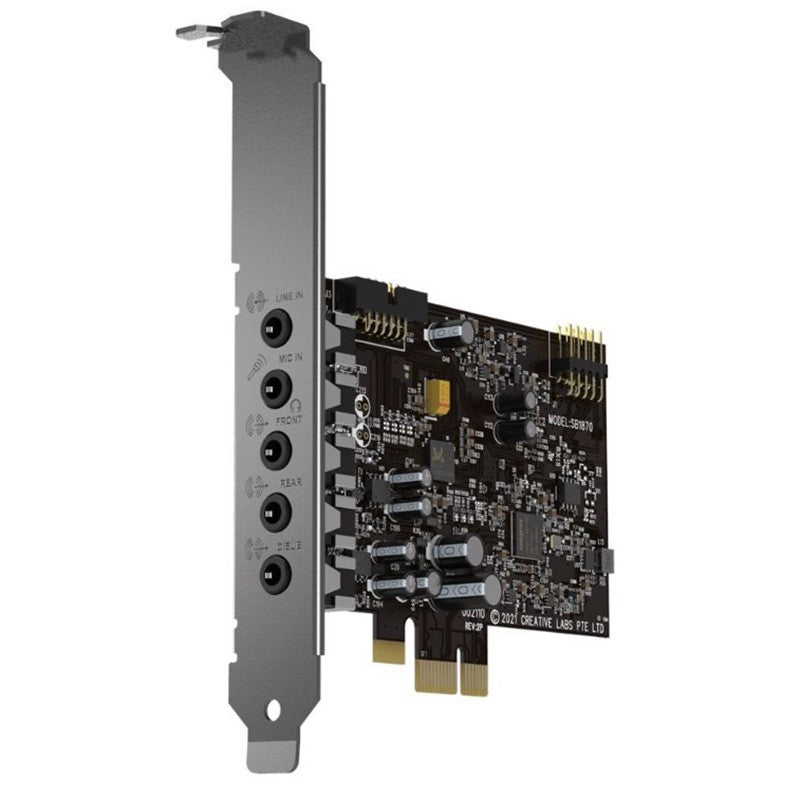

1 x ⅛″ Mic-in, 1 x ⅛″ Line-in, 1 x ⅛″ Headphone / Headset-out / Front-out (default as Headphone / Headset), 1 x ⅛″ Rear-out, 1 x ⅛″ Centre / Sub-out
|
|
Headphone Amp
|
Supported Headphone Impedance: 32–600Ω, Output Impedance: 10Ω
|
|
Max Channel Output
|
5.1 Channels
|
|
Supported Operating Systems
|
Windows® 10, Windows® 11
|
|
ASIO
|
ASIO 2.3
|
|
DAC
|
THD+N: ≤0.004%
|
|
Recommended Usage
|
Home Entertainment
|
|
System Requirements
|
Windows® OS
Intel® Core™i3 or AMD® equivalent processor
Intel, AMD, or 100% compatible motherboard
Microsoft® Windows 10 32 / 64-bit or higher
>4 GB RAM
>4 GB of free hard disk space
Available PCIe slot
|
|
Package Contents
|

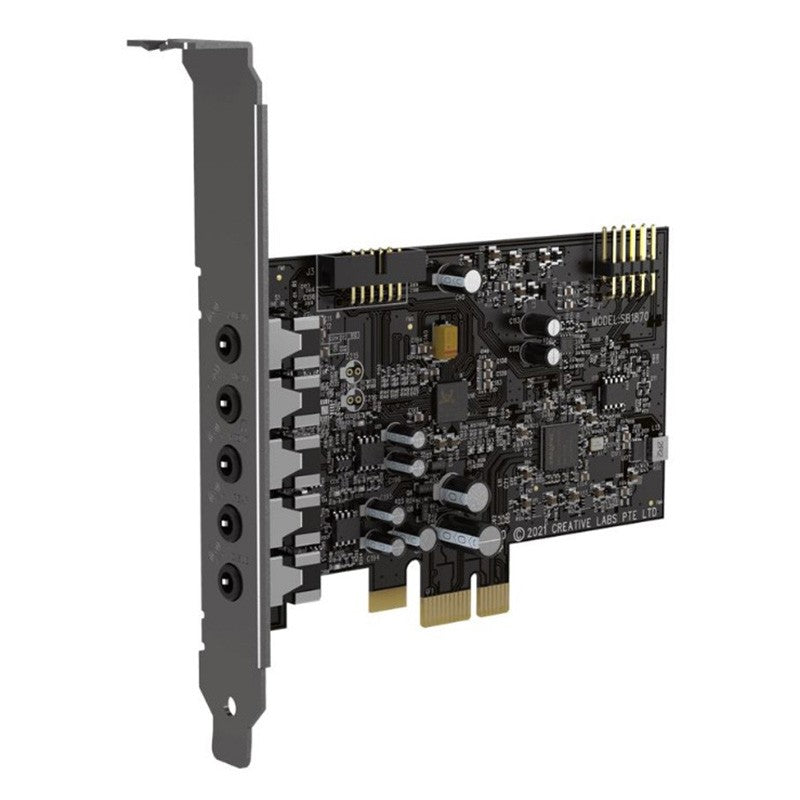

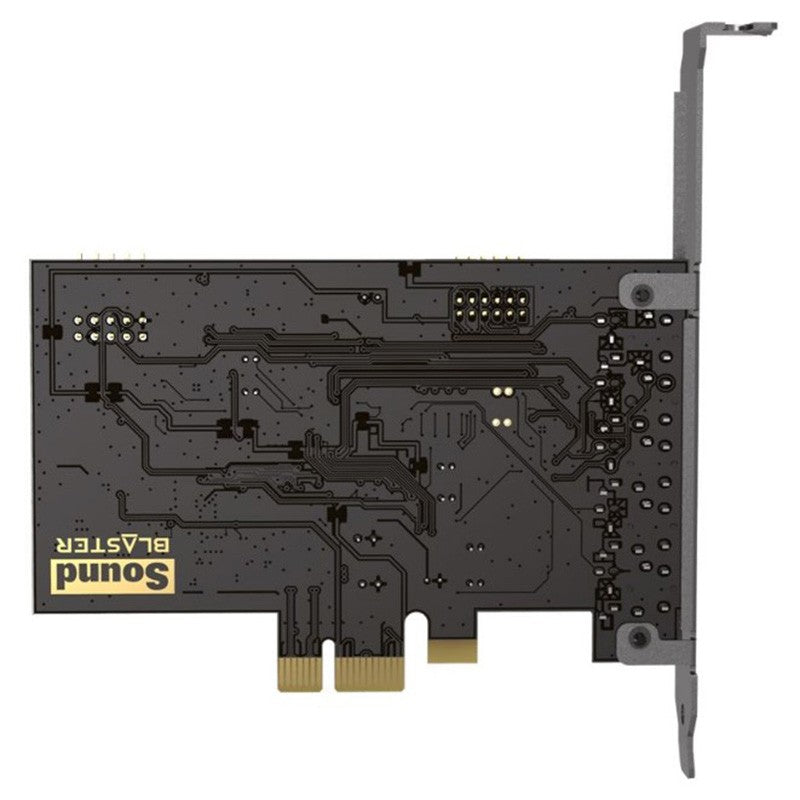

Sound Blaster Audigy Fx V2 Sound Card

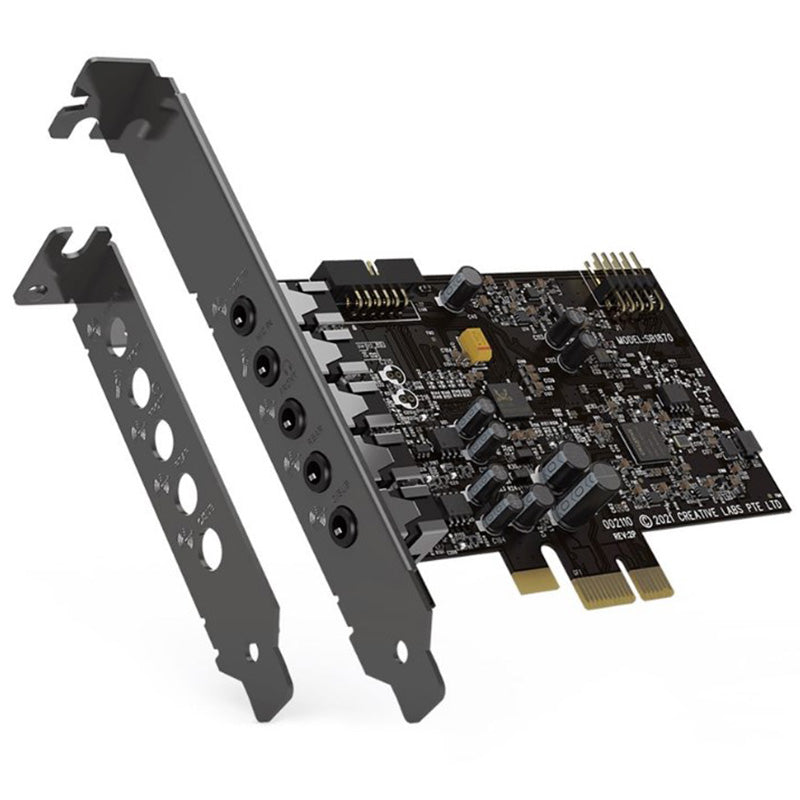

Half-height bracket (Full height bracket mounted on board)
Quick Start Leaflet
Warranty Leaflets
SmartComms Kit Leaflet
|
|
