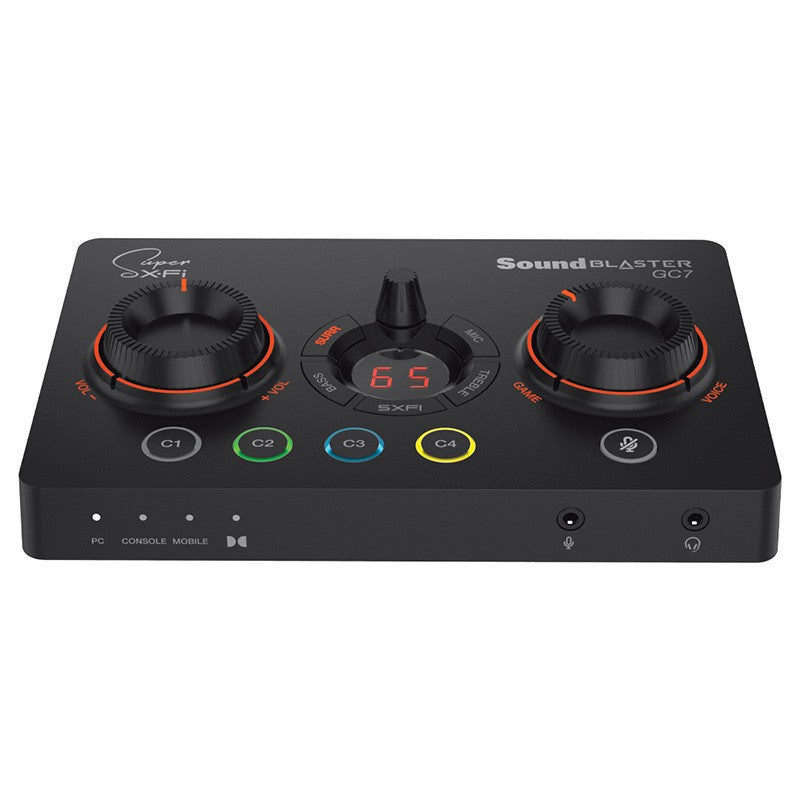

Creative Sound Blaster GC7 External USB DAC

Bluetooth Low Energy (BLE)

Yes ( Mobile Creative app support, Super X-Fi Profile Transfer and OTA Firmware upgrades)

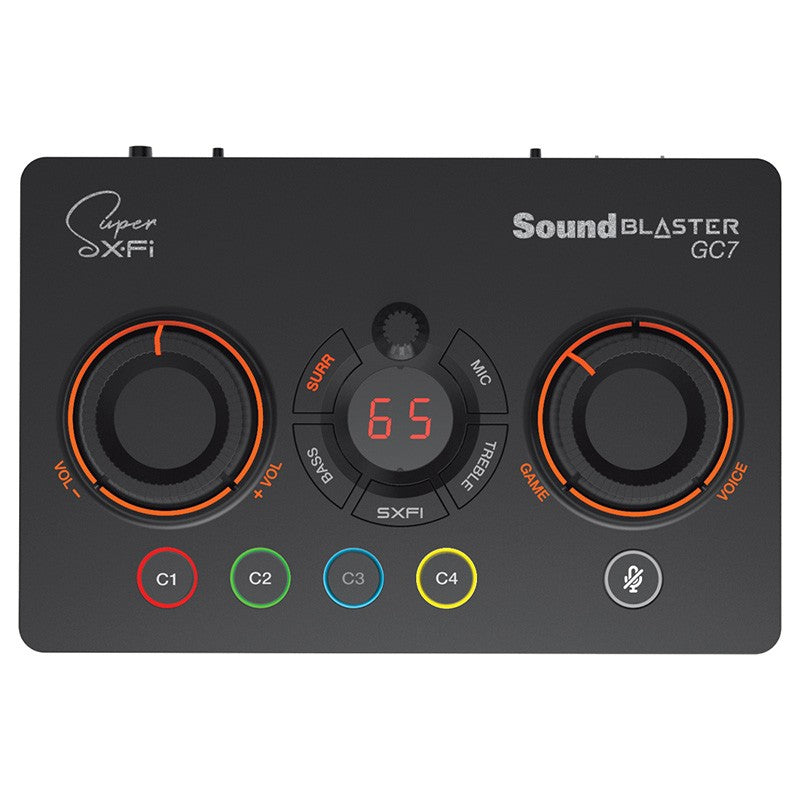

Controls

Master volume dial, GameVoice Mix dial, SXFI button, Surround button, Bass button, Treble button, Mic button, Rotary dial, Mic mute / unmute button, Power button, Platform mode switch, Headphone gain switch, 4 Reassignable C1-C4 buttons

Weight

280g

Dimensions

47 x 114 x 173 mm

Dynamic Range (DNR)

116 dB

Audio Technology

X-Fi, SB-Axx1™, Super X-Fi Ultra DSP

Max. Playback Quality

DSP Mode: PCM 16 / 24-bit 48.0, 96.0kHz, 192 kHz, SPDIF Output: PCM 16 / 24-bit, 48.0 kHz

Max. Recording Quality

Line-in: 16/24-bit, 48.0, 96.0, 192.0 kHz

Mic-in:16/24-bit / 48.0, 96.0, 192,0 kHz

Optical-in: 16 / 24-bit 48.0, 96.0, 192.0 kHz

SPDIF Input: 16 / 24-bit, 48.0, 96.0, 192 kHz

SPDIF passthrough: 16 / 24-bit, 48.0, 96.0, 192 kHz

Recording Resolution

Mic-in: 16 / 24-bit 48.0, 96.0, 192.0 kHz

Optical In: 16 / 24-bit 48.0, 96.0, 192.0 kHz

Line-in: 16 / 24-bit 48.0, 96.0, 192.0 kHz

SPDIF Input: 16 / 24-bit, 48.0, 96.0, 192 kHz

SPDIF passthrough: 16 / 24-bit, 48.0, 96.0, 192 kHz

Platform

USB 2.0, USB 3.0

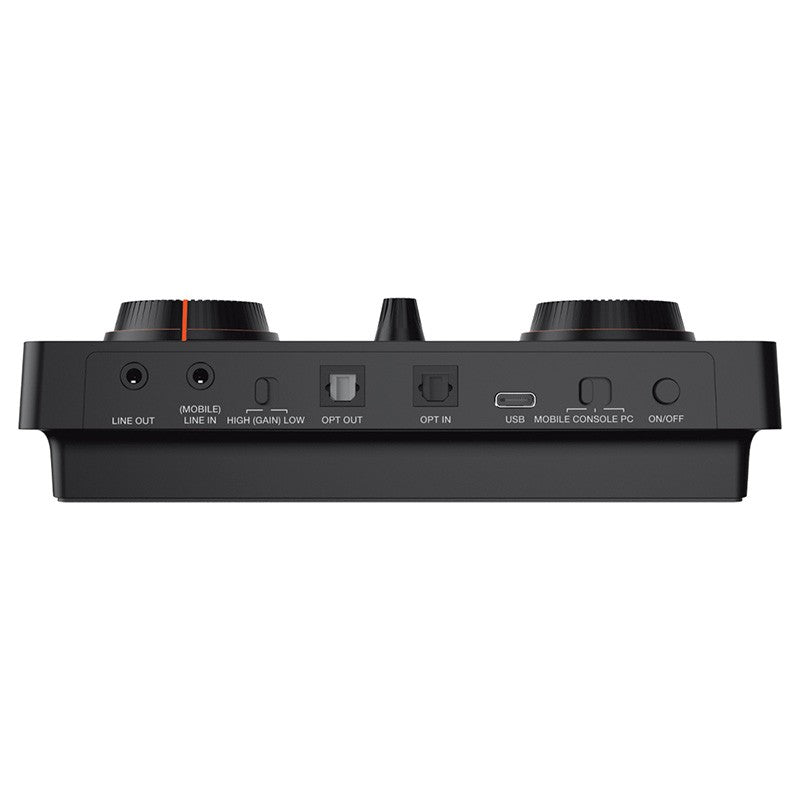

Connectivity Options (Main)

1 x 1/8″ Ext. Mic-in Jack, 1 x 1/8″ Line In / Mobile, 1 x 1/8″ Line Out, 1 x 1/8″ 4-Pole Combo Jack, 1 x SPDIF In, 1 x SPDIF Out, 1 x Type-C port for PC / Mac / Consoles

Headphone Amp

32–300Ω, Output Impedance: 10Ω

Max Channel Output

Stereo

Audio Technologies

CrystalVoice

Supported Operating Systems

Windows® 10, Windows® 11

Included Accessories

US TOSLINK Cable, USB-C to USB-A Cable, 4-pole 3.5 mm AUX Cable

DAC

S/N (Noise Gate Enabled) 125 dB (A-weighted), THD+N: ~0.0005%

ADC

Dynamic Range: 114dB (A-weighted), THD+N: 0.0006%

Power

USB 2.0 / 3.0, USB Bus Powered

Recommended Usage

Gaming

System Requirements

Windows® OS

Intel® Core™i3 or AMD® Ryzen equivalent processor

Intel, AMD or 100% compatible motherboard

Microsoft® Windows 10 32 / 64 bit or higher

1 GB RAM

>600 MB of free hard disk space

USB 2.0 / USB 3.0 port

Mac® OS

macOS 10.15 Catalina or higher

Supports Intel-based and Apple CPU chipsets

1 GB RAM

USB 2.0 / USB 3.0 port

PS4

Firmware Ver 5.0 or later

Available USB port

Nintendo Switch

Switch OS 5.0 or later

Available 3.5 mm headphone port on console

Available USB port (in docking mode)

Voice communications supported when connected via 3.5 mm port and with Bluetooth to Android and iOS Nintendo Switch Online app or VOIP client

Package Contents

1x Sound Blaster GC7

1x USB-C to USB-A Cable

1x Optical Cable

1x 3.5 mm AUX-in Cable
