Description
SPECIFICATIONS:
Weight |
384g / 13.55 oz |
Dimensions |
130.5 mm x 130.5 mm x 40.6 mm (5.14 x 5.14 x 1.60 inches) |
Dynamic Range (DNR) |
114 dB |
Audio Technology |
Sound Blaster Acoustic Engine, Super X-Fi |
Max. Playback Quality |
Sampling Rate (Playback) : Direct Mode: Playback Resolution (Optical Out): PCM 16/24-bit / 48.0, 96.0, 192.0 kHz Dolby Digital Live: 16-bit, 48.0 kHz Playback Resolution (Stereo): PCM 16/24-bit / 48.0, 96.0, 192.0 kHz Surround 7.1: PCM 16/24-bit / 48.0, 96.0 kHz |
Max. Recording Quality |
Mic-in: 16/24-bit / 48.0, 96.0 kHz, Line-in: 16/24-bit / 48.0, 96.0 kHz, Optical-in: 16/24-bit / 48.0, 96.0 kHz |
Recording Resolution |
Mic-in: 16 / 24-bit / 48.0, 96.0 kHz Line-in: 16 / 24-bit / 48.0, 96.0 kHz Optical In: 16 / 24-bit / 48.0, 96.0 kHz |
Connectivity Options (Main) |

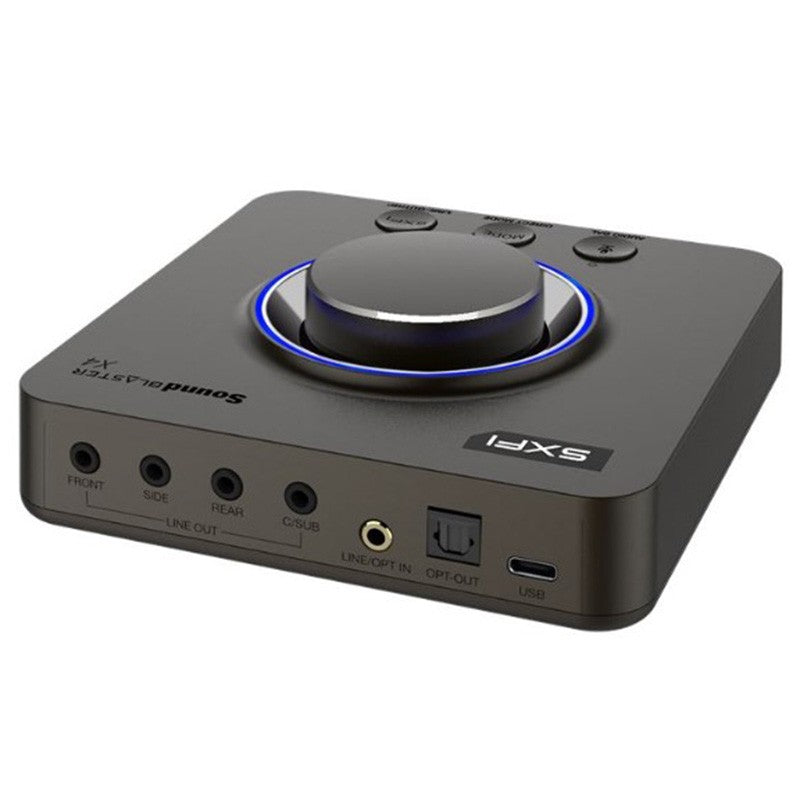

1 x TOSLINK Optical Out, 1 x ⅛″ Rear Out, 1 x ⅛″ Centre / Sub Out, 1 x 1/8″ Headphone / Headset Jack, 1 x 1/8″ Ext. Mic-in Jack, 1 x ⅛″ Front-out, 1 x ⅛″ Side Out Jack, 1 x USB-C port for PC / Mac, 1 x ⅛″ Optical / Line-in Combo Jack |
Headphone Amp |
Supported Headphone Impedance: 32–600Ω, High Gain: 150–600Ω (2.3V RMS @ 150Ω, 2.9V RMS @ 600Ω), Output Impedance: 10Ω, Low Gain: 32–149Ω (1.2V RMS @ 32Ω) |
Audio Technologies |
CrystalVoice Scout Mode |
Supported Operating Systems |
Windows® 10 Ver 1703, macOS 10.15 and above, Windows® 11 |
Included Accessories |
Optical Cable (1m / 3.28 ft), USB-A to USB-C Cable (2m / 6.56 ft) |
DAC |
Dynamic Range (Stereo): 114 dB, THD+N (Stereo): 0.001% |
ADC |
Dynamic Range: 104 dB, THD+N: 0.0017% |
Power |
USB Bus Powered, USB-C |
Recommended Usage |
Home Entertainment |
System Requirements |
Windows® OS Intel® Core™i3 or AMD® equivalent processor Intel, AMD, or 100% compatible motherboard Microsoft® Windows 11, Windows 10 32 / 64-bit Ver 1703 or higher > 4 GB RAM > 4 GB of free hard disk space USB 2.0 / USB 3.0 port
macOS macOS X® 10.15 or higher > 4 GB RAM USB 2.0 / USB 3.0 port
PS5 Firmware Version 20.02-2.26.00.00-00.00.00.0.1 or later Available USB port Audio Balance feature requires a HDMI to Optical converter (not included)
PS4 Firmware Version 5.0 or later Available USB port Available Optical-out port (for Audio Balance)
Nintendo Switch Switch OS 5.0 or later Available 3.5 mm headphone port Available USB port (in docking mode) External USB Power (not included) Voice communication is title-dependent
Android^ Android OS Version 8.0 or later Device must have built-in Bluetooth Low Energy (BLE) support
iOS^ iOS Version 12.0 or later Device must have built-in Bluetooth Low Energy (BLE) support ^Used as a remote controller for Sound Blaster X4 on PS5 / PS4 / Nintendo Switch only, does not support Bluetooth audio streaming |
Package Contents |
Sound Blaster X4 USB-A to USB-C Cable (2m / 6.56 ft) Optical Cable (1m / 3.28 ft) SmartComms Kit Leaflet Quick Start Guide and Leaflets Warranty Leaflets |
