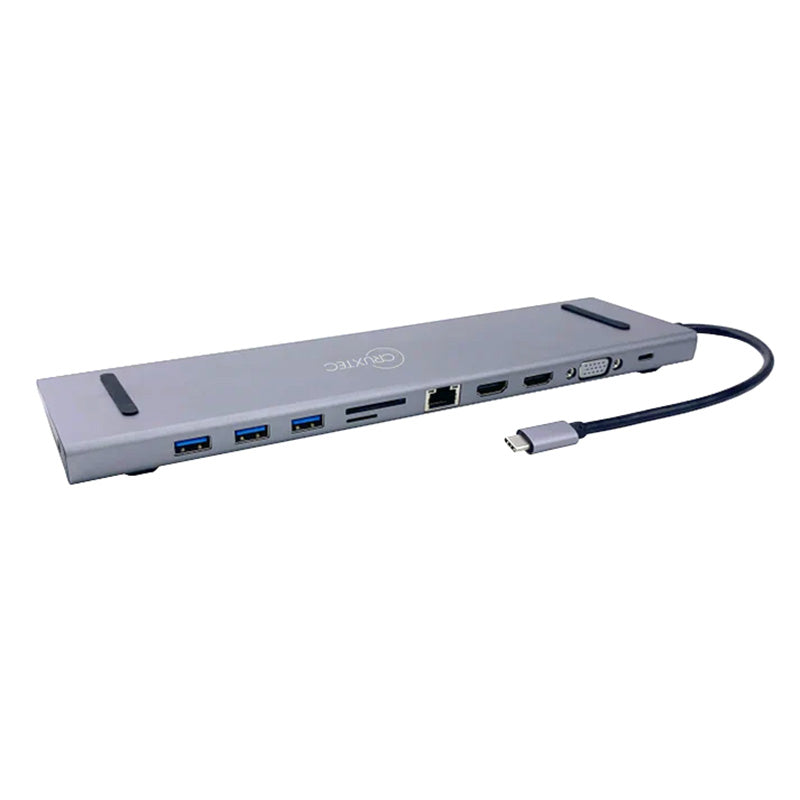

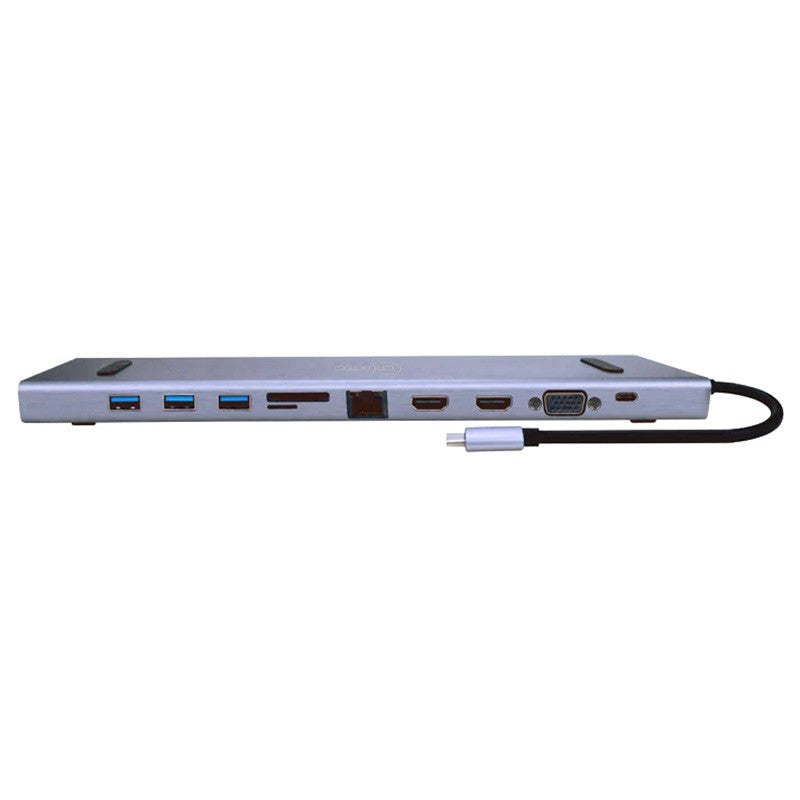

Cruxtec CH02-SG 11 in 1 USB-C 100W Power Delivery Triple Monitor Docking Station

Output

2 * HDMI Female / 1* VGA Female / 3 * USB-A ( USB3.1 GEN1 5GBPS ) / 1* RJ45 Gigabit Ethernet (10/100/1000Mbps) / 1 * SD/micro SD Card Reader / 1 * 3.5mm audio output Jack

Power Transmission

1 * USB-C PD3.0 Charging port - up to 100W

Resolution

HDMI output up to  4K/30Hz, VGA output up to 1080p/60Hz

MST Configuration

Dual Display (HDMI+HDMI) 1080P/60Hz, Dual Display (HDMI+VGA) 1080P/60Hz, Triple Display(HDMI*2+VGA) 1080P/60Hz*2+800*600

Material

Aluminium+ABS

Cable Length

15cm

Cable Diameter

4.7mm

Chipsets

RTS5411+LT8712EXI+GL850G+GL823K+RTL8153

Platforms

Windows / Mac OS

Shield Type

Aluminium foil shield

Colour

Space grey
